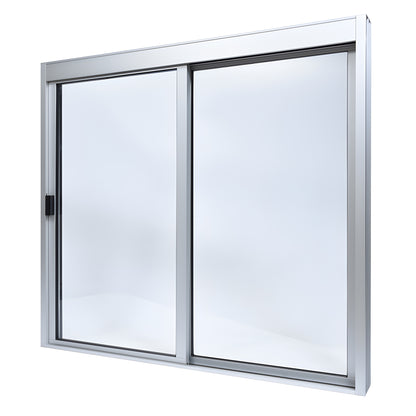

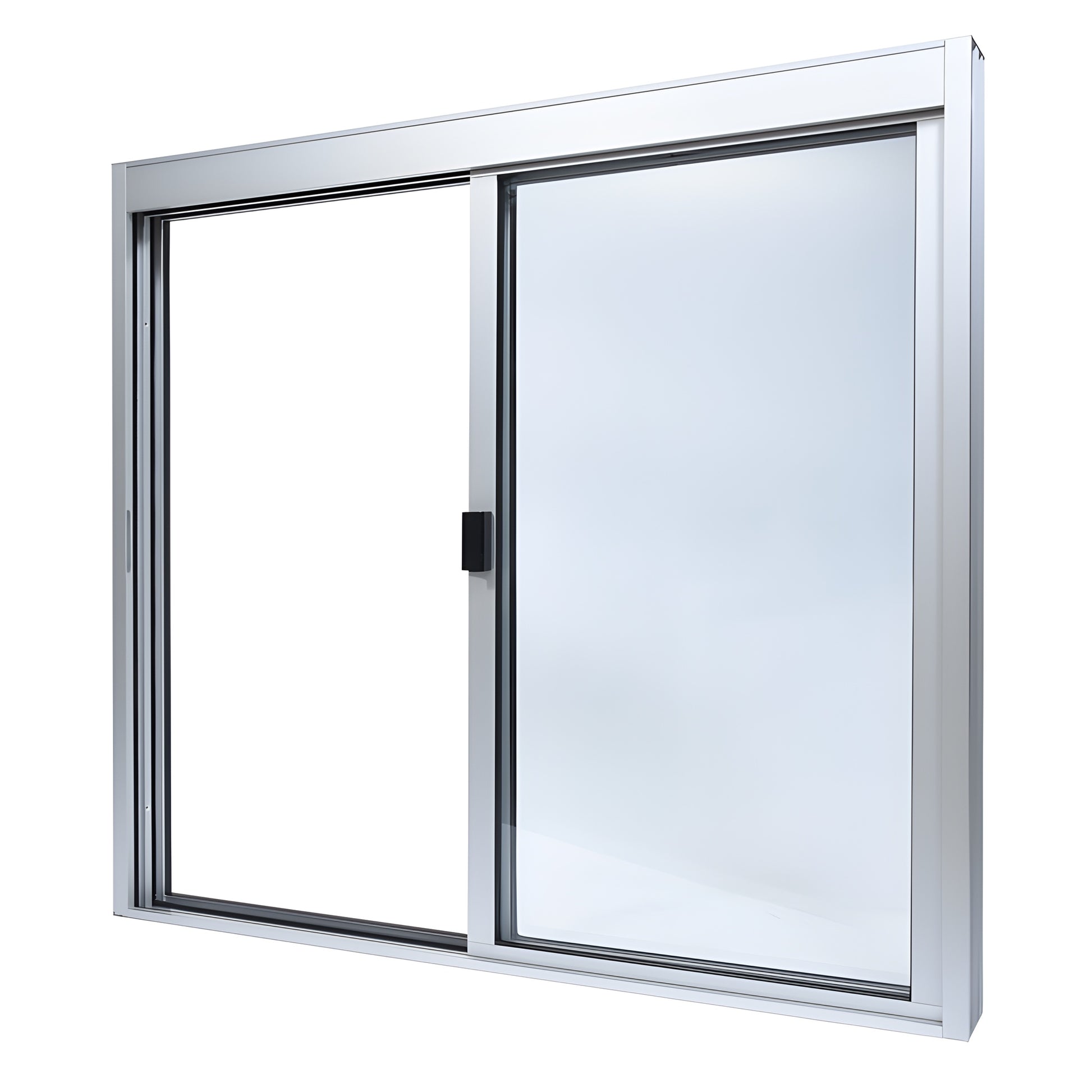

• DW4848X0GA satin anodized 48x48 XO sliding service window, aluminum frame with 1/4" clear tempered glass.
  • DW4848X0GA satin anodized 48x48 XO sliding service window, aluminum frame with 1/4" clear tempered glass.
  • DW4848X0GA satin anodized 48x48 XO sliding service window, aluminum frame with 1/4" clear tempered glass.

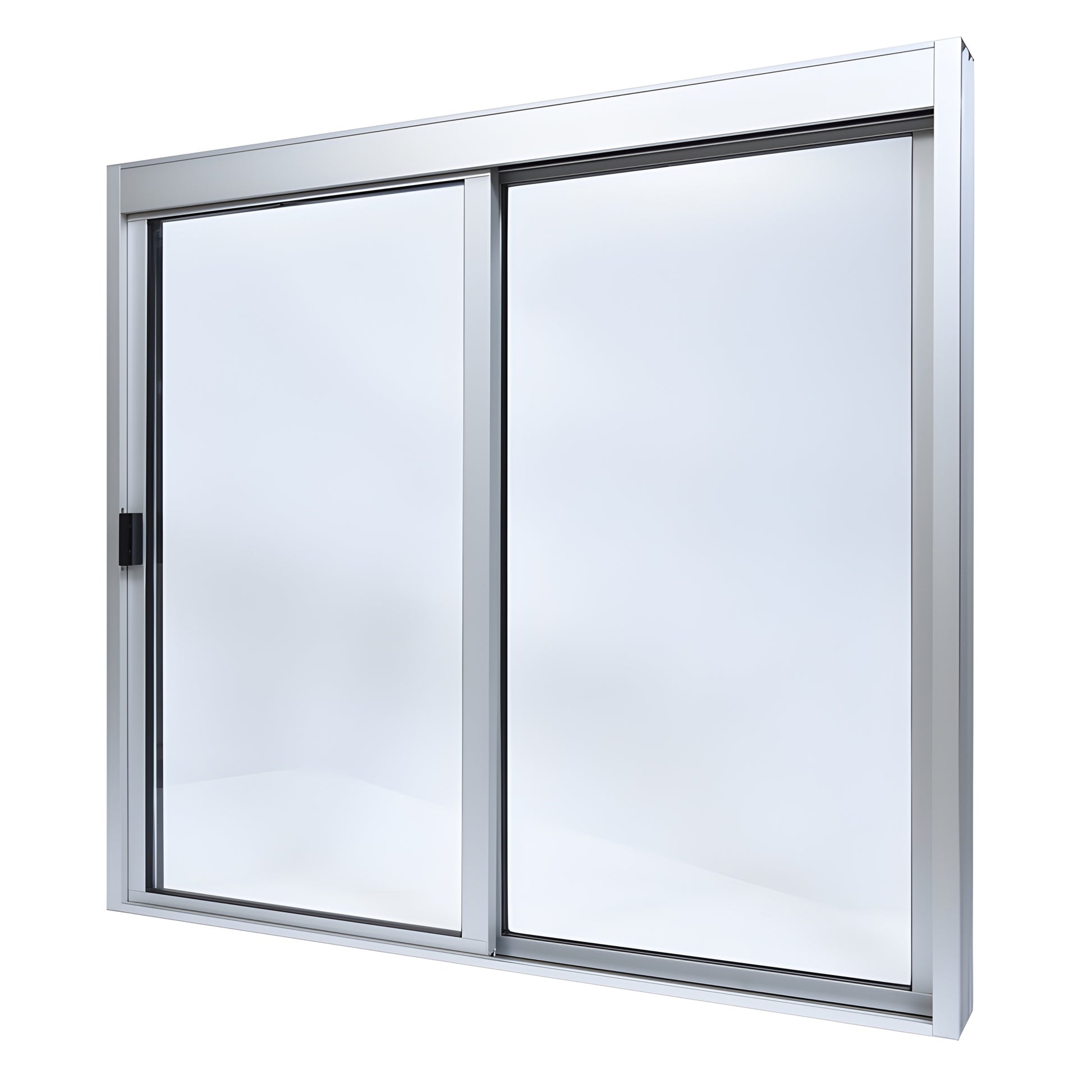

  • DW4848X0GA satin anodized 48x48 XO sliding service window, aluminum frame with 1/4" clear tempered glass.
1 4

CRL

CRL Satin Anodized Deluxe Manual Service Window, Glazed, Bottom Track

CRL Satin Anodized Deluxe Manual Service Window, Glazed, Bottom Track

$2,286.60 CAD
$2,286.60 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DW4848X0GA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
XO
Finish/Color
Satin Anodized
Frame Depth
4 in. (101.6 mm)
Frame Width
2-5/8 in. (66.7 mm)
Glazing Type
1/4 in. (6 mm) Clear Tempered Glass
Height
47-3/4 in. (1174.7 mm)
Screen
No
Usage
Interior,Exterior
Width
47-1/2 in. (1181.1 mm)

Overview

  • SKU: DW4848X0GA
  • Ships Factory Glazed with 1/4" Clear Tempered Glass

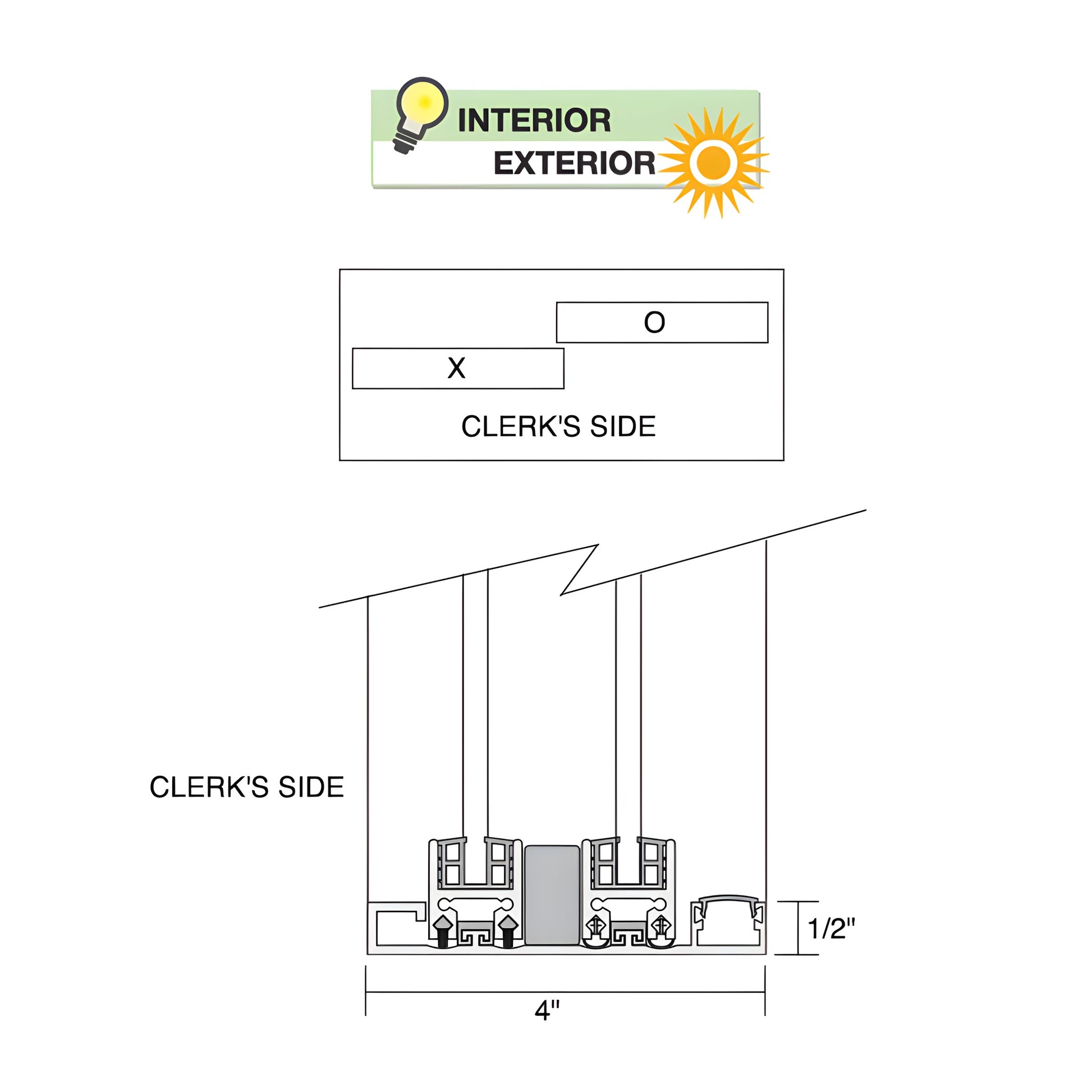

  • XO Clerkside configuration (X = Sliding Panel, O = Fixed Panel)
  • Popular 47-1/2" W x 47-3/4" H frame fits 48" x 48" opening
  • Manual open / manual close operation with full bottom track
  • Optional keyed lock assembly: DWKEYLOCK (sold separately)
  • Clerk-side view; fits 48" W x 48" H opening

CRL Standard Size Manual Deluxe Service Windows ship fully assembled and are available factory glazed or ready to glaze. Built for heavy-duty commercial applications—such as drive-thru, walk-up service counters, concession stands, and interior secure transaction windows—these 48x48 service windows offer enhanced security and performance with durable aluminum framing and clear tempered glass.


Available finishes: Satin Anodized or Duranodic Bronze. Bottom options: half-track (clear passage across counter) or stainless steel step-sill with water-dam for exterior installations. A concealed hydraulic header powers the self-closing function on select models. CRL also quotes custom versions for specialized commercial and institutional openings.


Product Warning:

Heavy duty service windows; not designed to be the primary building seal in severe weather conditions.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are actual or close representations; colors may vary based on your monitor settings.


Order DW4848X0GA today to get a heavy-duty 48x48 manual deluxe service window ready for commercial installation.
