CRL Satin Anodized Self-Closing Glazed Service Window w/ Bottom Track
CRL Satin Anodized Self-Closing Glazed Service Window w/ Bottom Track
Regular price
$4,062.20 CAD
Regular price
Sale price
$4,062.20 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCDW48440XGA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
OX
Finish/Color
Satin Anodized
Frame Depth
4-1/2 in. (114.3 mm)
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
1/4" Clear Tempered Glass
Handle Type
Self Latching
Material
Aluminum
Screen
No
Security Feature

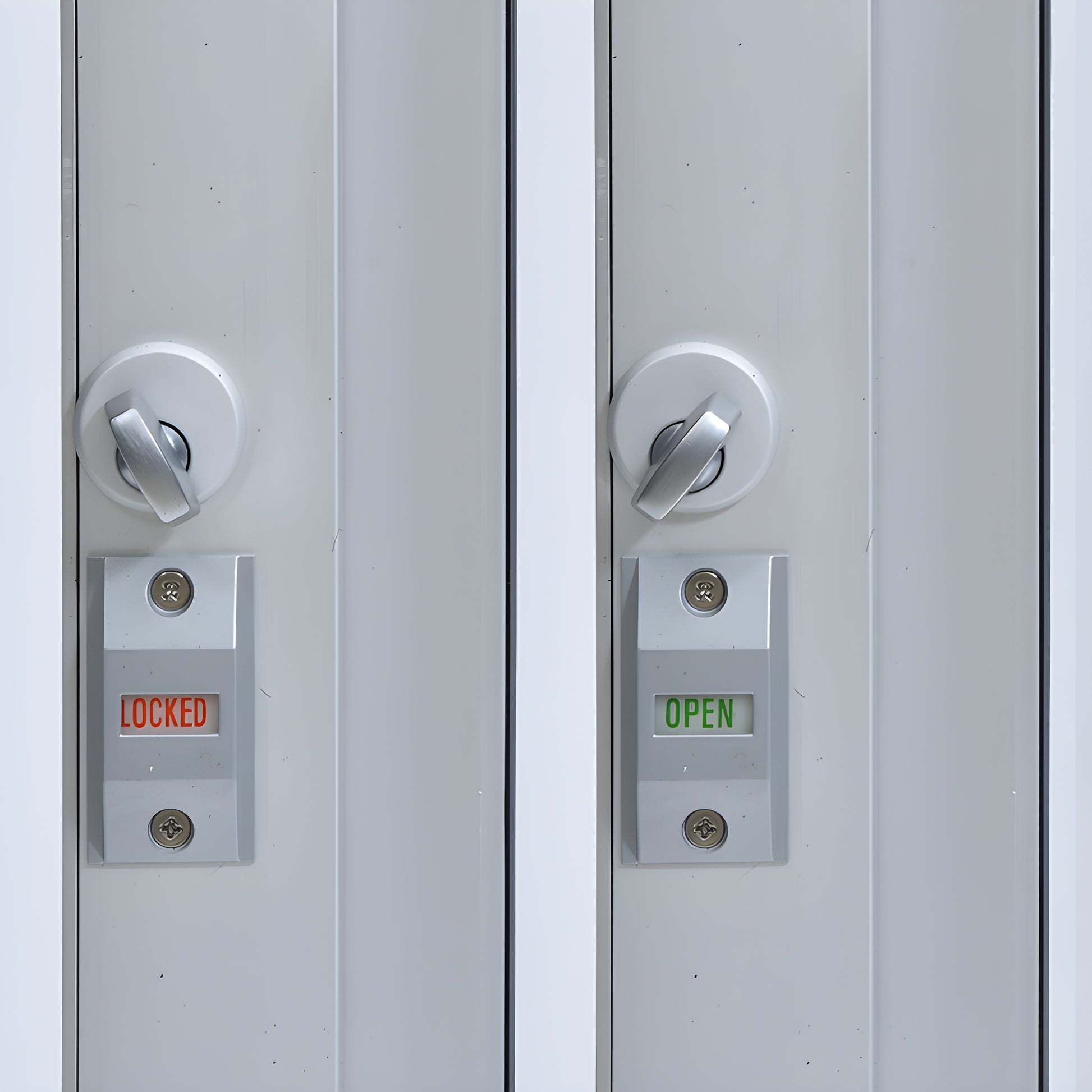

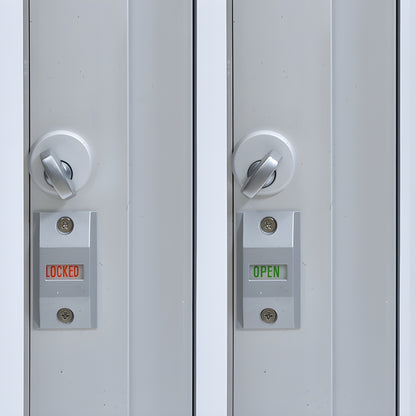

Thumbturn Lock with Indicator
Sill Condition
Full Bottom Track
Usage
Interior,Exterior
Overview
- Ships factory glazed with 1/4" clear tempered glass

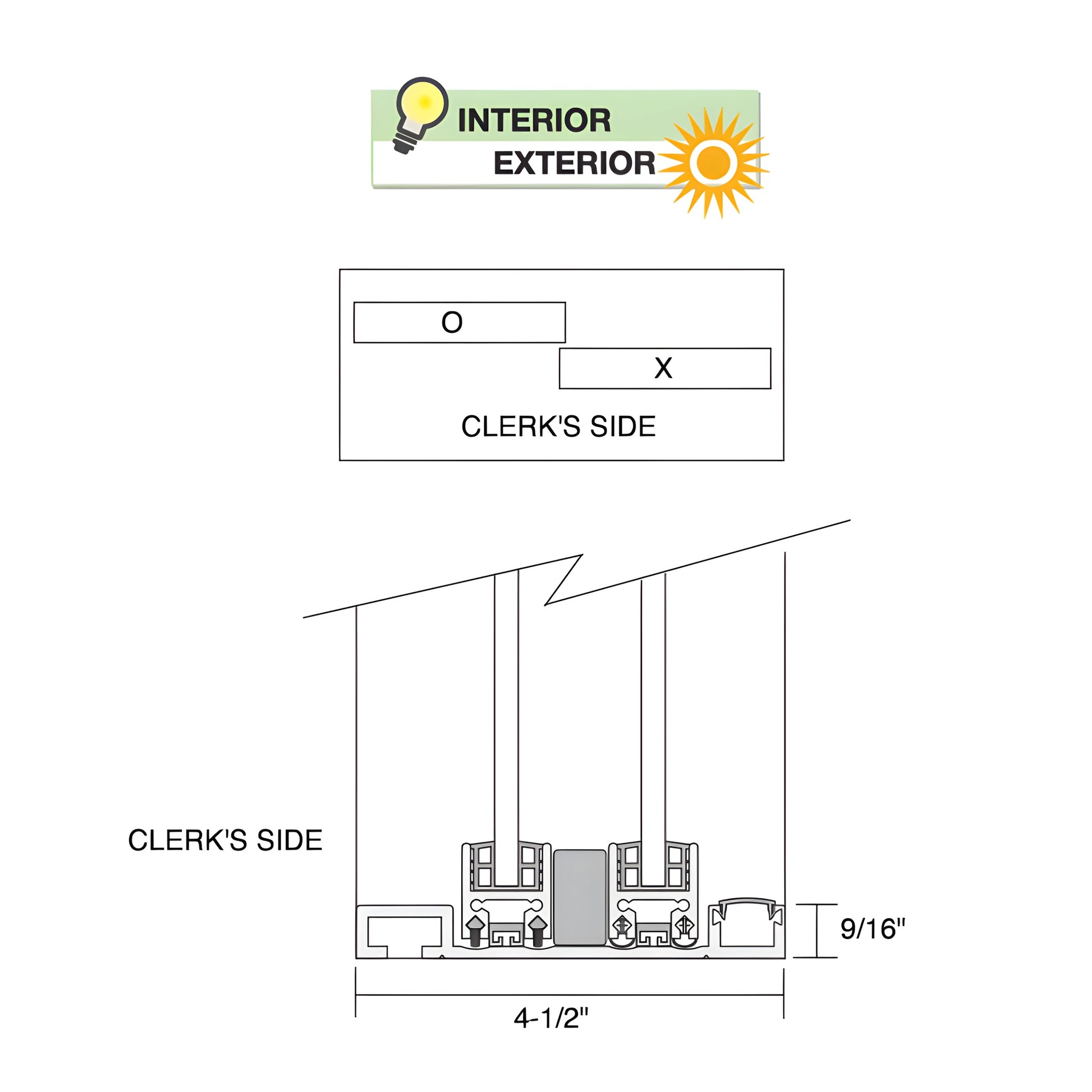

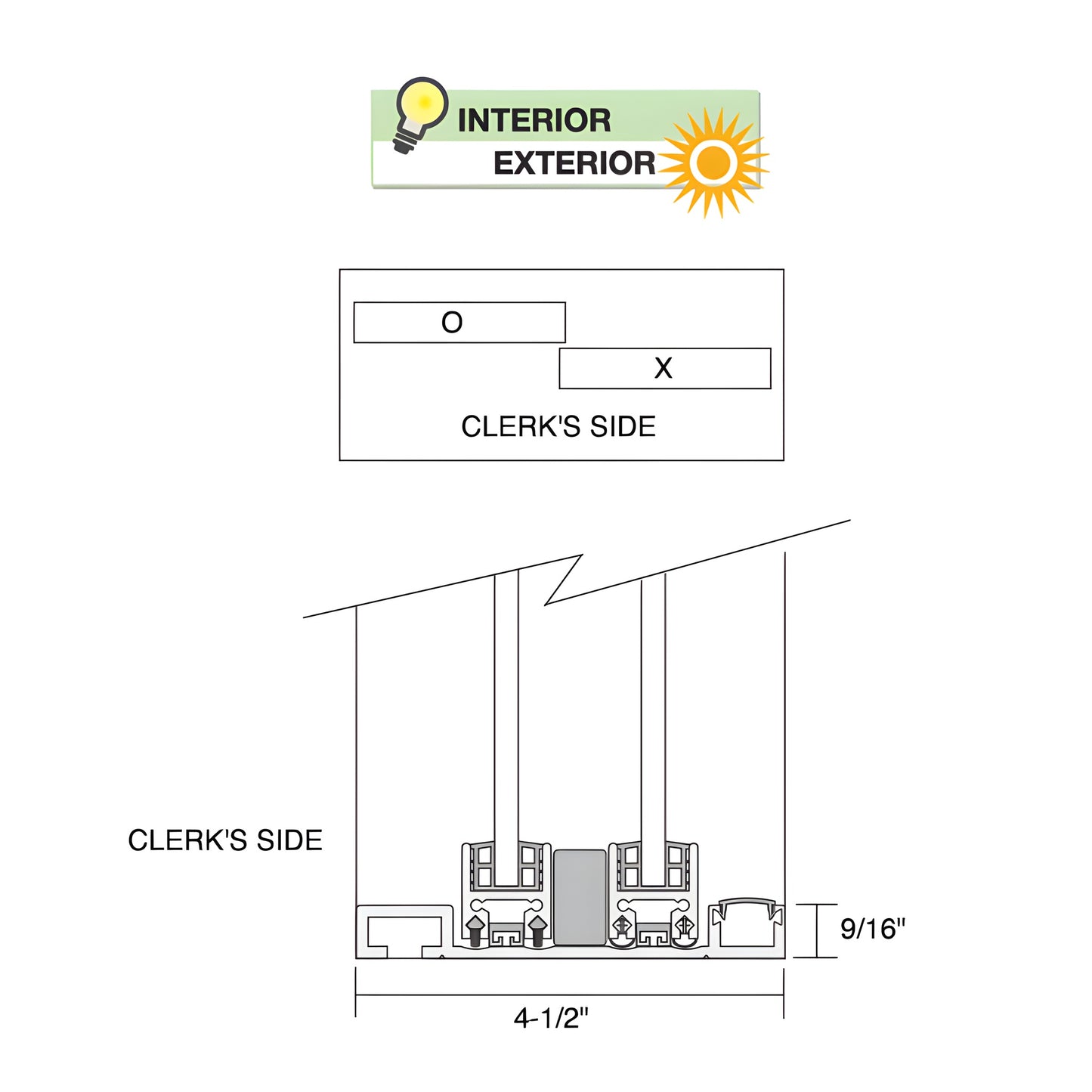

- OX clerkside configuration (X = sliding panel)
- Thumb-turn, self-latching handle for secure, one-handed operation
- Popular 47-1/2" W x 43-3/4" H frame size — fits 48" x 44" opening (SKU: SCDW48440XGA)
- Full bottom track; manual open with hydraulic self-closing header
CRL standard-size Self-Closing Service Windows are shipped fully assembled and either ready to glaze or factory glazed for fast install. Built for heavy-duty commercial use — drive-thru, walk-up service, or interior security counters — these self-closing service windows combine commercial-grade durability with convenient operation.
The self-closing action is powered by a hydraulic mechanism concealed in the header for smooth, reliable closing. Standard finishes include Satin Anodized and Duranodic Bronze. Bottom options include half-track (clear passage under sliding panel) or stainless steel step-sill with water-dam for exterior applications. Custom versions are also available to meet specific project requirements.
Product Warning:
Heavy-duty service windows; not designed to serve as the primary building seal for severe weather conditions.
Need this model SCDW48440XGA for a drive-thru or security counter project? Contact CRL to order or request a custom quote.
