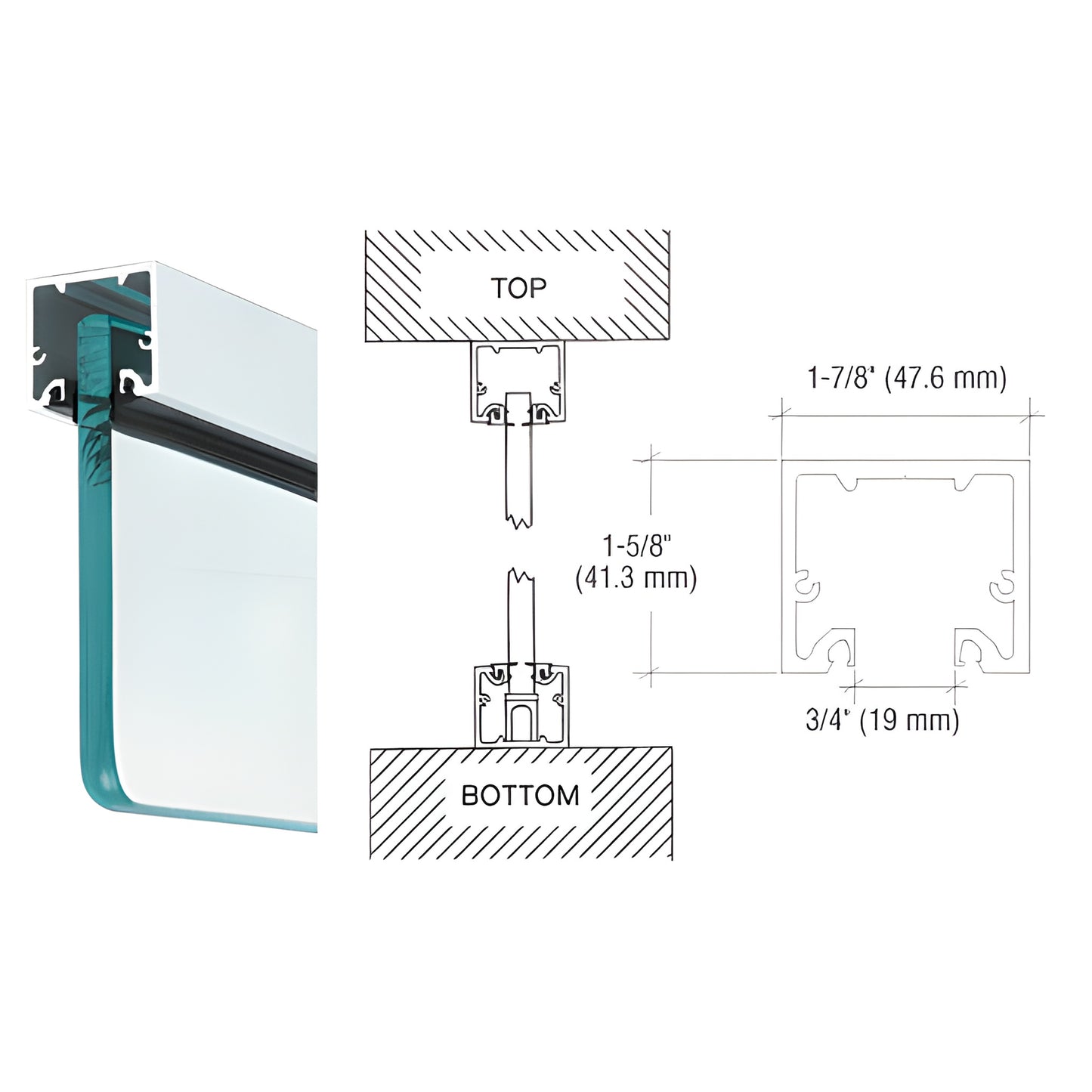

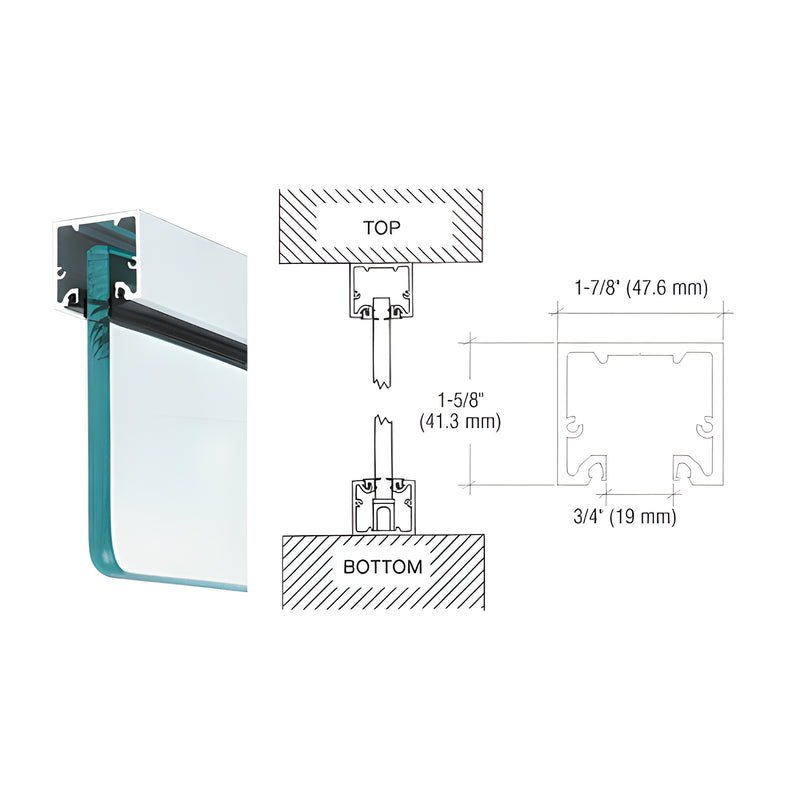

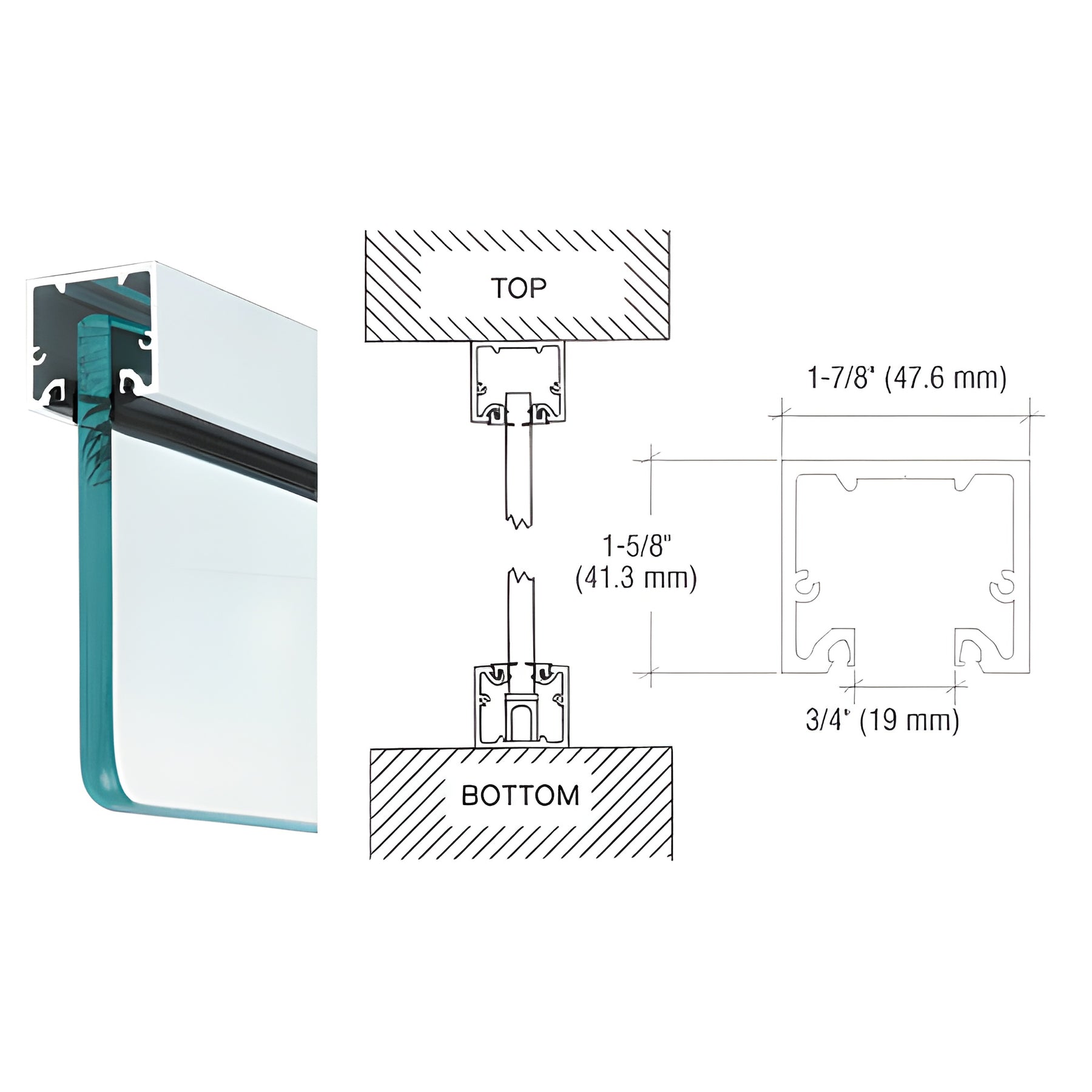

CRL Satin Anodized U-Channel, Roll-In Gasket for 3/8 & 1/2 Glass 120"

• Channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) glass
• Use with monolithic tempered glass
• Matches the width of door and sidelite rails for consistent sight lines
• Accepts roll-in glazing gasket, top pivot block, and snap-in filler strip
• Ready-to-ship Quick Pick models from CRL inventory (SKU: NH2SASL)
• Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel installation

This aluminum extrusion was developed for three primary uses:

1. As a U-channel that matches our sidelite and door rail widths for a uniform, even sight line.
2. As a narrow header (same width as sidelite and door rails) that accepts a top free-swinging pivot to secure the top of the doors.
3. As an even sight line system: secure the fabricated narrow header to the opening, then attach the sidelite rail to the header using the 1/4" (6 mm) header saddle.

All drilling, tapping, and fabrication can be performed during manufacturing to save on-site installation time. Ideal for aluminum U-channel glass headers, narrow glass door headers, and systems requiring roll-in gasket compatibility.

Quick Pick policy: These products are stocked centrally and ship on the next weekly re-supply truck to your regional CRL service center. If your regional center is out of stock, your order can typically be filled within a few days. Click the "CHECK STOCK AVAILABILITY" box above to verify current inventory.

Need this aluminum glass header fast? Check stock or contact CRL for fabrication options and lead times.
