CRL Vernon Oil Dynamic 180° Satin Anodized Glass Hinge Hold-Open

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body — available in several finishes for wall-mount and glass-to-glass installations
• Hold-open and no-hold-open models available
• Adjustable closing speed via control valve
• Durable oil-dynamic design — tested over 1 million cycles
• Great alternative to floor closers and patch fittings for retrofit all-glass doors

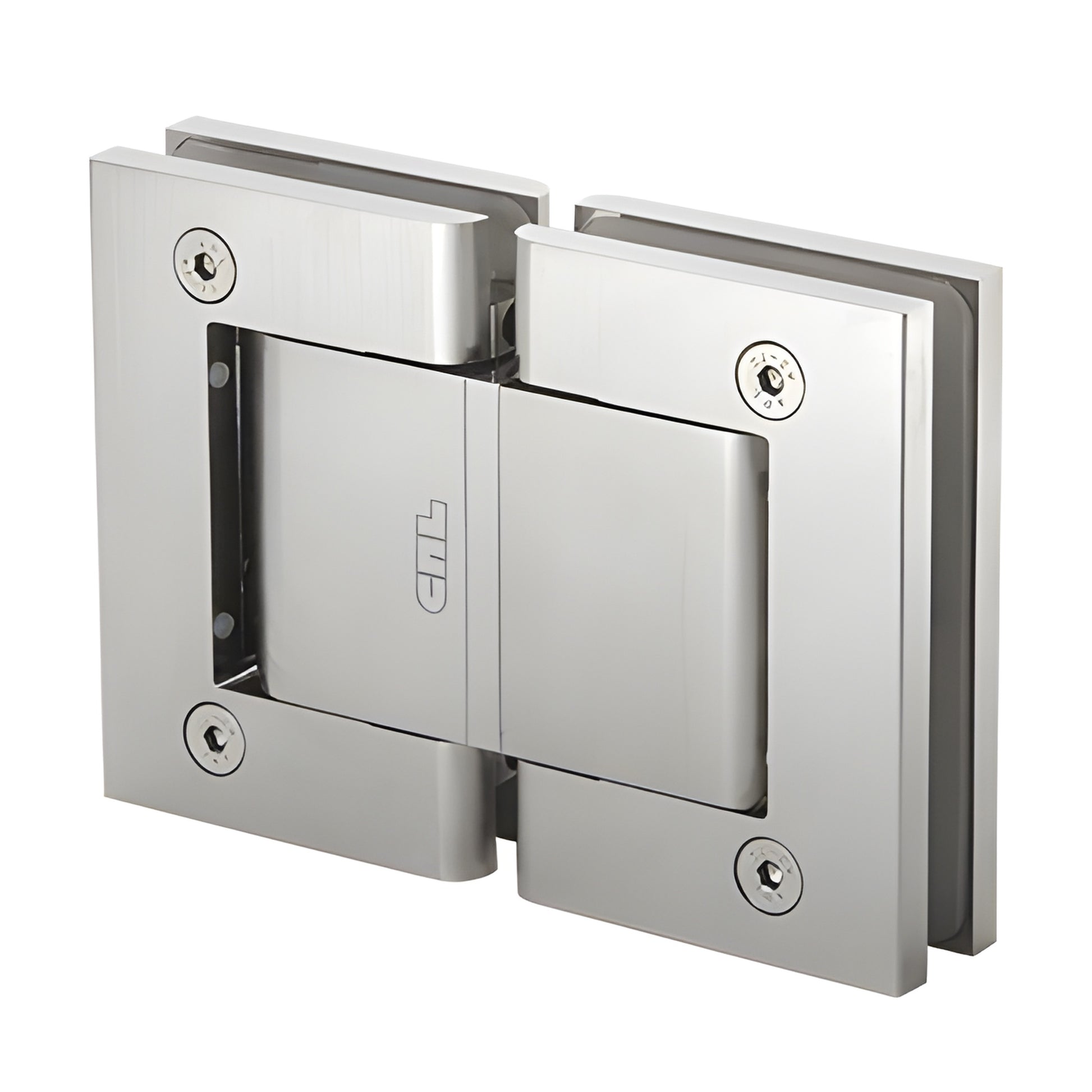

CRL 180º Glass-to-Glass Hinge (SKU: H8015SA) swings in and out up to 90º with positive stops at 0º and ±90º. Designed for interior self-closing glass doors (not for shower doors). Use two hinges for doors up to 39" (1 m) wide and a maximum combined weight of 176 lbs. (80 kg). Closing speed is adjustable for smooth, oil-dynamic hydraulic operation.

The Oil Dynamic Hinge blends automatic mechanical hinge convenience with hydraulic control, enabling self-closing all-glass door installations without floor- or overhead-mounted closers. This is ideal for retrofits where minimal floor or overhead modification is desired. Oil Dynamic is ambidextrous and available in configurations for wall-mount and glass-to-glass applications.

Specifications

• Glass thickness range: 5/16" to 9/16" (8 to 13.52 mm)
• Construction: Aluminum
• Swing: 90º inwards and outwards (some models may be one-way)
• Closing type: Automatic closing from 0º to 80º
• Features: Holds open at 90º (hold-open / no-hold-open options); adjustable closing speed
• Cut-out required; uses included snap-in molded gaskets and hex screws
• Maximum capacities (using two hinges): Door width 39" (1 m); Door weight 176 lbs. (80 kg)
• Do not use more than two hinges on one door

Includes: Snap-in molded gaskets for 5/16"–9/16" (8–13.52 mm) glass; hex screws.

Product Warning: Do not use more than two hinges on one door. For uses outside intended purpose, obtain approval from CRL Technical Sales. Use only the included template—cut-out dimensions may differ from other brands.
