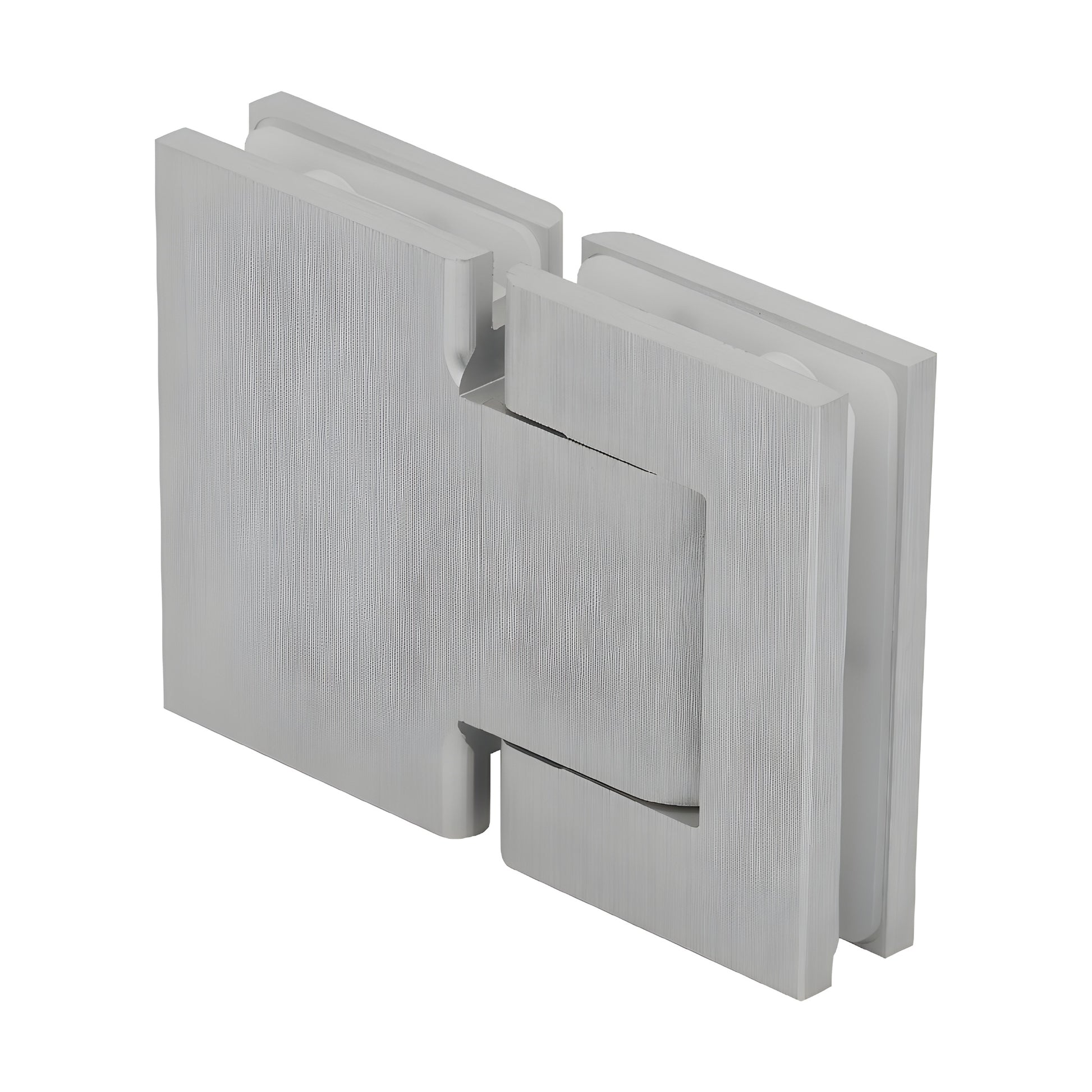

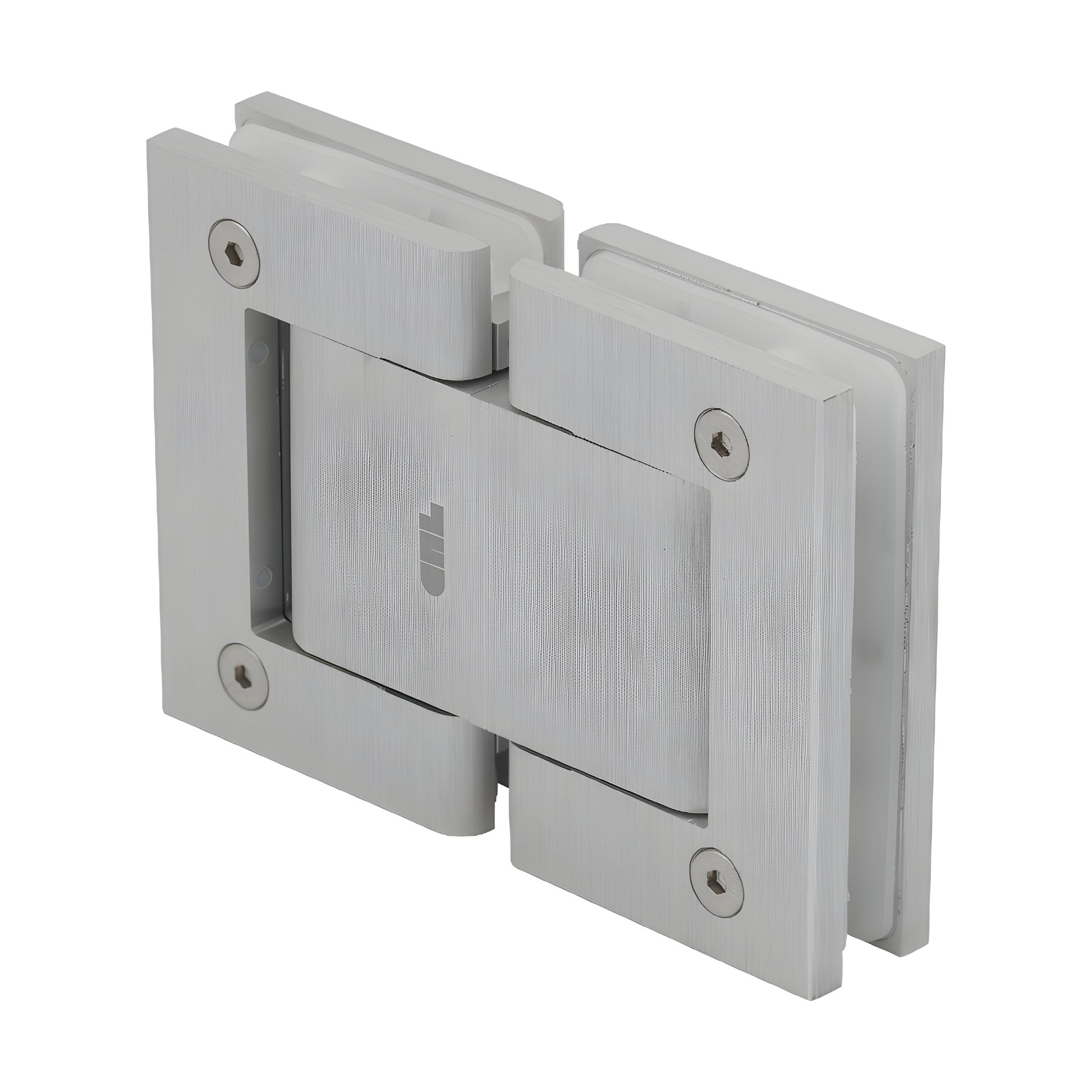

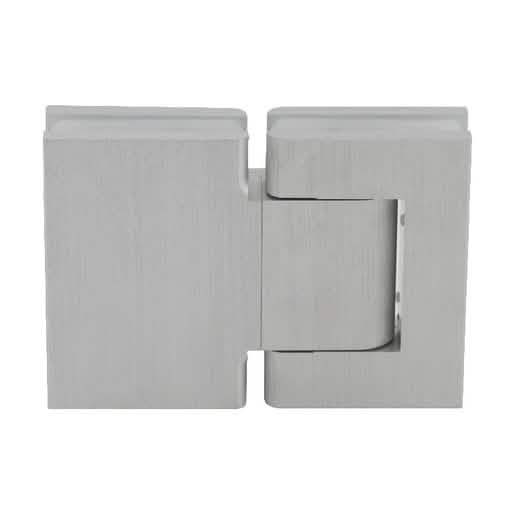

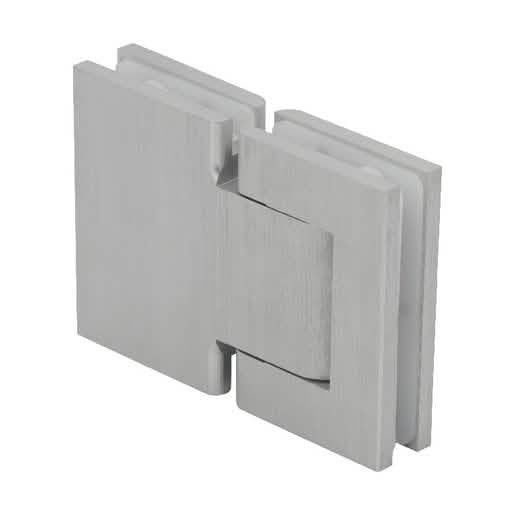

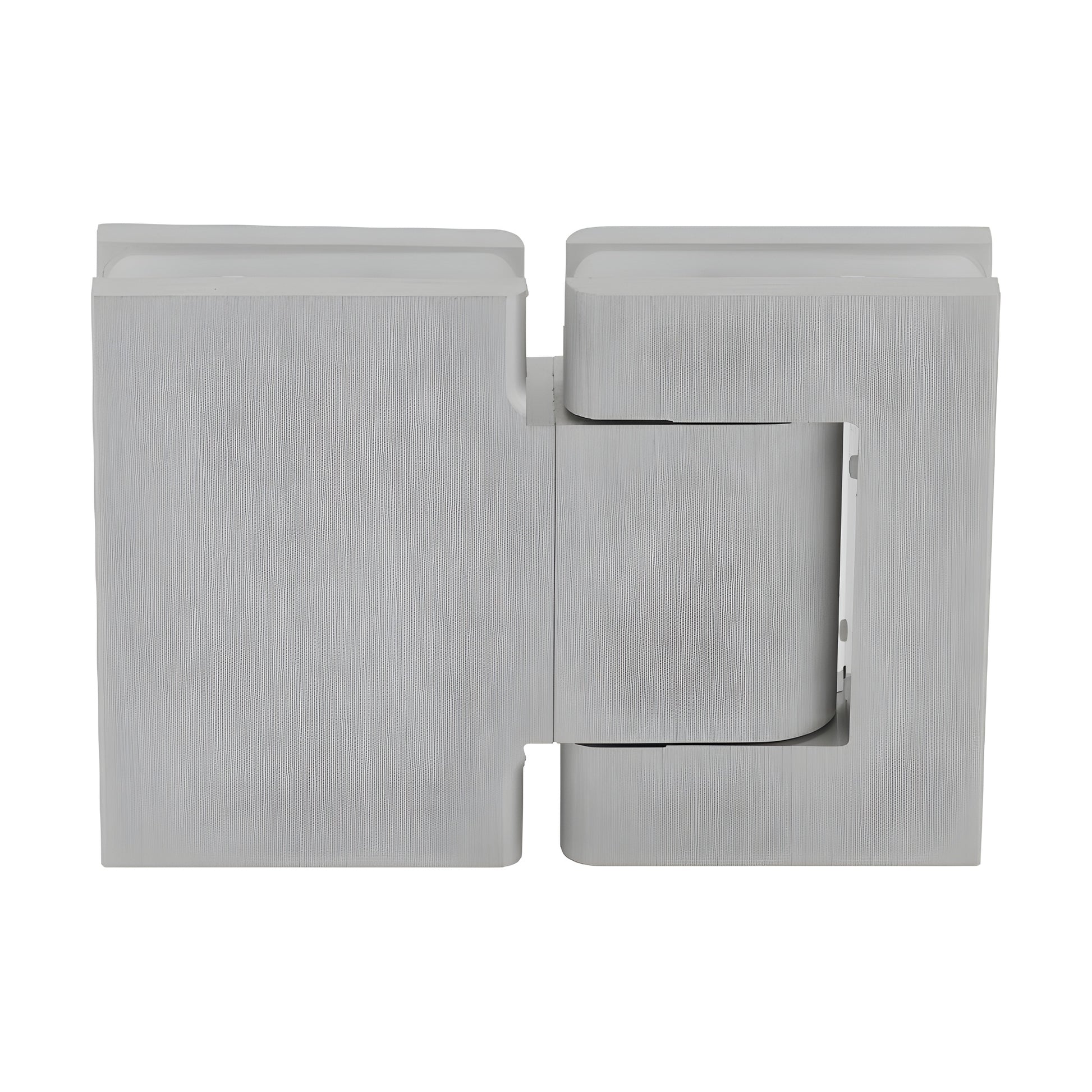

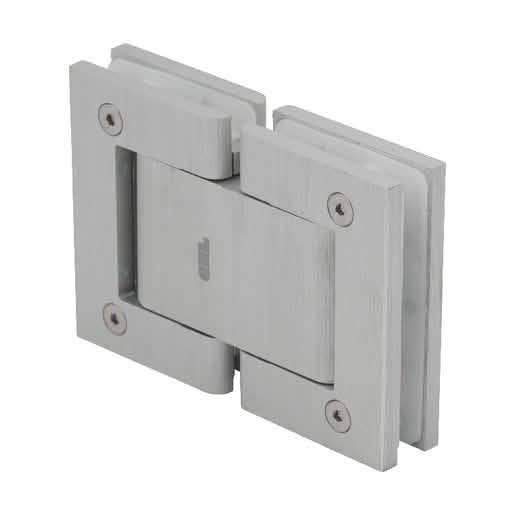

CRL Vernon 180° Satin Anodized Glass-to-Glass Shower Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body — finishes: Brite Chrome, Satin Nickel, Satin Anodized
• Adjustable closing speed (control valve)
• Alternative to floor closers and patch fittings — installs without floor or overhead retrofit

The CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU H8215BTSA) is a self-closing glass door hinge designed for interior and exterior use. The hinge swings 90º in and out with a stop at 0º and an adjustable closing speed for precise control. Use two hinges to support glass doors up to 39" (1 m) wide and up to 176 lbs (80 kg). Oil Dynamic combines mechanical and hydraulic action to provide reliable, smooth automatic closing without a floor-mounted or overhead closer, making it ideal for retrofit all-glass door installations and commercial glass door applications.

Key differentiators: ambidextrous design for left or right-hand doors, snap-in molded gaskets for 5/16"–9/16" glass, over 1 million-cycle durability testing, and no floor cut required—perfect for glass storefronts, office interiors, and high-traffic doors where a concealed floor closer is undesirable.

Specifications:

• Glass thickness: 5/16" to 9/16" (8 to 13.52 mm)
• Construction: Aluminum
• Hinge swing: 90º inwards and outwards (except H8060 model)
• Closing type: Automatic closing from 0º to 80º
• Cut-out glass fabrication required
• Includes: Snap-in molded gaskets for 5/16"–9/16" glass
• Maximum capacities (using two hinges): Door width 39" (1 m); Door weight 176 lbs (80 kg)

Product Warning:

Do not use more than two hinges on one door. For uses outside intended purpose, obtain approval from the CRL Technical Sales Department. Use only the template included with this hinge; cut-out dimensions for CRL hinges may differ from other brands.

Order SKU H8215BTSA today to upgrade to a low-profile, oil-dynamic self-closing hinge for glass doors.
