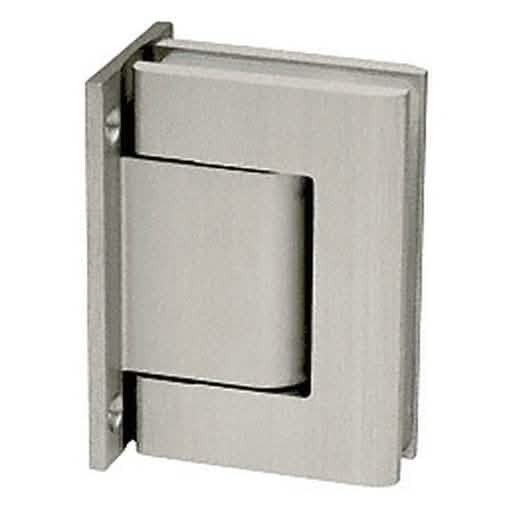

CRL Vernon Oil Satin Anodized Wall-Mount Full Backplate Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm)
• Engineered for interior humid and high-temperature environments (up to 212°F / 100°C) — ideal for steam rooms, Turkish baths, and shower doors
• Aluminum body available in Brite Chrome, Brushed Satin, and Satin Anodized finishes
• Adjustable closing speed with positive stops at 0° and ±90°; ambidextrous design
• Great alternative to floor closers and patch fittings for retrofit all-glass door installations

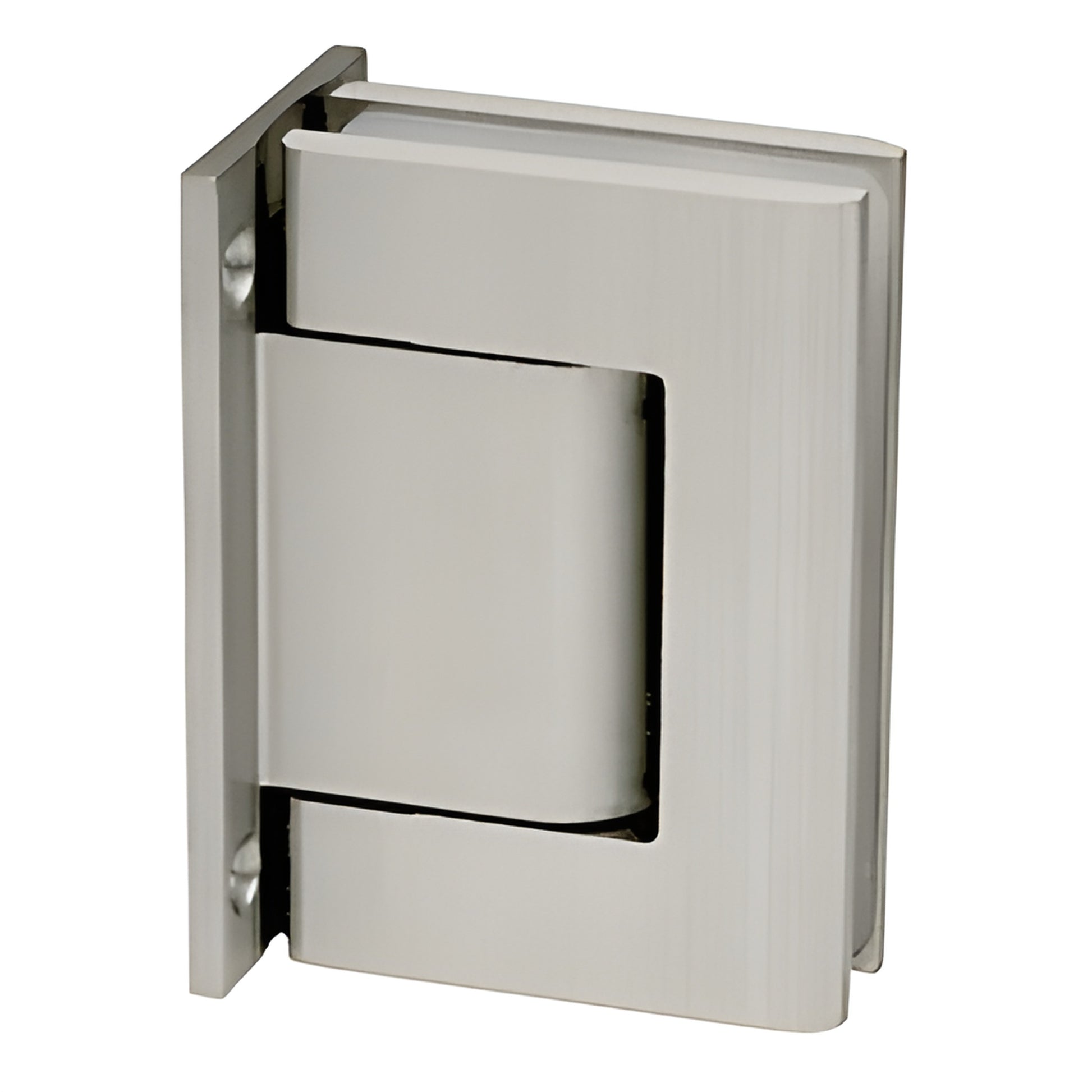

CRL Oil Dynamic Full Back Plate Wall Mount Hinge (SKU: H8010BTSA) swings in and out a full 90° with stops at 0°, +90° and −90°. The oil-dynamic mechanism combines automatic mechanical hinge convenience with hydraulic closing control to create a compact, self-closing solution without floor- or overhead-mounted devices. This makes it ideal for installing self-closing glass doors in existing openings with minimal retrofit.

Two properly mounted hinges support glass doors up to 39" (1 m) wide and a combined maximum weight of 220 lbs (100 kg). A control valve provides adjustable closing speed. Tested for long life (over 1 million cycles), the H8010BTSA is a durable choice for humid, high-temperature interior settings.

The hinge is available in Wall Mount and Glass-to-Glass configurations. Includes snap-in molded gaskets for 5/16" to 9/16" (8 to 13.52 mm) glass and hex screws. The hinge cover plate uses a 4 mm Allen key for adjustments.

SPECIFICATIONS:

• Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
• Construction: Aluminum
• Hinge Swing: 90° inwards and outwards (except H8060 model)
• Closing Type: Automatic closing from 0° to 80°; adjustable closing speed
• Special Features: Positive hold-open at 90°; ambidextrous; no-hold-open models only in H8060
• Cut-out required — use only the template included; CRL cut-outs may differ from other brands
• Includes: Snap-in molded gaskets; hex screws
• Maximum capacity (using two hinges): Door width 39" (1 m); Door weight 220 lbs (100 kg)

NOTE: Do not use more than two hinges on one door. Not suitable for exterior or outdoor use — for exterior applications see H8015JC Series.

Product Warning:

Do not use more than two hinges on one door. If you plan to use these hinges for applications other than intended, obtain approval from the CRL Technical Sales Department. Use only the template included with the hinge. The hinge cover plate requires a 4 mm Allen key.
