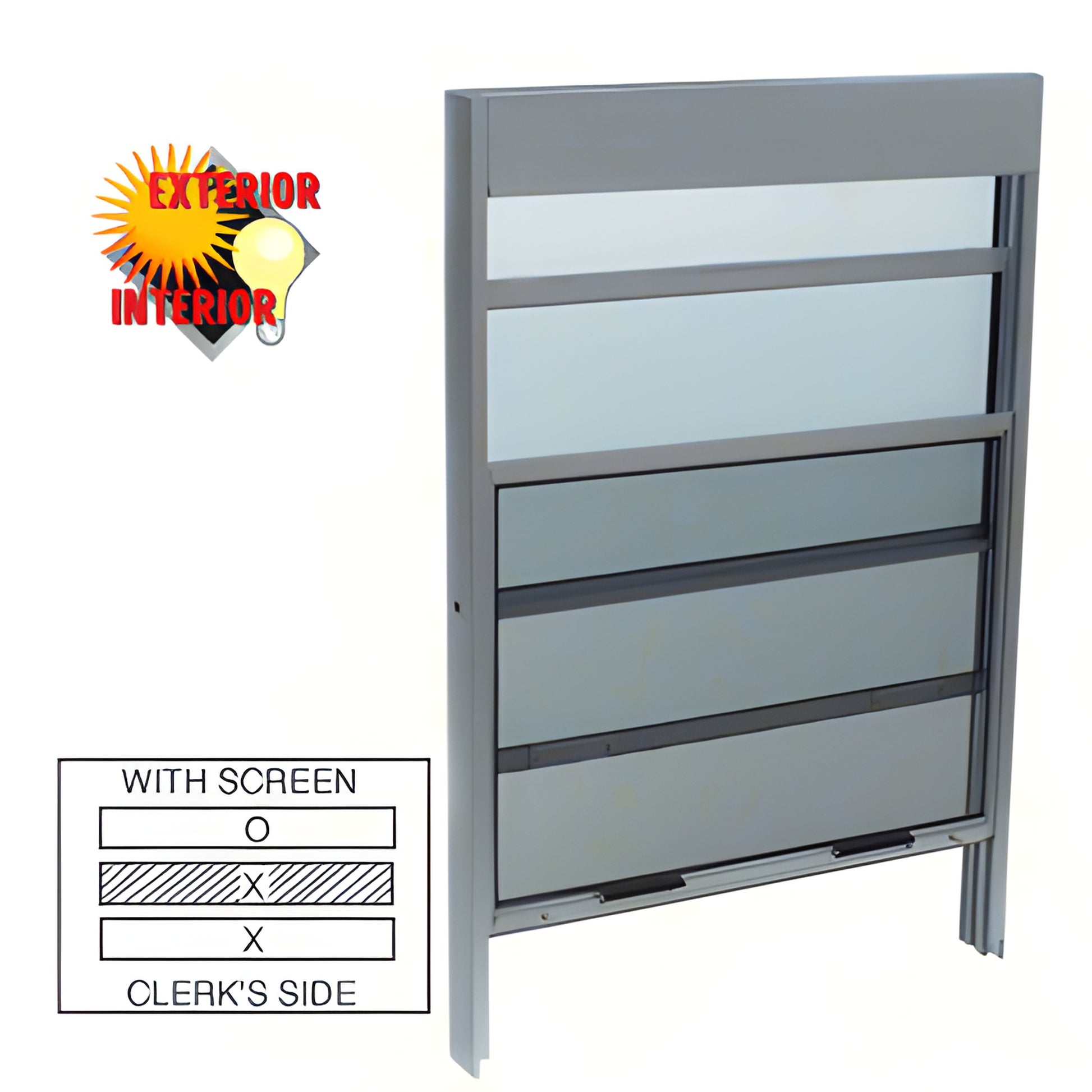

CRL Satin Anodized Vertical Sliding Service Window 1/4" Glass&Screen
CRL Satin Anodized Vertical Sliding Service Window 1/4" Glass&Screen
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SWB1214A
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
One Fixed Top Panel And One Sliding Lower Panel
Finish/Color
Satin Anodized
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
Tempered (Specify)
Handing
Specify
Material
Aluminum
Panel Designation
O = Fixed, X = Sliding
Screen
Yes
Usage
Interior,Exterior
Window Style
Vertical Sliding
Overview
- For light-duty applications up to 50 uses per day
- For windows exceeding 1050 square inches (width × height)
- Available pre-glazed or non‑glazed
- Each unit is customized to your needs
This CRL "SW" Series Sliding Service Window (SKU: SWB1214A) is designed for interior or exterior use and is ideal for walk-up food service windows, receptionist counters, pharmacy windows, and other service openings. Vertical windows use nylon runners over coiled tension springs for smooth operation; horizontal windows use top nylon guides. For larger openings we recommend a full bottom track with rollers.
All larger vertical format service windows that exceed 1050 square inches (width × height) require concealed sash balances located behind a 4-5/8" (117 mm) tall header. An overhang is recommended for exterior installations.
NOTE: Specify handling when ordering — left or right hand fixed from clerk’s side. Surround frame is not available for insulating glass models. If ordered with a keyed lock, the screen panel will be installed in the center channel.
SPECIFICATIONS:
Materials: Extruded aluminum; tempered safety glass (on some models); fiberglass screen (on some models)
Finishes: Satin anodized, Duranodic bronze, RAL powder coat, or KYNAR® painted. Painted units ship glazed only.
Glazing: 1/4" (6 mm) glass
Installation Instructions Included
Product Warning:
All larger vertical format service windows which exceed 1050 square inches (width × height) require sash balances.
For custom sizes, pre‑glazed or non‑glazed options, and finish choices, contact CRL Customer Service to configure your SW Series sliding service window and place an order.
