CRL
CRL Satin Anodized U-Channel w/ Top-Load Gasket for 3/4" Glass, 20 ft
CRL Satin Anodized U-Channel w/ Top-Load Gasket for 3/4" Glass, 20 ft
Regular price
$709.45 CAD
Regular price
Sale price
$709.45 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# NH3SA240
Shipping Weight: 20.45 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.45 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

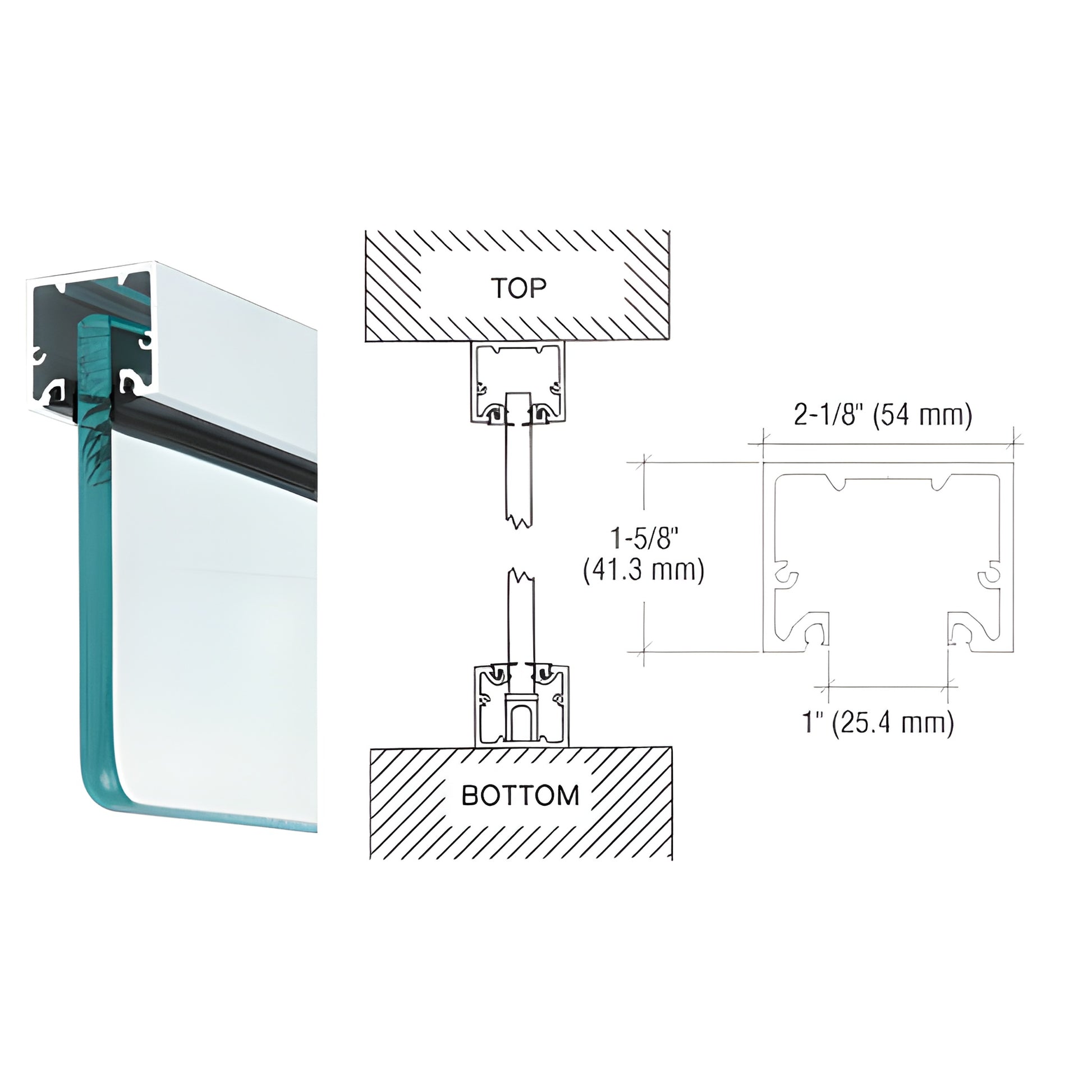

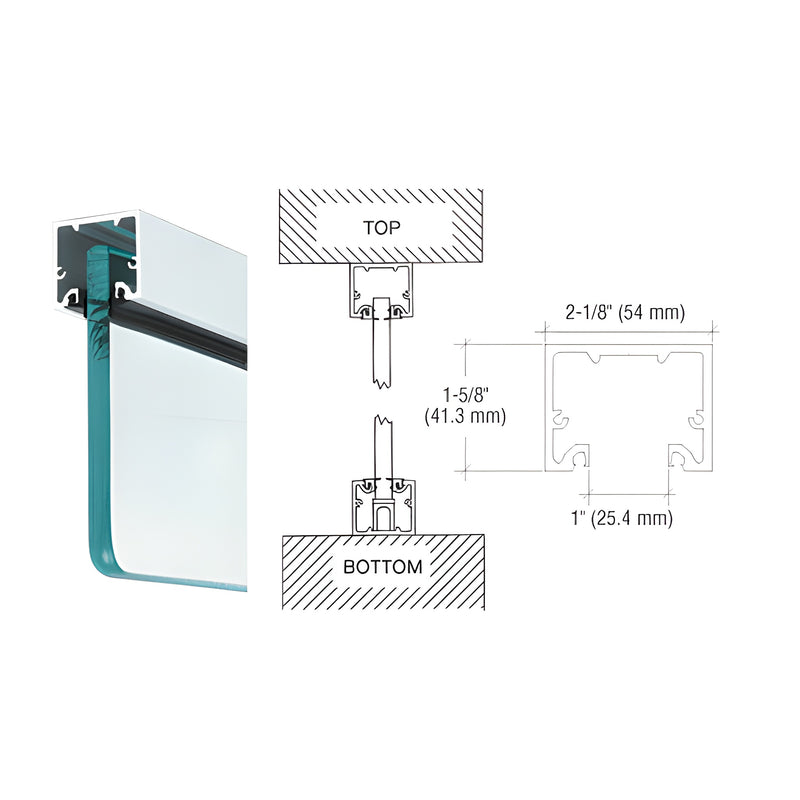

Description
Finish/Color
Satin Anodized
Glazing Thickness
3/4 in. (19 mm)
Height
1-5/8 in. (41 mm)
Length
240 in. (6096 mm)
Width
2-1/8 in. (54 mm)
Overview
- Aluminum extrusion matches width of door and sidelite rails and channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 or 19 mm) glass
- Accepts roll-in glazing gasket, top pivot block, and snap-in filler strip
- Ready-to-ship NH3SA240 models from CRL inventory
- Available in stock lengths, fabricated headers, or header with side pockets for "lift and drop" panel installation
This versatile aluminum profile serves three primary applications:
- U-Channel: same width as CRL sidelite and door rails for secure glazing retention
- Narrow Header: accepts a top free-swinging pivot for securing door tops
- Even Sight Line System: use the fabricated narrow header plus a 1/4" (6 mm) header saddle to align sight lines between header and sidelite rail
All drilling, tapping, and fabrication options are available at manufacturing to reduce installation time. SKU: NH3SA240.
Quick Pick / stock policy: stocked in CRL's centralized service center and shipped on the next weekly re-supply truck to your regional service center. If local stock is unavailable, your order is typically filled within a few days. Click the "CHECK STOCK AVAILABILITY" box above to view current inventory.
Optimize your door and sidelite installation with the NH3SA240 aluminum header—check stock and order now.
