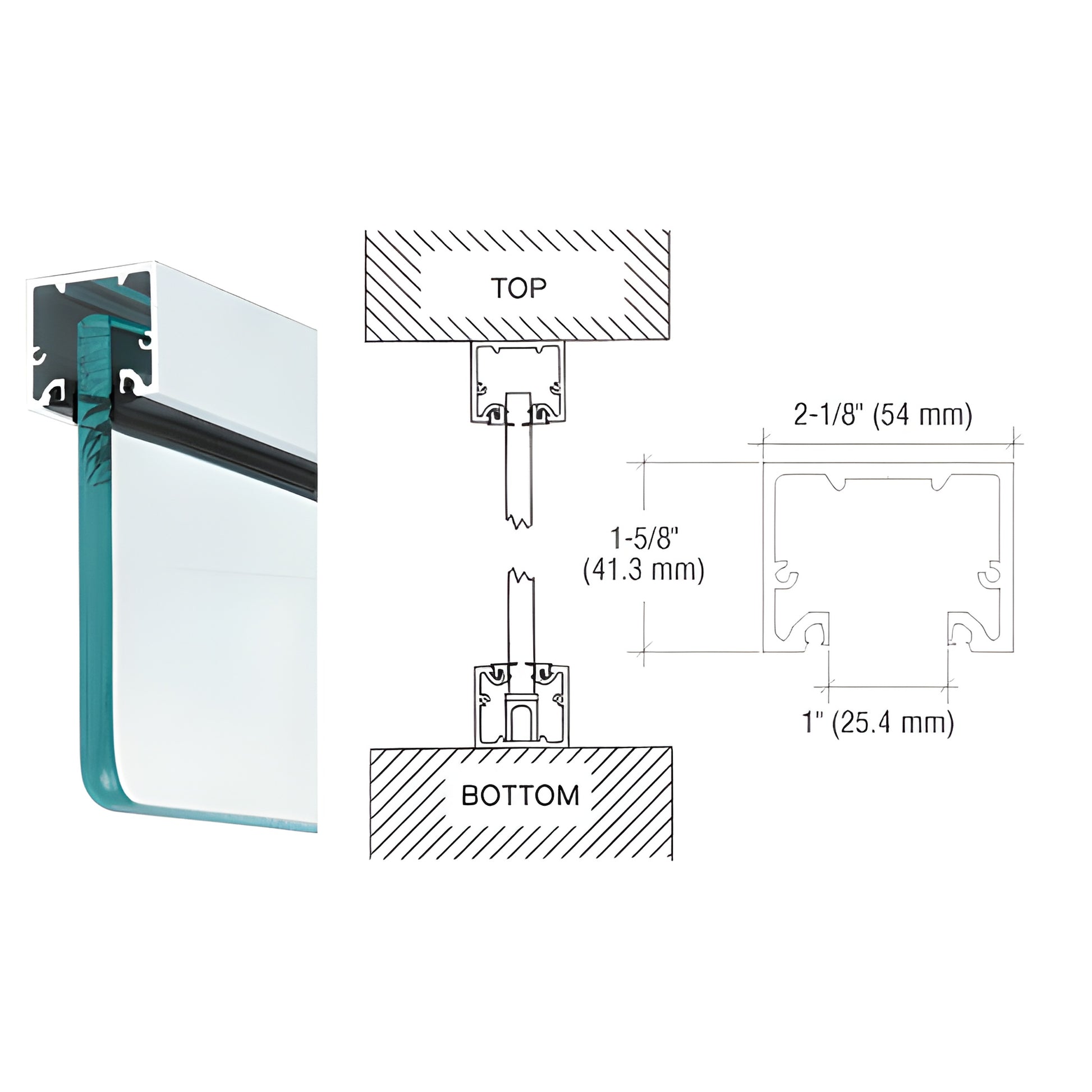

• NH3SACL satin anodized narrow header/U-channel for 3/4 (19mm) glass, 2-1/8 x 1-5/8 aluminum profile with top/bottom detail
1 1

CRL

CRL Satin Anodized Wide U-Channel for 3/4 in Glass - Top-Load Roll-In Seal

CRL Satin Anodized Wide U-Channel for 3/4 in Glass - Top-Load Roll-In Seal

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# NH3SACL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Glazing Thickness
3/4 in. (19 mm)
Height
1-5/8 in. (41 mm)
Length
Specify
Width
2-1/8 in. (54 mm)

Overview

  • Matches width of door and sidelite rails; accepts roll-in gasket, top pivot block and flush snap-in insert
  • Offered in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
  • Special sidelite rail adapter enables a continuous sight line when used with the narrow header

This CRL Wide U-Channel and Narrow Header (SKU: NH3SACL) is engineered for glass door and storefront applications as: a U-Channel matching our Sidelite and Door Rails; a Narrow Header that accepts a top free‑swinging pivot to secure door tops; and an Even Sight Line System—install the fabricated Narrow Header, then attach the Sidelite Rail with the 1/4" (6.4 mm) header saddle for a continuous sight line. All drilling, tapping and fabrication are completed in manufacturing to save installation time and eliminate field fabrication. For technical assistance, contact our Technical Sales Department.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to placing your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.


Order the NH3SACL Narrow Header/U-Channel for a clean, continuous sight line and reduced field work — contact sales to get started.
