CRL Satin Anodized U-Channel w/ Roll-In Gasket for 3/8 & 1/2 Glass
CRL Satin Anodized U-Channel w/ Roll-In Gasket for 3/8 & 1/2 Glass
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# NH2SACL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
1/2 in. (12 mm)

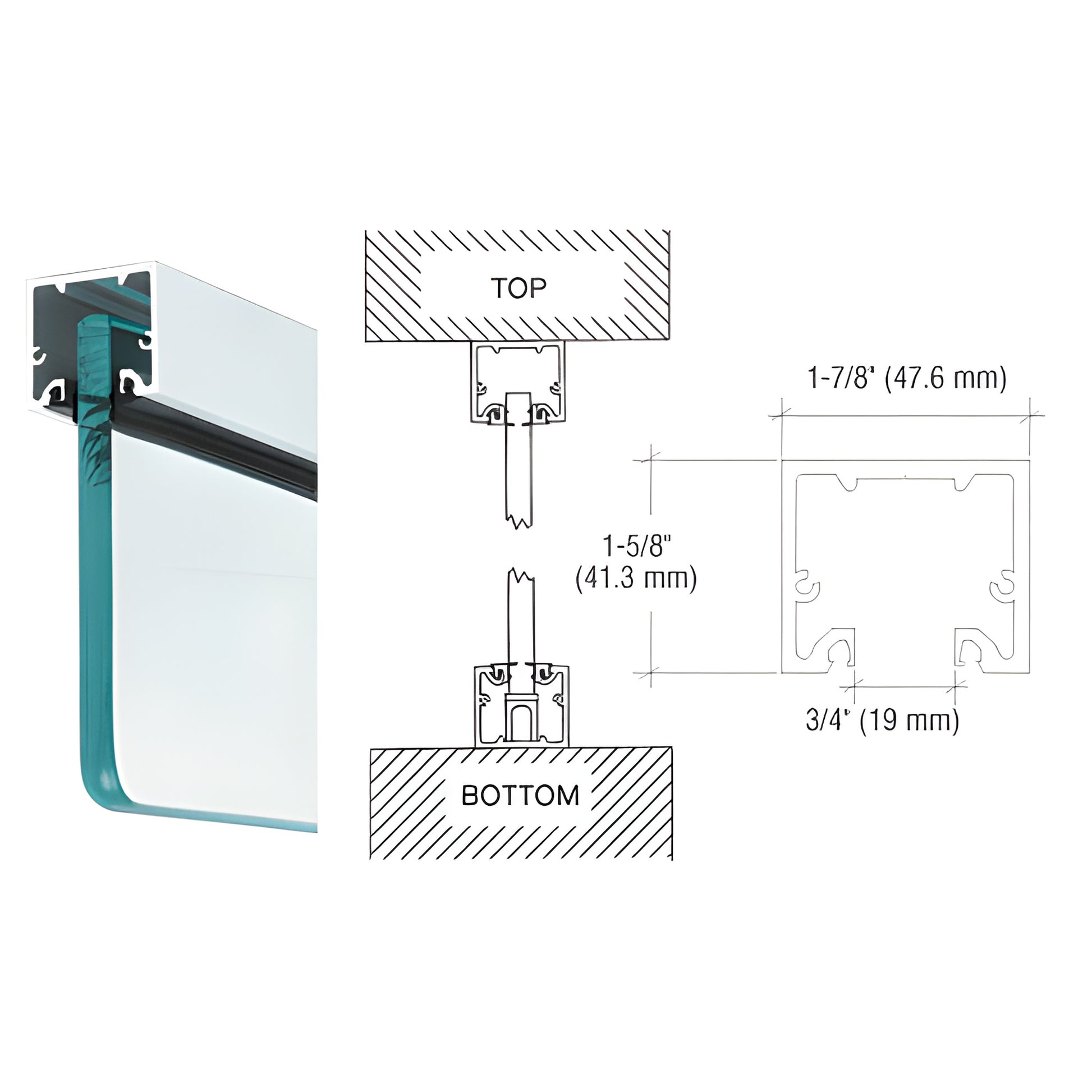

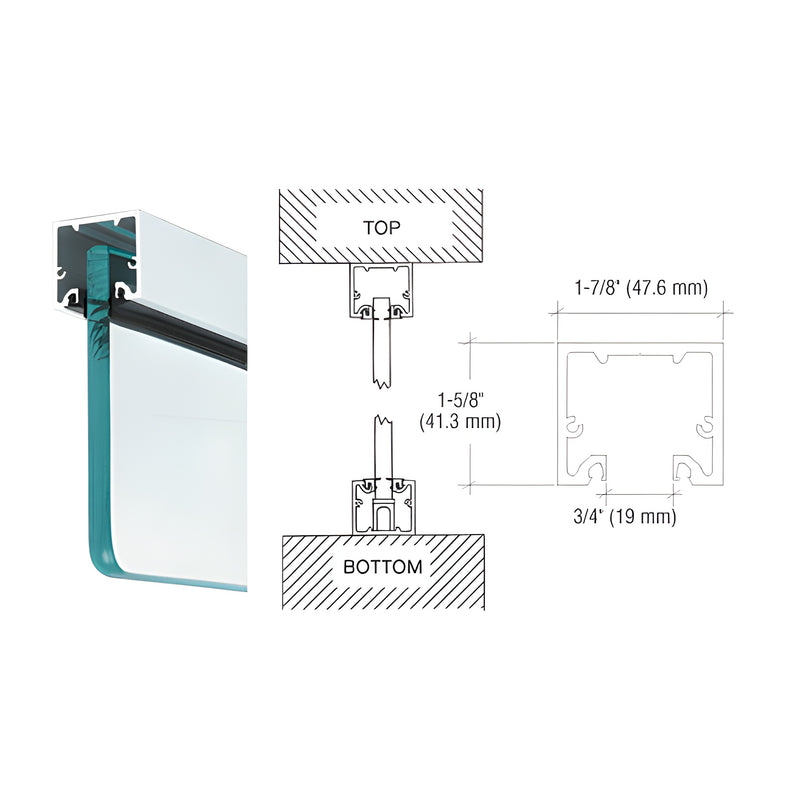

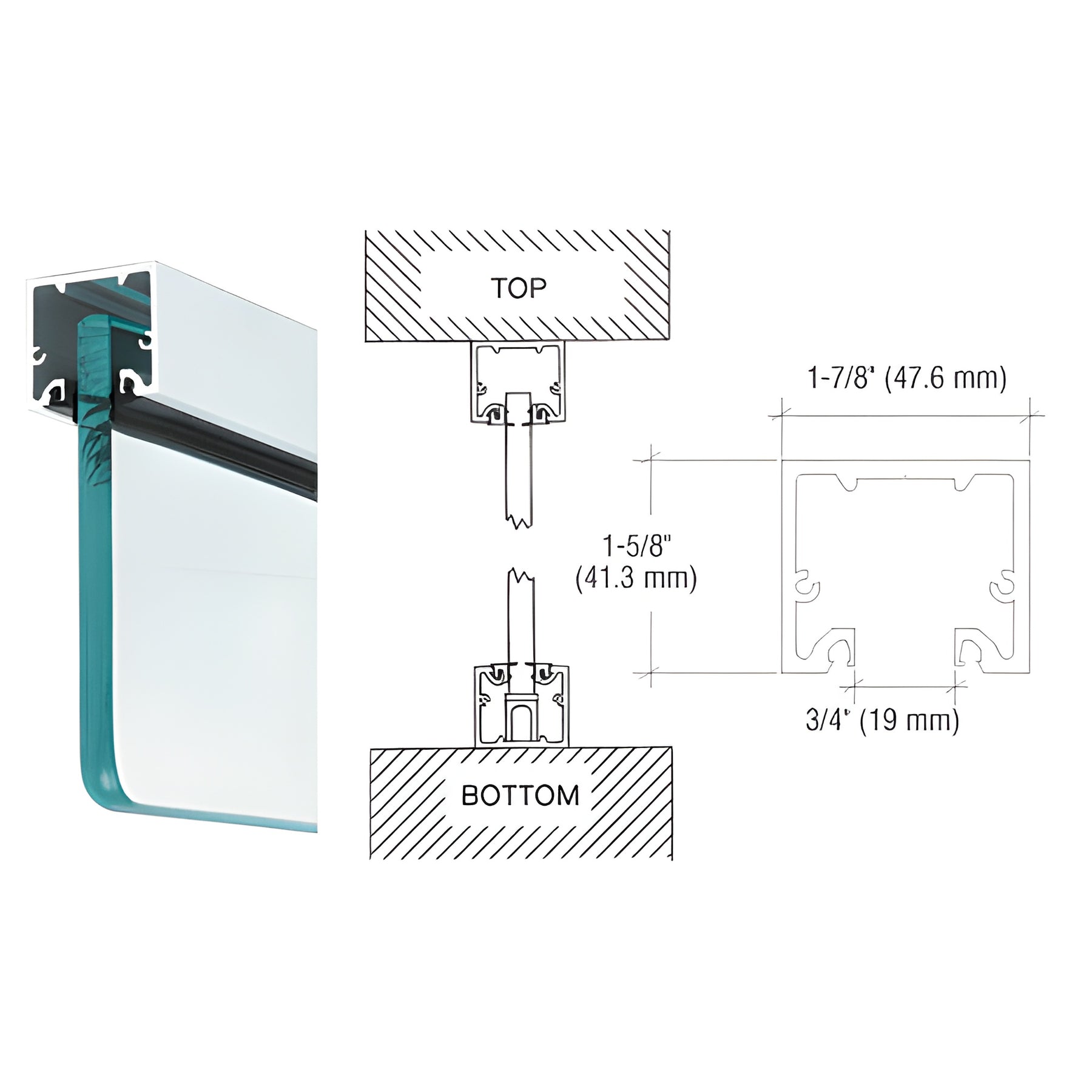

Height
1-5/8 in. (41 mm)
Length
Specify
Width
1-7/8 in. (48 mm)
Overview
- Matches width of door and sidelite rails; accepts roll-in gasket, top pivot block, and flush snap-in insert
- Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
- Special sidelite rail adapter enables a continuous sight line when used with the narrow header
This CRL Wide U-Channel and Narrow Header (SKU: NH2SACL) is engineered for glass door and sidelite systems where consistent sight lines and reliable hardware integration are required. Use as: a U-channel matching our Sidelite and Door Rails; a narrow header that accepts a top free-swinging pivot to secure door tops; or as part of an Even Sight Line System by fastening the fabricated narrow header to the opening and attaching the sidelite rail with the 1/4" (6.4 mm) header saddle. All drilling, tapping and fabrication are completed at the factory to save installation time and eliminate field fabrication. For technical assistance, contact the CRL Technical Sales Department.
Need help specifying this narrow header or U-channel for your glass door project? Contact CRL for a quote and installation guidance.
Specifications
CAD Drawings - dwg
