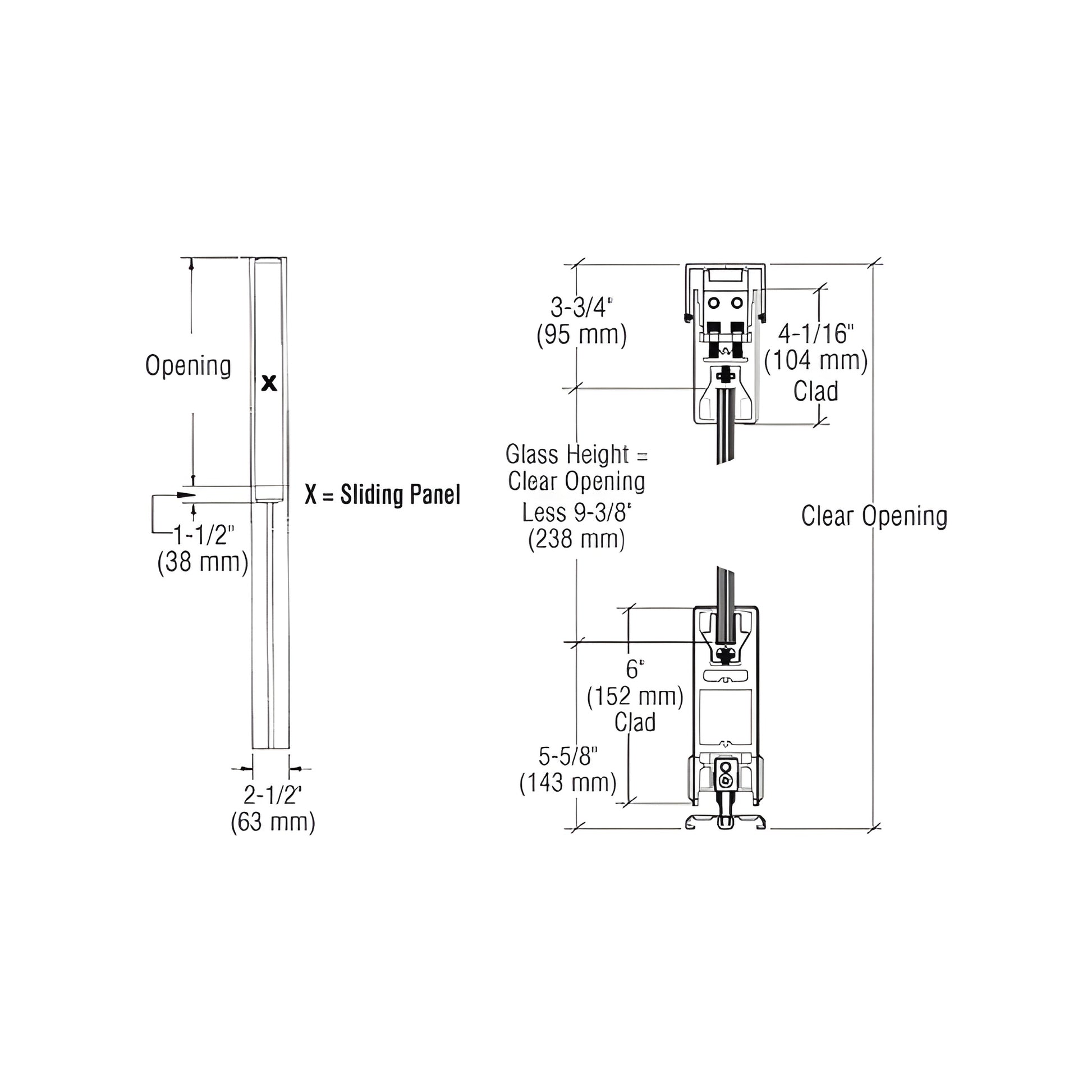

• CAD drawing of CRL SDR bottom-rolling sliding door system SKU 6SDR1ASA, showing rail cross-sections, glass placement and dime
1 1

CRL

CRL Satin Anodized Sliding Door - 4in Top, 6in Bottom Square Rails

CRL Satin Anodized Sliding Door - 4in Top, 6in Bottom Square Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 6SDR1ASA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
X- or -X
Finish/Color
Satin Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
1

Overview

  • With 4" Square DR4S Series Door Rails and 6" Square DR6S Series Bottom Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: 6SDR1ASA) is a bottom-rolling sliding door system engineered for commercial and residential glazing applications. It features 4" (102 mm) square top rails and 6" (152 mm) square bottom rails and uses the proven Wedge-Lock® Glass Securing System from the DR4S and DR6S Series—providing secure, vibration-resistant glass retention and simplified installation. Rails can be custom fabricated and ordered with or without locks in the bottom rail to meet project requirements. Key specifications:
  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lb (106 kg)
  • Available in seven architectural finishes
Highlights and differentiators:
  • Wedge-Lock® system for secure, easy glass installation
  • Bottom-rolling design suitable for heavy glass and high-traffic openings
  • Custom fabrication options and optional bottom-rail locks for added security
  • Architectural finish options for consistent aesthetic integration

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Contact CRL Customer Service to order SKU 6SDR1ASA or request finish samples and verified shipping weight.
