CRL Satin Anodized X-/-X Sliding Door System, 4 in Tapered Rails
CRL Satin Anodized X-/-X Sliding Door System, 4 in Tapered Rails
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDR1ASA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
X-/-X
Finish/Color
Satin Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Tapered DR4T Series Door Rails
- Available in Seven Architectural Finishes
CRL SDR Bottom Rolling Sliding Door System (SKU: SDR1ASA) — heavy-duty, bottom-rolling sliding door hardware engineered for smooth operation and long-term performance. Features 4" (102 mm) tapered DR4T rails top and bottom and CRL’s Wedge-Lock® Glass Securing System for reliable glass retention in both door and fixed panels. Rails are custom fabricated to your specifications and may include an optional bottom-rail lock.
Key capacity limits: maximum door width 48" (1.22 m), maximum door height 108" (2.74 m), and maximum door weight 234 lb (106 kg). Ideal for commercial and residential applications where a durable, low-profile bottom rolling sliding door system and architectural finishes are required.
Order the CRL SDR bottom rolling sliding door system (SDR1ASA) with tapered 4" DR4T rails and choose from seven architectural finishes—contact CRL to get a custom quote and lead time.
Specifications

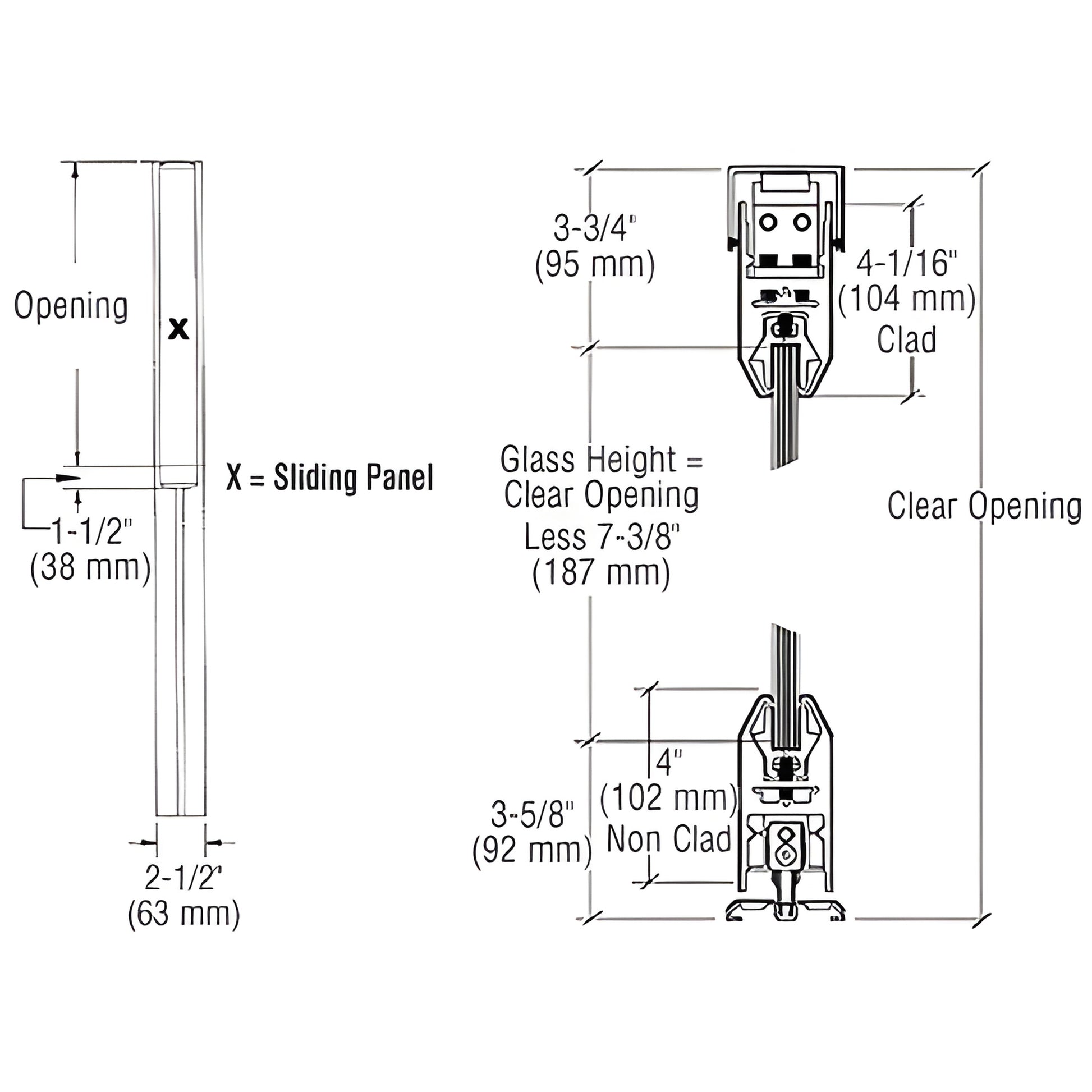

CAD Drawings - pdf
