CRL
CRL Satin Anodized XO/OX Sliding Door System - 4" Top, 6" Bottom Rail
CRL Satin Anodized XO/OX Sliding Door System - 4" Top, 6" Bottom Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6SDR2CSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XO or OX
Finish/Color
Satin Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
2
Overview

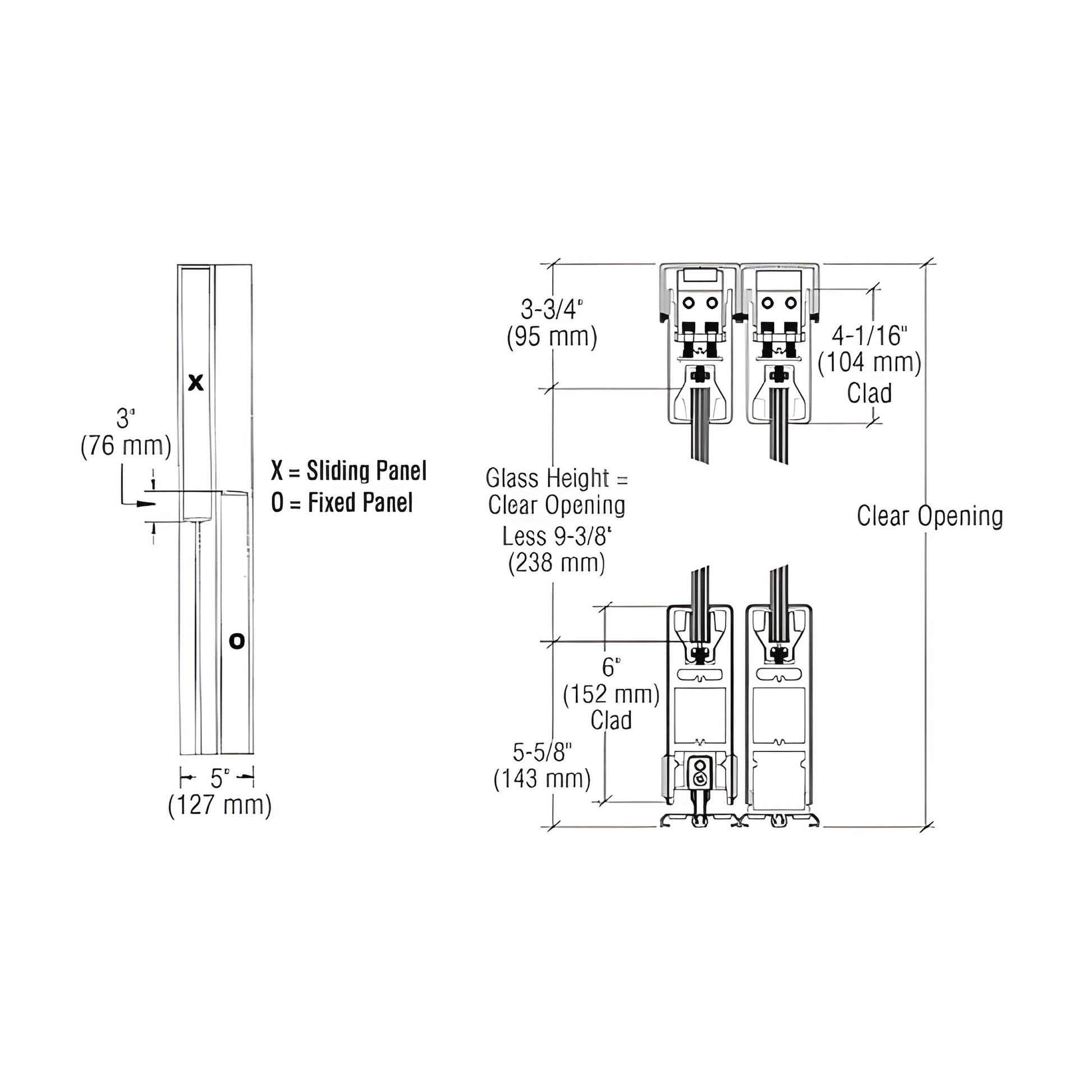

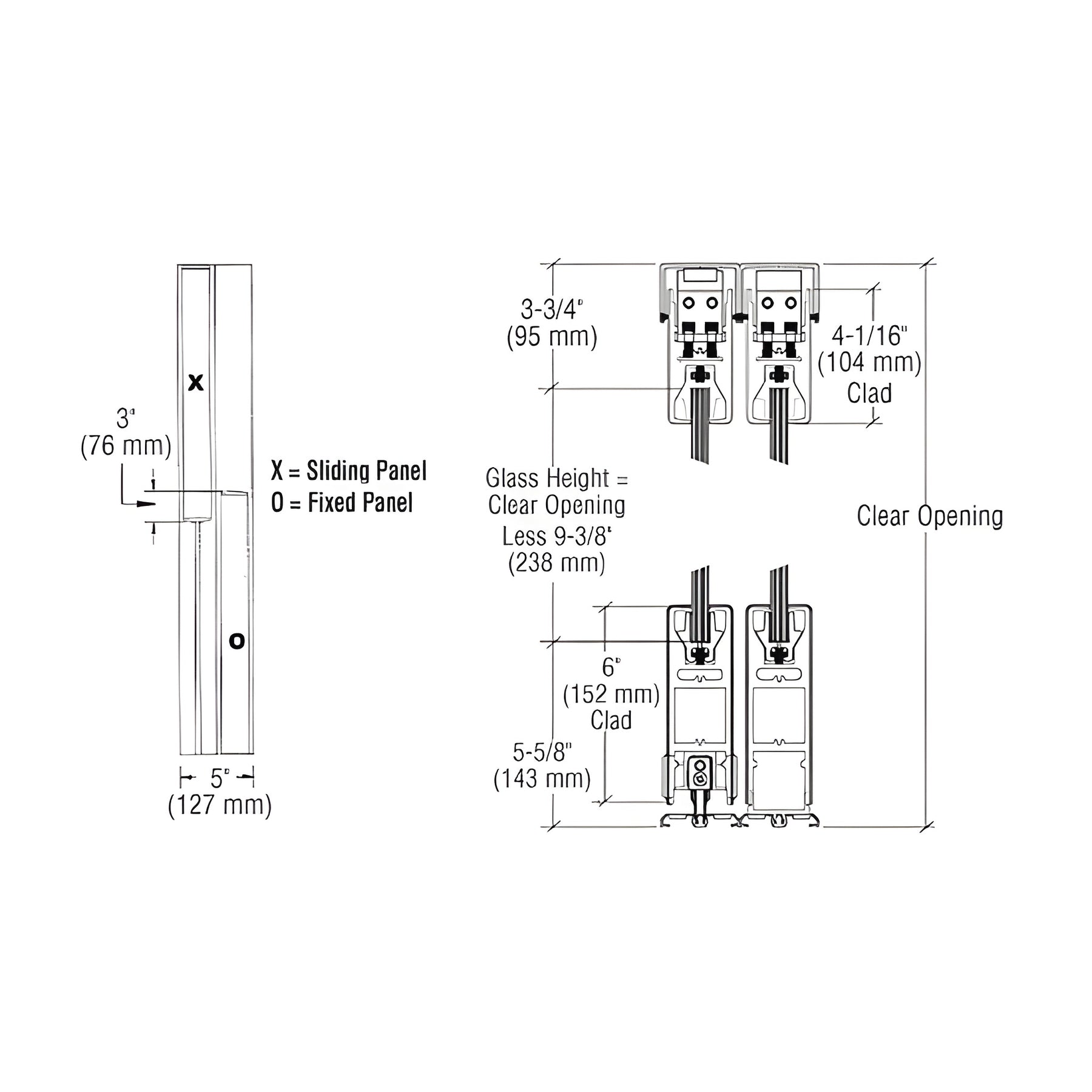

- 4" (102 mm) Square DR4S Series Top Rails with 6" (152 mm) Square DR6S Series Bottom Rails
- Available in seven architectural finishes
The CRL SDR Bottom Rolling Sliding Door System (SKU: 6SDR2CSA) is a bottom-rolling sliding door system that uses the proven Wedge-Lock® Glass Securing System from the DR4S and DR6S Series. Designed for custom fabricated sliding door installations, the system can be ordered with or without locks in the bottom rail.
Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lb (106 kg). Ideal for commercial and residential applications requiring durable bottom rolling hardware and clean architectural aesthetics.
Contact CRL Customer Service to request a quote or confirm specifications.
Specifications
CAD Drawings - pdf
