CRL Satin Anodized XO/OX Sliding Door Hardware 4in Top & Bottom Rail
CRL Satin Anodized XO/OX Sliding Door Hardware 4in Top & Bottom Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR2CSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) Square Rails top and bottom and the patented Wedge-Lock® Glass Securing System for reliable, tool-free glass retention. DR4S Series rails are custom fabricated to your project specifications for all door and fixed panels, and doors may be ordered with or without bottom-rail locks. Designed for commercial and residential applications, this bottom-rolling sliding door system supports doors up to 48" (1.22 m) wide, 108" (2.74 m) high, and a maximum weight of 234 lb (106 kg). Available in seven architectural finishes to match your design aesthetic.
Order CRL SDR Bottom Rolling Sliding Door System SKU 4SDR2CSA or contact us for a custom quote.
Specifications

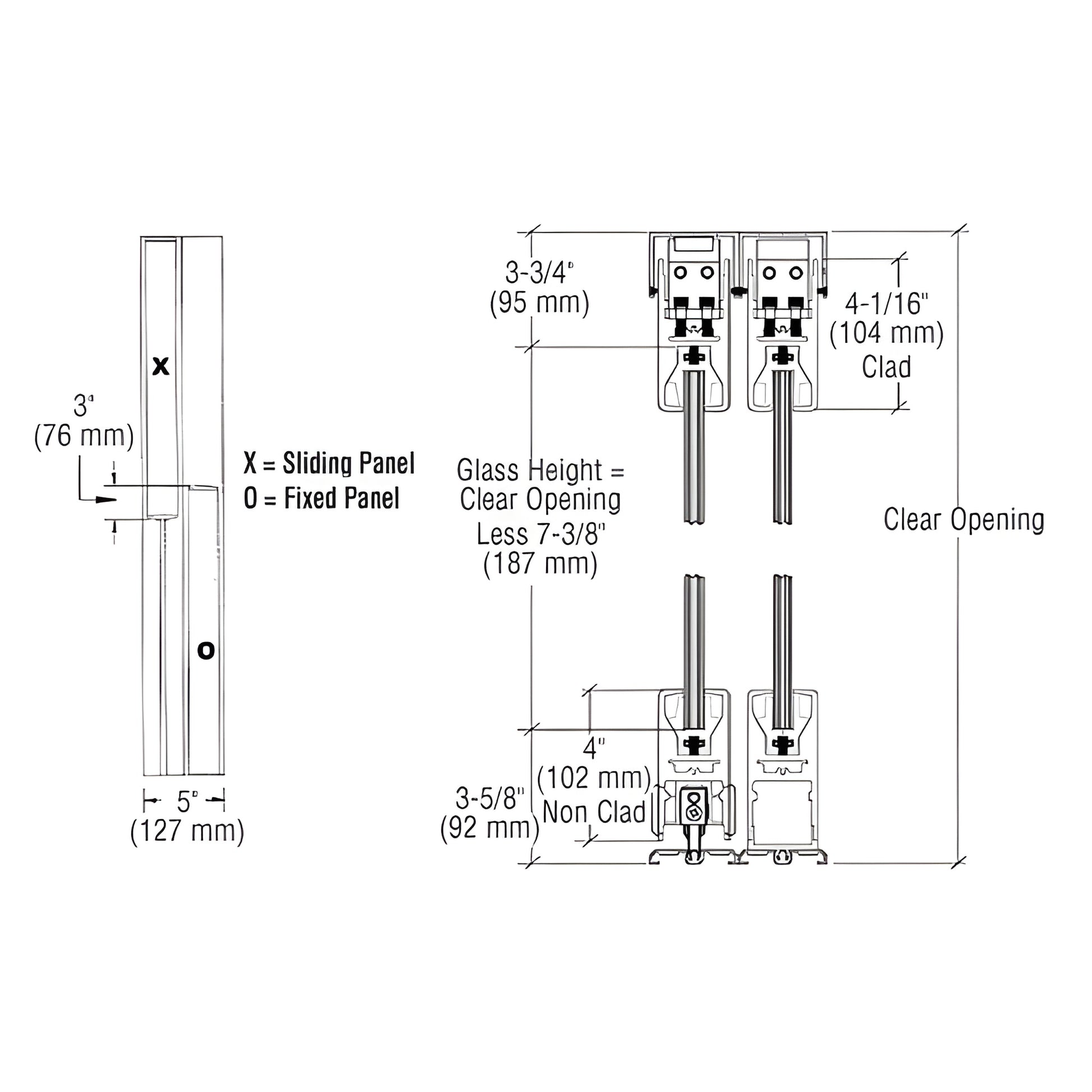

CAD Drawings - pdf
