CRL Satin Anodized XO/OX Commercial Sliding Door 4in Tapered Rail
CRL Satin Anodized XO/OX Commercial Sliding Door 4in Tapered Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDR2CSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XO/OX
Door Type
Sliding
Finish/Color
Satin Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Tapered DR4T Series Door Rails
- Available in Seven Architectural Finishes

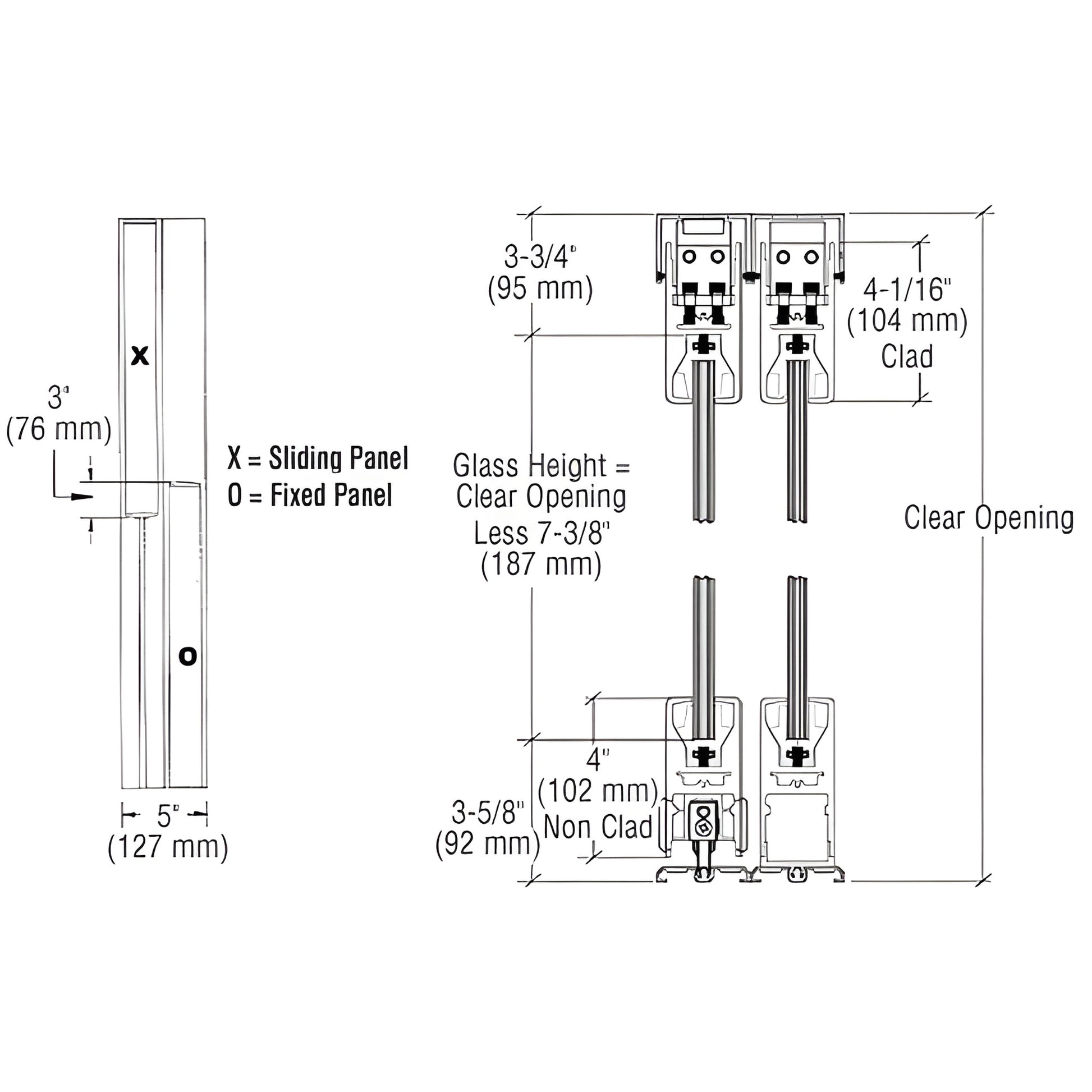

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR2CSA) features 4" (102 mm) tapered DR4T rails top and bottom and uses the patented Wedge-Lock® Glass Securing System for secure, reliable glazing. DR4T series rails are custom fabricated for door and fixed panels to your specifications and support bottom rolling operation for smooth, durable performance. Doors can be ordered with or without bottom-rail locks. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lb (106 kg).
Ideal for commercial and residential frameless glass applications requiring a bottom rolling sliding door system with tapered rails and Wedge-Lock glazing. Contact CRL to specify finishes, lock options, and custom rail fabrication for your project.
Specifications
CAD Drawings - pdf
