CRL Satin Anodized XOX Sliding Door System 4in Top & Bottom Rails
CRL Satin Anodized XOX Sliding Door System 4in Top & Bottom Rails
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR3DSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes
The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR3DSA) features 4" (102 mm) square DR4S series rails top and bottom and uses the proven Wedge-Lock® Glass Securing System for reliable glass retention. These 4 inch square rails are custom fabricated to your specifications for both door and fixed panels. Doors can be supplied with or without bottom-rail locks. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lb (106 kg). This bottom rolling sliding door system is ideal when durable, low-profile hardware and custom architectural finishes are required.
Specifications

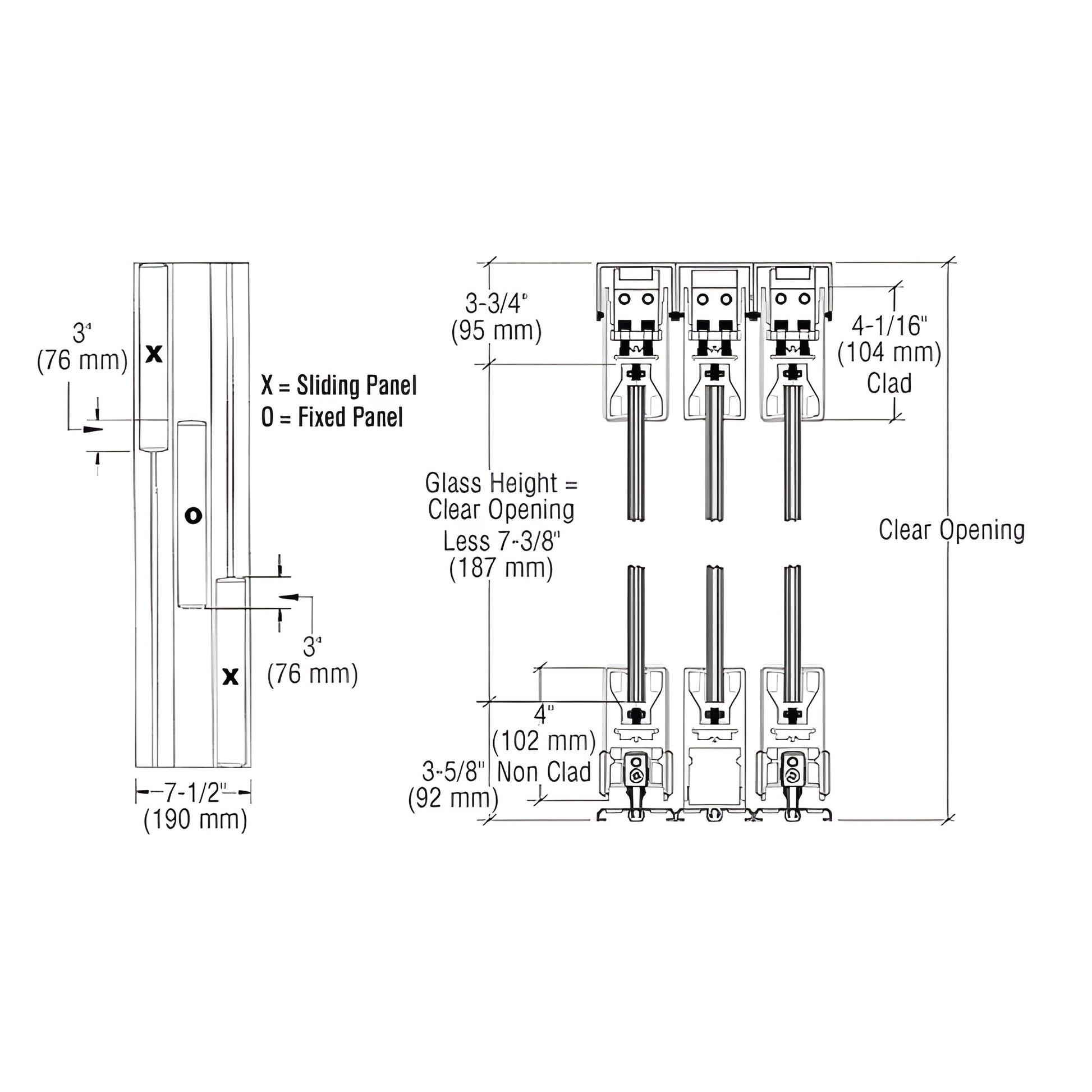

CAD Drawings - pdf
