CRL XOX SSR Satin Anodized 4 in Square Sliding Door Hardware
CRL XOX SSR Satin Anodized 4 in Square Sliding Door Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SSR3DSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XOX
Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
3
Overview
- 4" Square DR4S Series Door Rails for sliding panels and 4" Square SR4S Series Sidelite Bottom Rails
- Available in seven architectural finishes

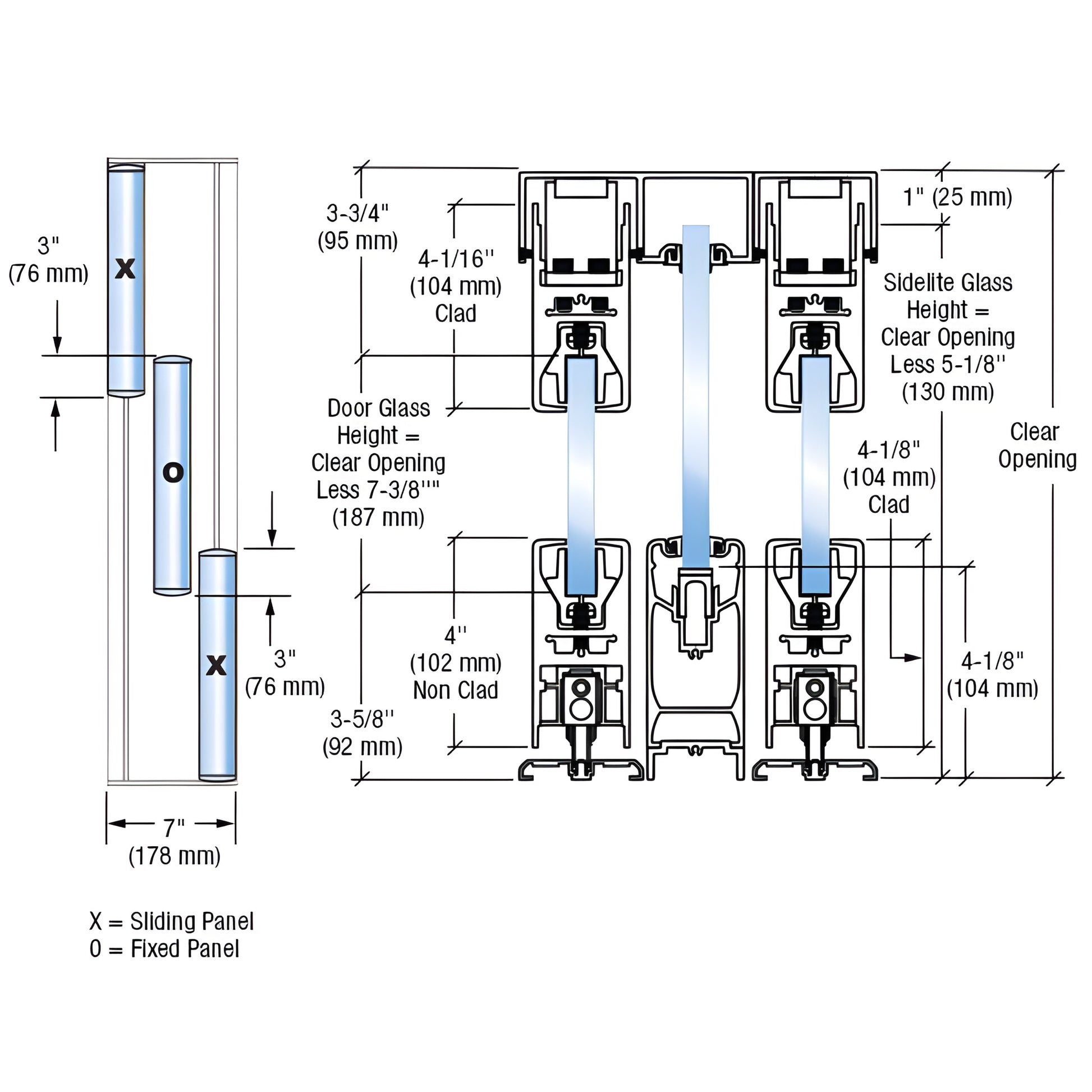

CRL SSR Bottom Rolling Sliding Door System (SKU: 4SSR3DSA) features 4" (102 mm) square rails and the proven Wedge-Lock® Glass Securing System in the DR4S door rails. Bottom rails for sliding panels can be specified with or without locks.
Fixed sidelites use SR4S Series rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications for a precise fit and finish.
Order the CRL SSR bottom rolling sliding door system with 4" square rails for durable, customizable bottom rolling doors—contact CRL to configure yours today.
Specifications
CAD Drawings - pdf
