CRL Satin Anodized XX Format Sliding Glass Door - 4in Top/Bottom Rail
CRL Satin Anodized XX Format Sliding Glass Door - 4in Top/Bottom Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 4SDR2BSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes

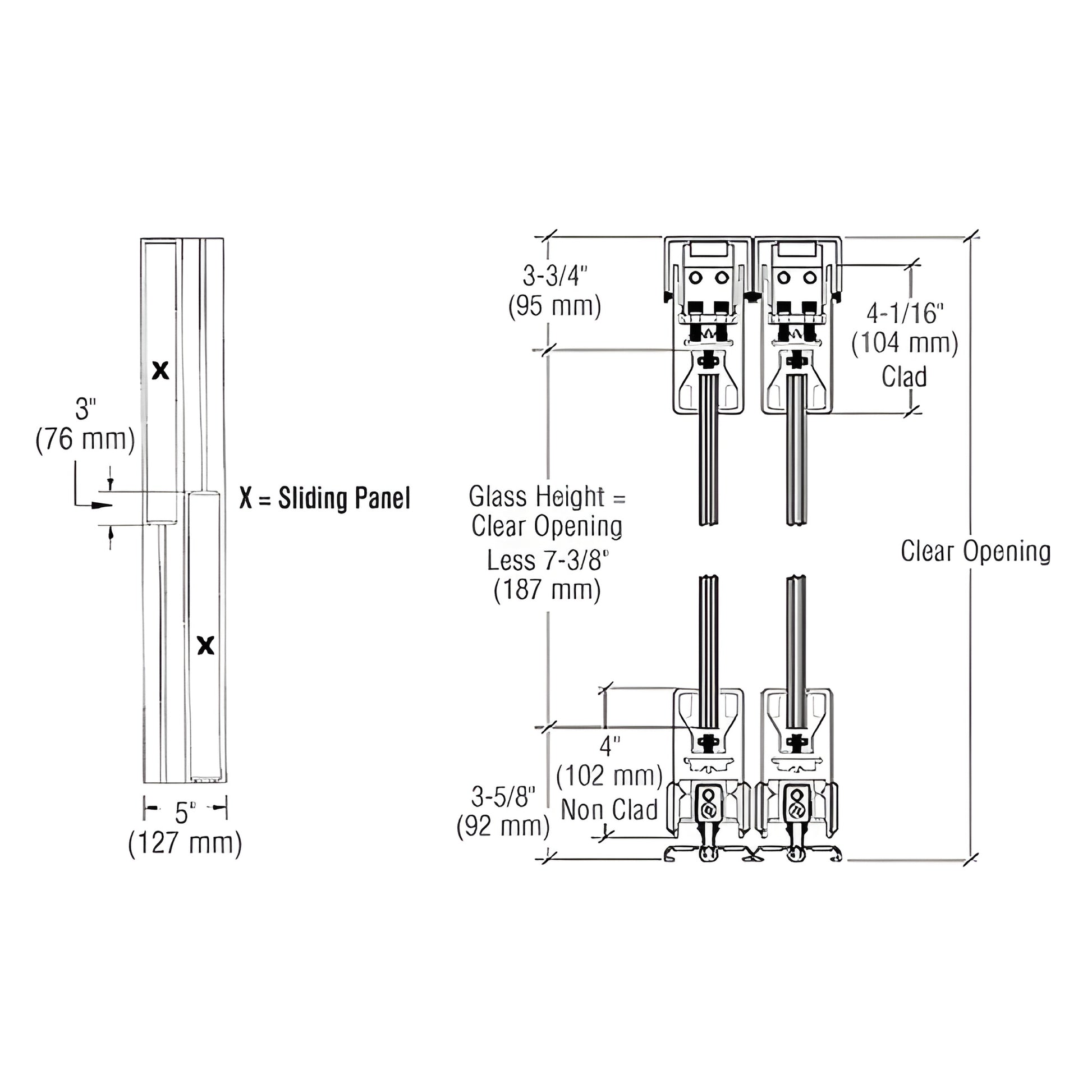

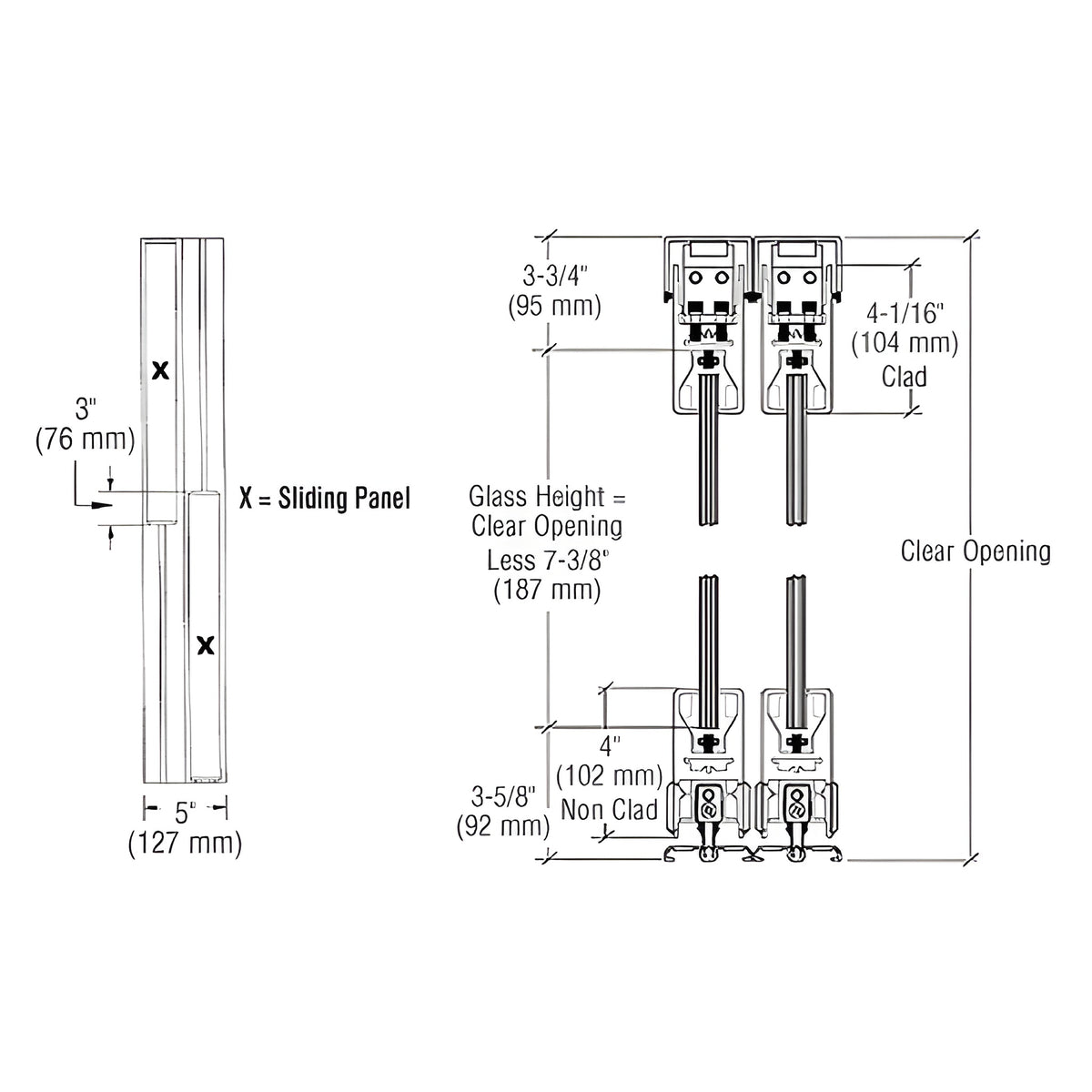

The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR2BSA) features 4" (102 mm) square rails top and bottom and the proven Wedge-Lock® Glass Securing System for reliable glass retention. DR4S Series rails are custom fabricated to your specifications for both door and fixed panels. Doors can be ordered with or without locks integrated into the bottom rail. Maximum door width: 48" (1.22 m); maximum height: 108" (2.74 m); maximum weight: 234 lb (106 kg). Ideal for architectural interior and exterior applications requiring a durable, bottom-rolling sliding door system with square rails and secure glass mounting.
Order your custom-fabricated SDR bottom rolling sliding door system today.
Specifications
CAD Drawings - pdf
