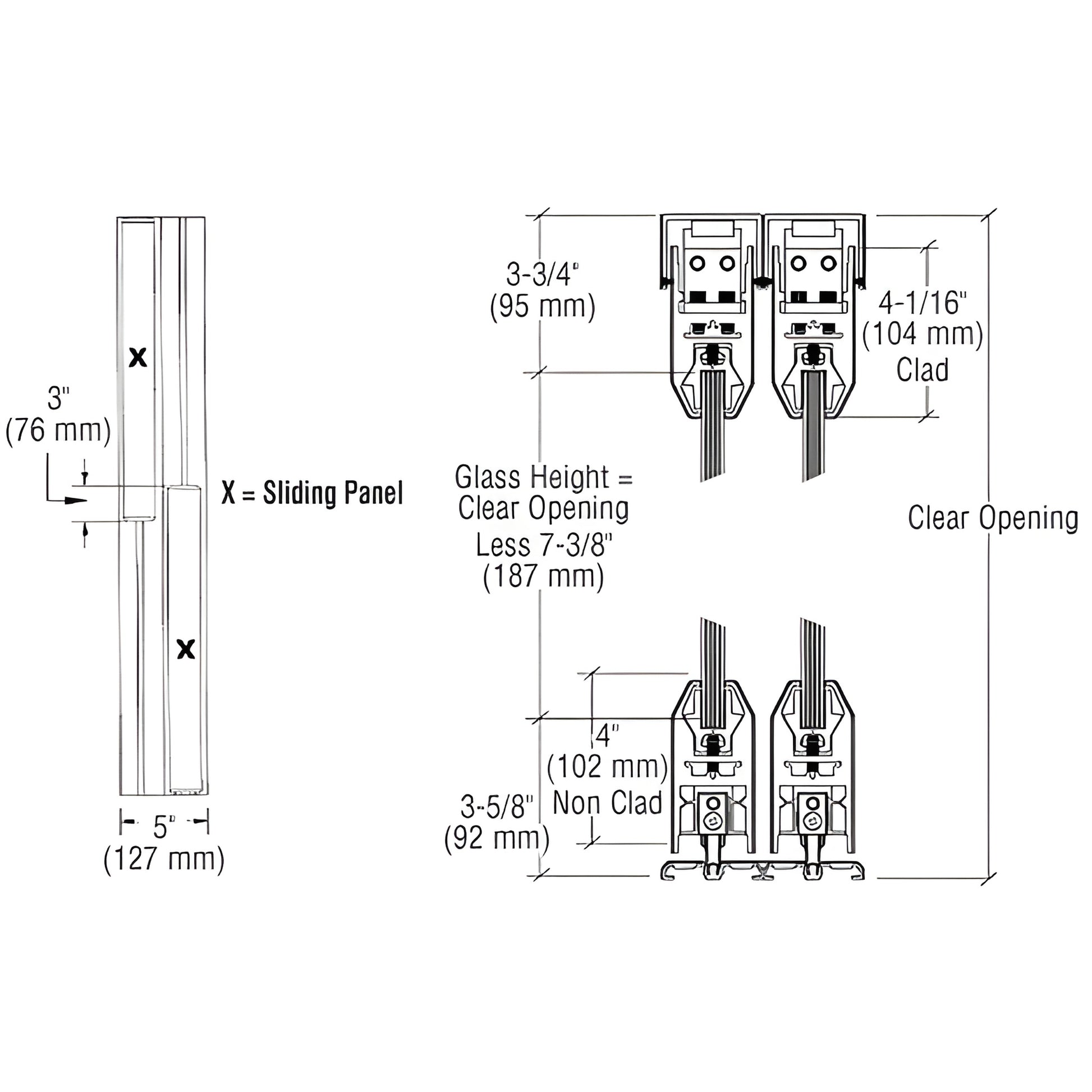

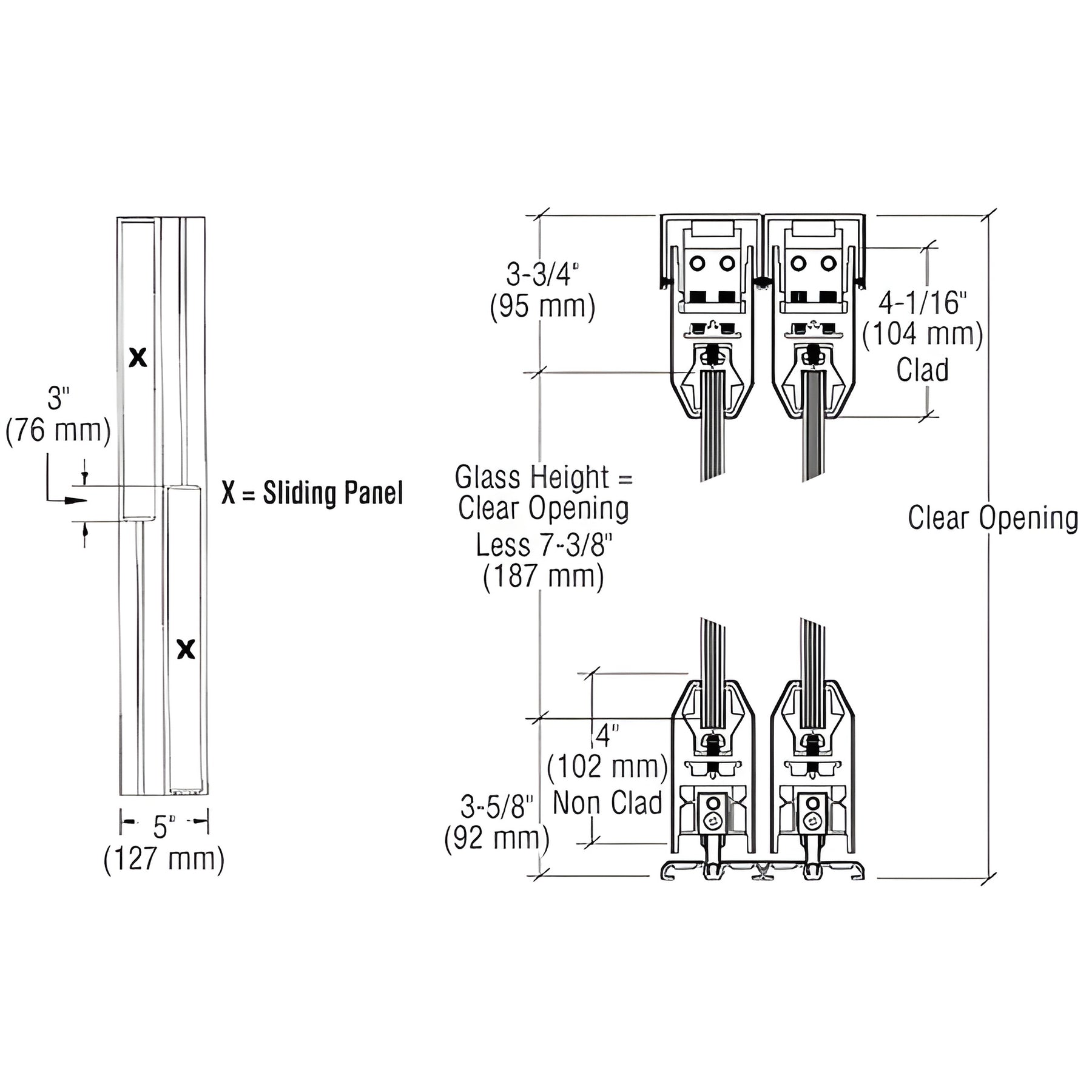

• SDR2BSA bottom-rolling sliding door system technical drawing showing 4-inch DR4T rails and key dimensions
1 1

CRL

CRL XX Format Satin Anodized Sliding Door - 4 in Tapered Rails

CRL XX Format Satin Anodized Sliding Door - 4 in Tapered Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR2BSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
X X
Door Type
Sliding
Finish/Color
Satin Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR2BSA) features 4" (102 mm) tapered DR4T rails top and bottom and CRL's proprietary Wedge-Lock® glass securing system for secure, reliable glass retention. DR4T Series door rails are custom fabricated to your specifications and are suitable for both door and fixed panels. Doors may be ordered with or without bottom-rail locks for optional keyed security. Designed for residential and commercial installations, this bottom-rolling sliding door system supports doors up to 48" (1.22 m) wide and 108" (2.74 m) high, with a maximum door weight of 234 lbs. (106 kg).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Contact CRL Customer Service to confirm exact shipping weights, request custom rail fabrication, or to place an order for the SDR2BSA bottom rolling sliding door system.
