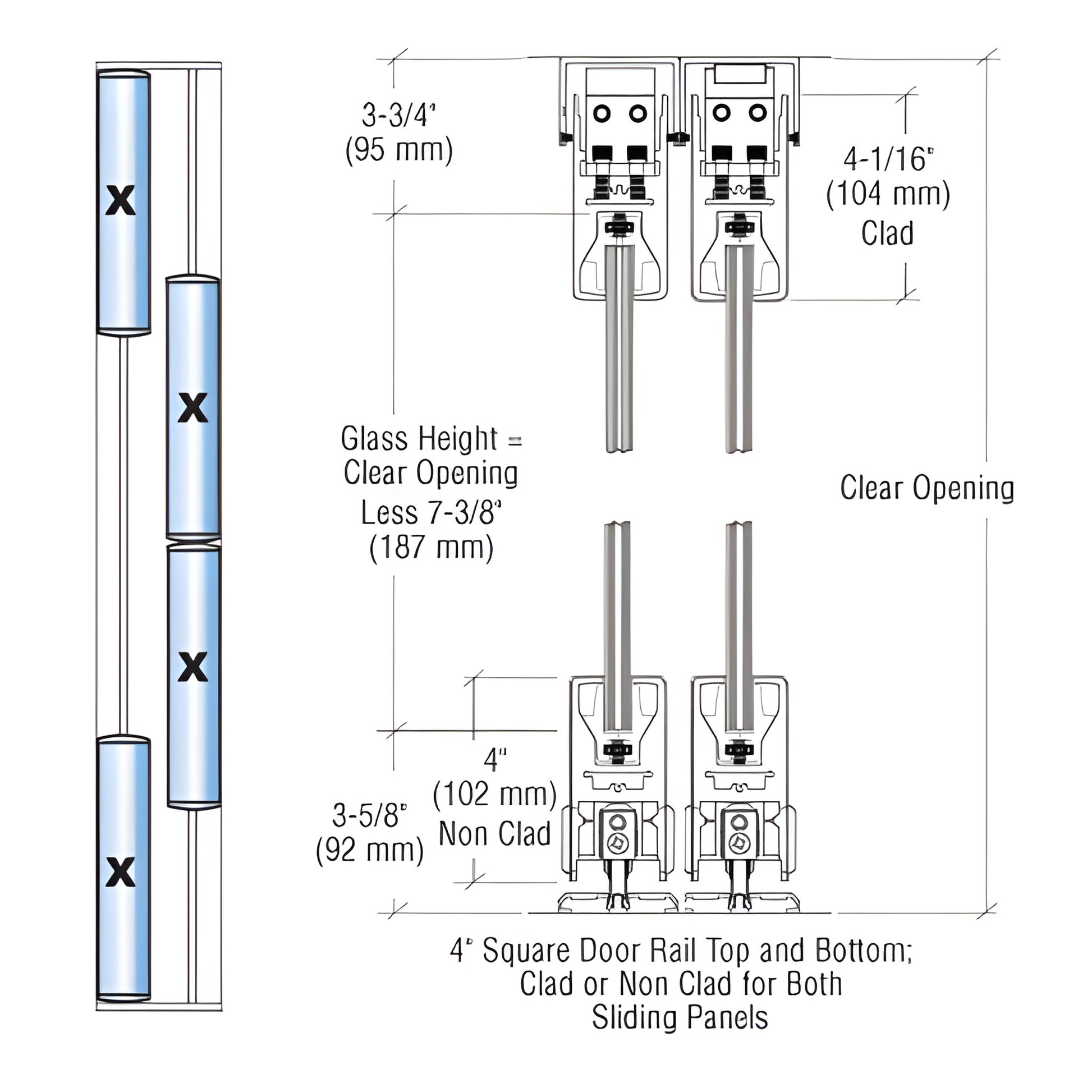

• CRL SDR bottom-rolling sliding glass door system diagram (SKU 4SDR42FSA), 4" satin anodized square rails, specs and sizes.
1 1

CRL

CRL Satin-Anodized XXXX Format Sliding Door System 4" Top/Bottom Rail

CRL Satin-Anodized XXXX Format Sliding Door System 4" Top/Bottom Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR42FSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR42FSA) features 4" (102 mm) square top and bottom rails and uses the proven Wedge-Lock® Glass Securing System for secure, repeatable glass retention. DR4S Series door rails are custom fabricated to specification for both operable doors and fixed panels, making this system ideal for commercial and architectural glass sliding door installations.
  • Max door width: 48" (1.22 m)
  • Max door height: 108" (2.74 m)
  • Max door weight: 234 lb (106 kg)

Doors are available with or without locks in the bottom rail and come in seven architectural finishes for design flexibility. The system is a long-lasting choice for bottom-rolling glass doors where heavy-duty performance and clean aesthetics are required.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before you complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Order the CRL SDR Bottom Rolling Sliding Door System for reliable, custom-fabricated glass sliding doors—contact CRL to get started.
