CRL Satin Brass Low-Profile Square Door Rail with Lock for 1/2" Glass

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available Without Locks
• Matching Sidelite Rails Available

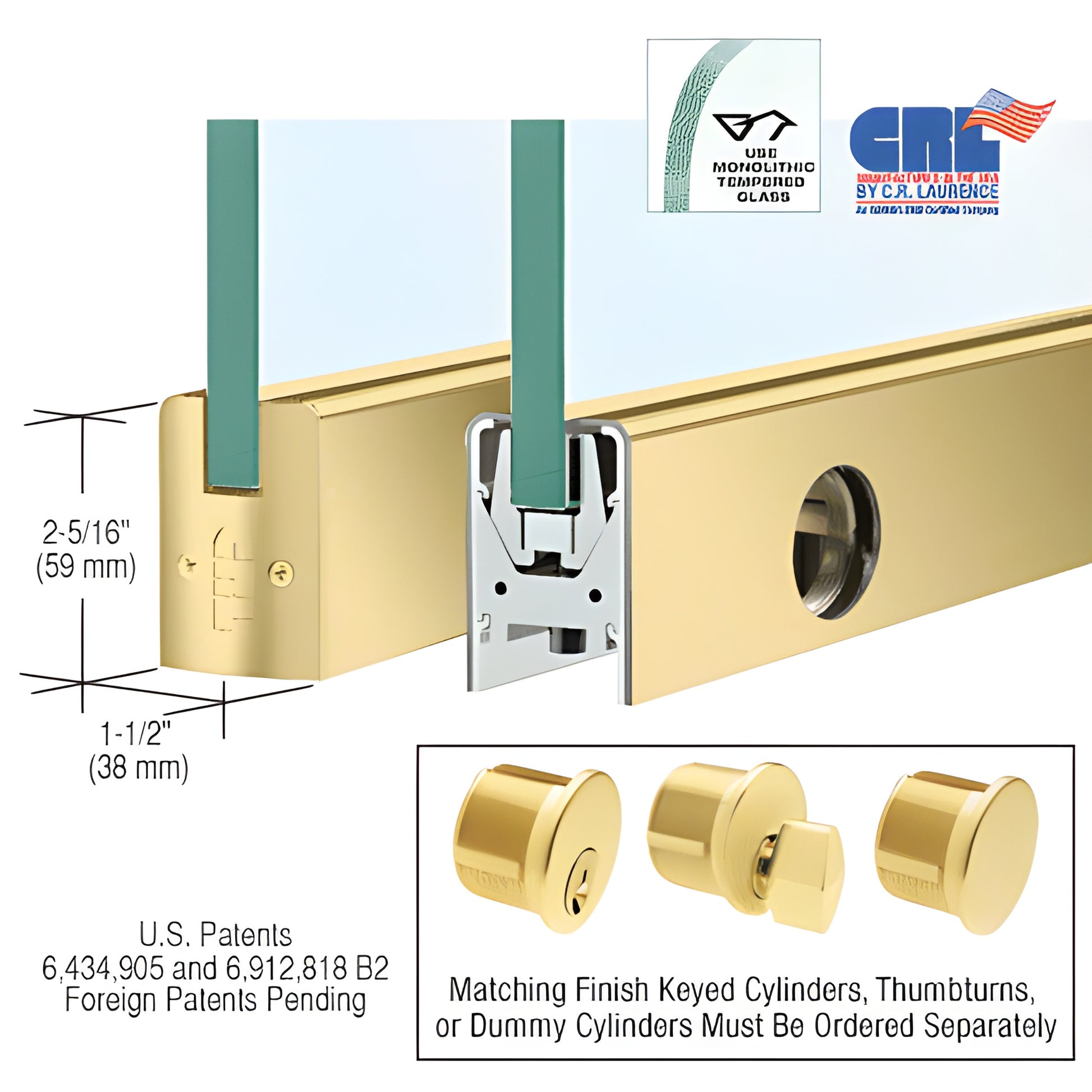

Our CRL Low Profile Door Rail (SKU: DR2SSB12CL) measures just 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails come complete with End Caps, installation instructions, and adjustment wrenches for fast, ready-to-install glass door assembly.

NOTE: Actual Product Height: 2-5/16” (59 mm)

The Wedge-Lock® system delivers secure glass retention plus the fastest installation times of any door rail system CRL offers. Experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated with End Caps installed; after mounting the rail, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The built-in Adjustable Door Alignment System lets you fine-tune the door up to 1/8" (3 mm) toward or away from the jamb without removing the door—standard on both top and bottom rails. To adjust after installation, remove the End Cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide supports pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Other advantages of Wedge-Lock® Door Rails:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass (select models)
• Rigid single-component housing resists shifting or loss of adjustment over time
• Internal components remain assembled—no removal required before installation
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are offered in several standard architectural finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:

• All door rails are supplied with the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
