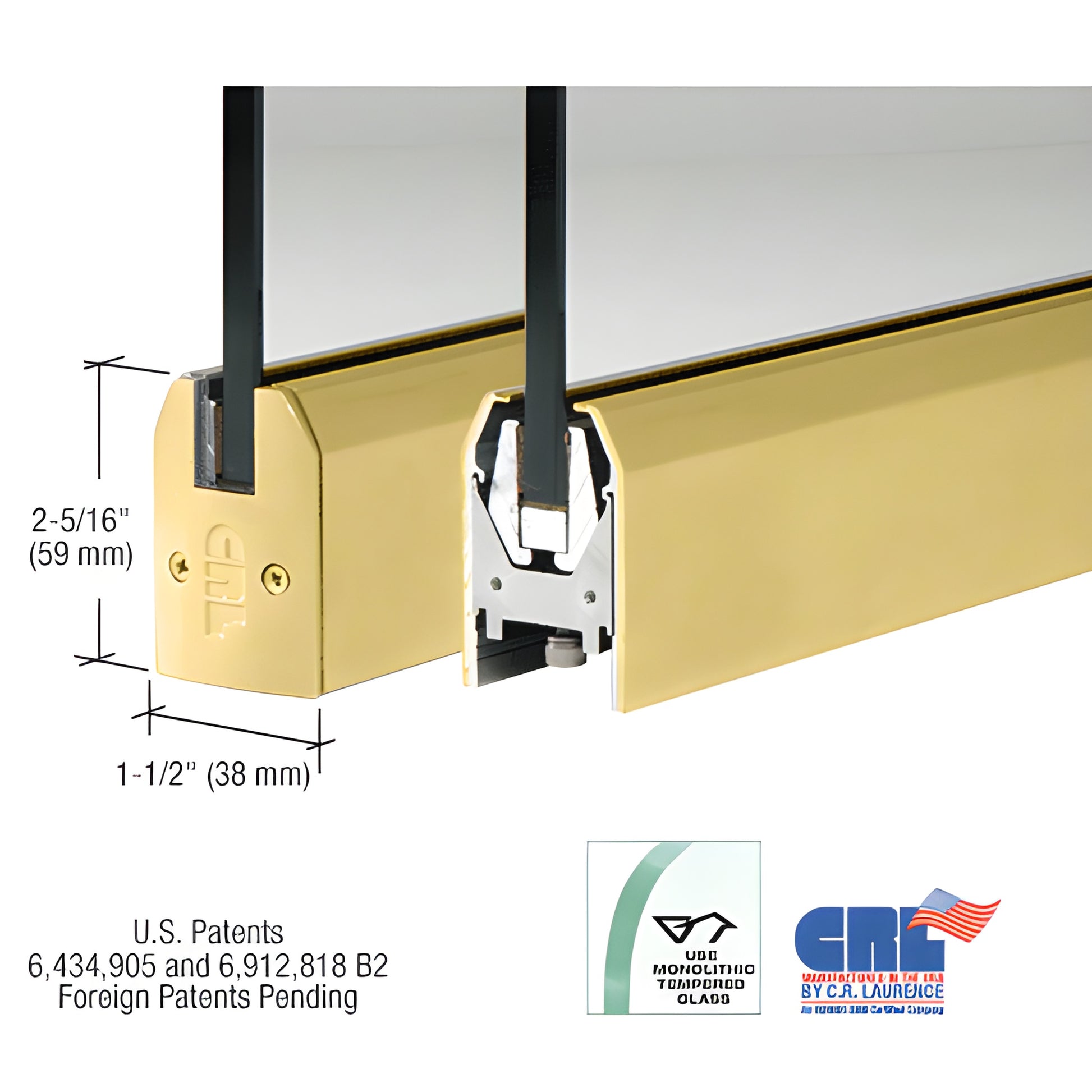

• Satin brass low-profile door rail, 2-5/16 in tall x 1-1/2 in wide, for 1/2 in tempered glass with Wedge-Lock system
1 1

CRL

CRL Satin Brass 1/2 in Glass Door Rail, Custom Length, No Lock

CRL Satin Brass 1/2 in Glass Door Rail, Custom Length, No Lock

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DR2TSB12C
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Brass
Glazing Thickness
1/2 in. (12 mm)
Includes Lock
No
Material
Aluminum Clad with Brass
Nominal Height
2-5/16 in. (59 mm)
Profile
Tapered
Removable Covers
Yes
Width
1-1/2 in. (38 mm)

Overview

  • Custom Length for 1/2" (12 mm) Glass
  • Use Monolithic Tempered Glass
  • Patented Wedge-Lock® Glass Securing System
  • Low Profile Rails are Only 2-5/16" (59 mm) Tall
  • Available in Several Stock Architectural Finishes - Custom Finishes Available
  • Available Without Locks Only
  • Matching Sidelite Rails Available

SKU: DR2TSB12C

CRL Low Profile Door Rail measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and integrates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). Low-profile door rail for 1/2" (12 mm) tempered glass — ready-to-install with End Caps, installation instructions, and adjustment wrenches included.

NOTE: Actual Product Height: 2-5/16" (59 mm)

The Wedge-Lock® system delivers fast, secure glass retention and one of the quickest installation times in the industry—experienced installers can prepare a door in under ten minutes. Rails ship completely fabricated with End Caps installed; after rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The built-in Adjustable Door Alignment System lets you shift the door 1/8" (3 mm) toward or away from the jamb without removing the door. This adjustment is standard on both top and bottom rails. To access adjustments after installation, remove the End Cap to reveal three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide supports pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Other benefits of Wedge-Lock® Door Rails:

  • Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
  • Rigid single-component housing that resists shift and maintains adjustment
  • Internal components do not require removal before installation
  • Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails feature the built-in Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.

Finishes: available in several standard architectural finishes; custom finishes and widths quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e
