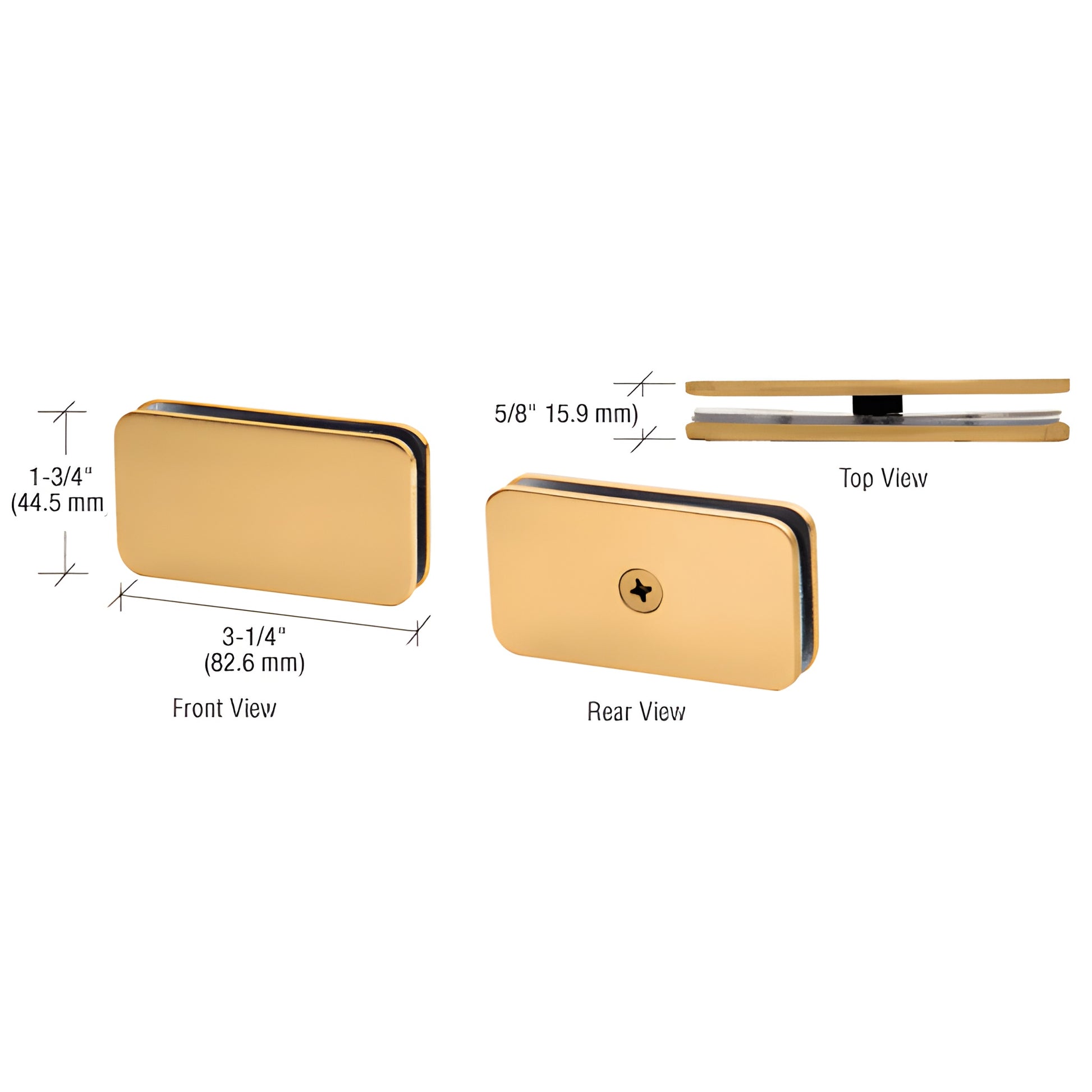

CRL Satin Brass 180° Glass Clamp for Frameless Shower Door

• Fits 5/16" to 1/2" (8 to 12 mm) thick monolithic tempered glass
• Designed to secure fixed panels in frameless shower enclosures
• Solid brass construction with finish options to match shower door hinges
• Preferred alternative to U-channel for an all-glass look (glass fabrication required)

Solid brass CRL Standard 180 Degree Glass Clamps (SKU: GCB180SB) are engineered for fixed transom and inline panel applications in frameless shower enclosures, providing a clean, contemporary alternative to traditional U-channel systems.


These solid brass clamps preserve the frameless appearance while offering durable corrosion-resistant performance and coordinated finishes to match our Shower Door Hinges. Each clamp includes the appropriate mounting screws and one set of clear gaskets; extra Cat. No. UCG77 clear gaskets are available separately for 5/16" (8 mm) glass.

SPECIFICATIONS:
Materials: Solid Brass
Available Finishes: Shown at top of page
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm) — use monolithic tempered glass
Fabrication Required: Stud fits between panels with a 7/16" (11 mm) gap or glass may be notched around the screw stud for a tighter gap
Includes: One set of clear gaskets and mounting screws
NOTE: An additional set of gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass

Brass Finish Advisory:

Order GCB180SB solid brass 180° glass clamps for a durable, all-glass frameless shower solution — add to cart or contact us for volume pricing.
