CRL Satin Brass 3/8" Low-Profile Square Glass Door Rail w/ Lock, Custom

• Custom length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails — 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

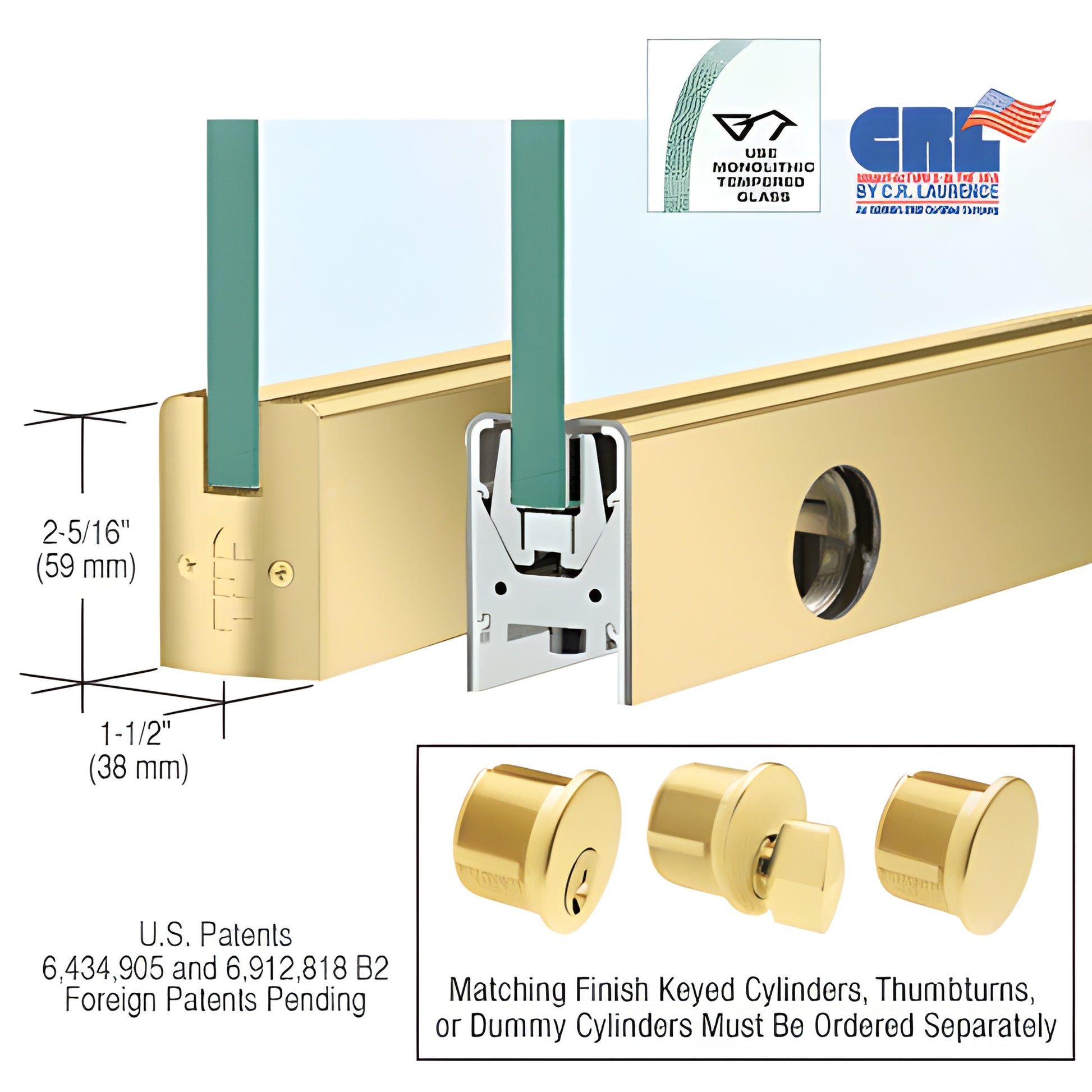

Our CRL Low Profile Door Rail (SKU: DR2SSB38CL) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and integrates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship ready-to-install with End Caps, installation instructions, and adjustment wrenches.

NOTE: Actual product height: 2-5/16” (59 mm).

The Wedge-Lock® system secures monolithic tempered glass and delivers industry-leading installation speed—experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated; after mounting, installers simply attach the door arm or pivot (not included) to the preassembled, adjustable door alignment slide. The adjustable alignment system provides ±1/8" (3 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door.

To access adjustments after installation, remove the End Cap to reveal three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide ±1/8" (3 mm). The low-profile slide enables pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), allowing fabrication for vertically out-of-square openings.

Other benefits of Wedge-Lock® Door Rails:

• Models available to accept 3/8" to 3/4" (10–19 mm) glass
• Rigid single-component housing that resists shift and long-term misalignment
• Internal components remain in place during installation (no pre-removal required)
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots must be ordered separately to meet project requirements.

CRL Wedge-Lock® Door Rails are offered in multiple standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering & Inclusions:
• All door rails ship with the
