CRL Satin Brass 4" Pocket Door Header - One-Sided, Custom Length
Item# DCH41SSBC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
Glass Pocket-Single Door Opening
Finish/Color
Satin Brass
Glazing Thickness
3/8 in. (10 mm)
Height
1-3/4 in. (44 mm)
Width
4 in. (102 mm)
- Available in 4" or 4-1/2" (101.6 or 114.3 mm) widths for 3/8" or 1/2" (10 or 12 mm) glass
- Offered as one- or two-pocket configurations and as single- or double-sided headers
- Multiple architectural finishes available for coordinated storefront and interior design

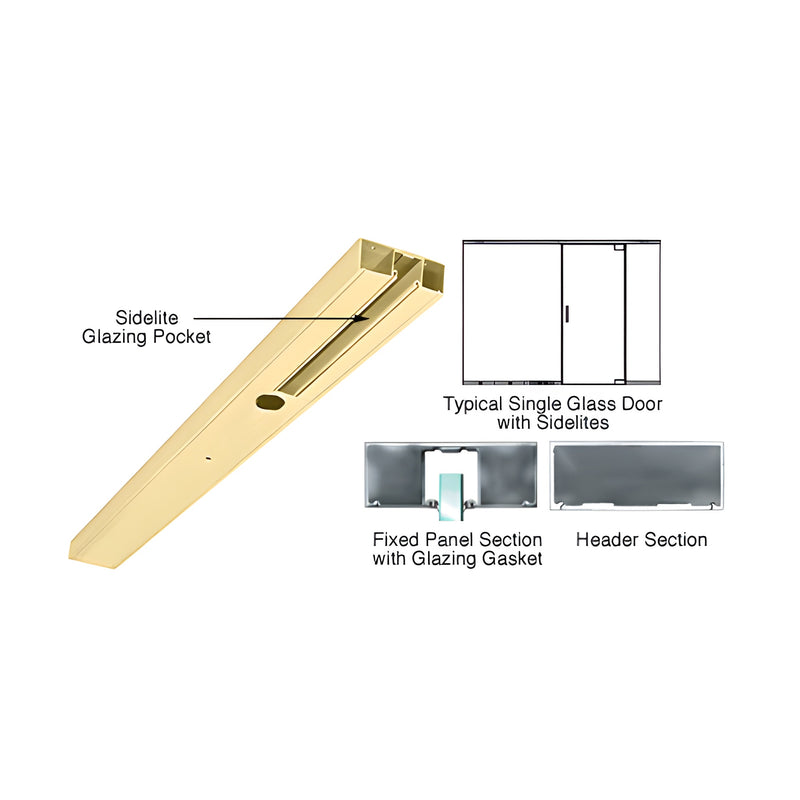

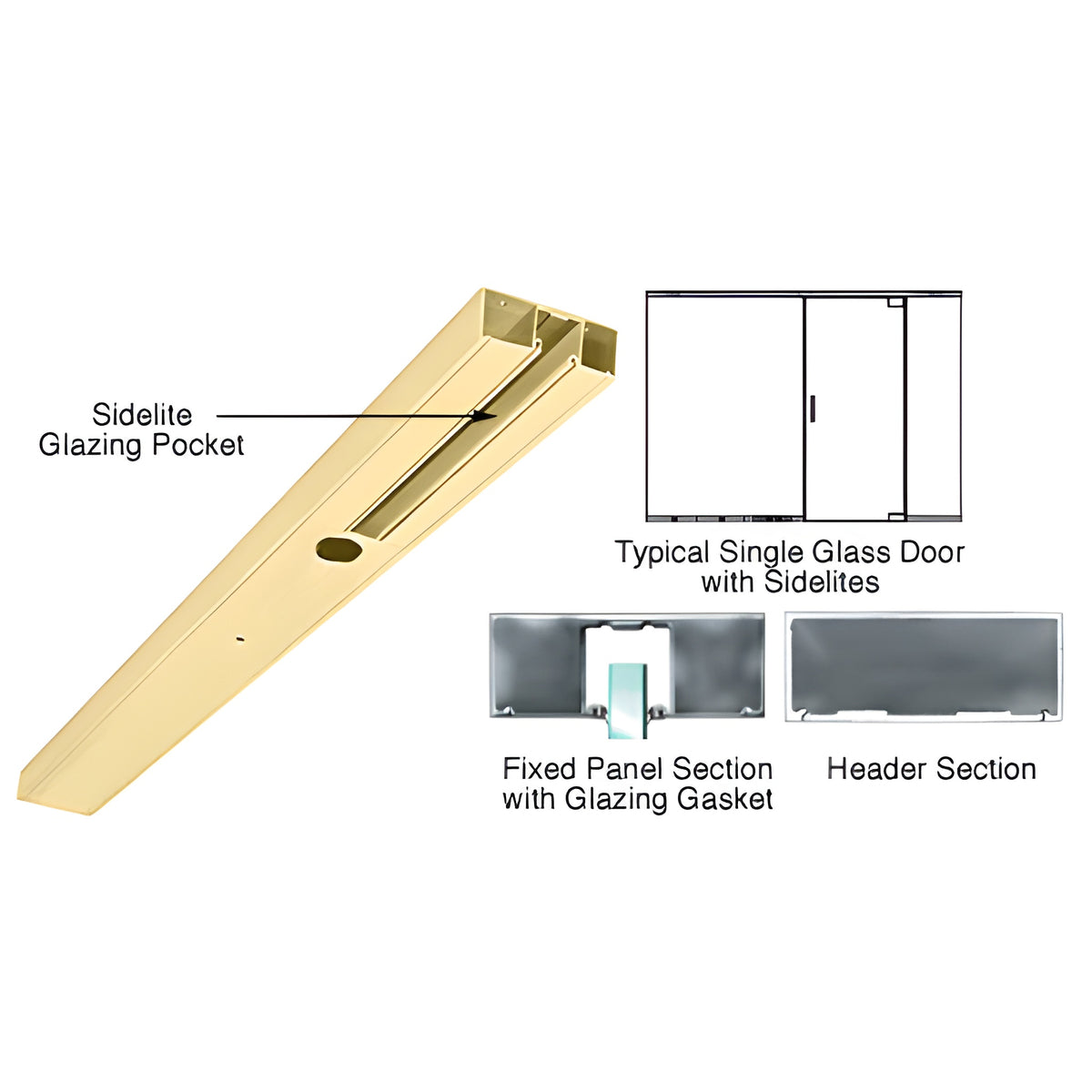

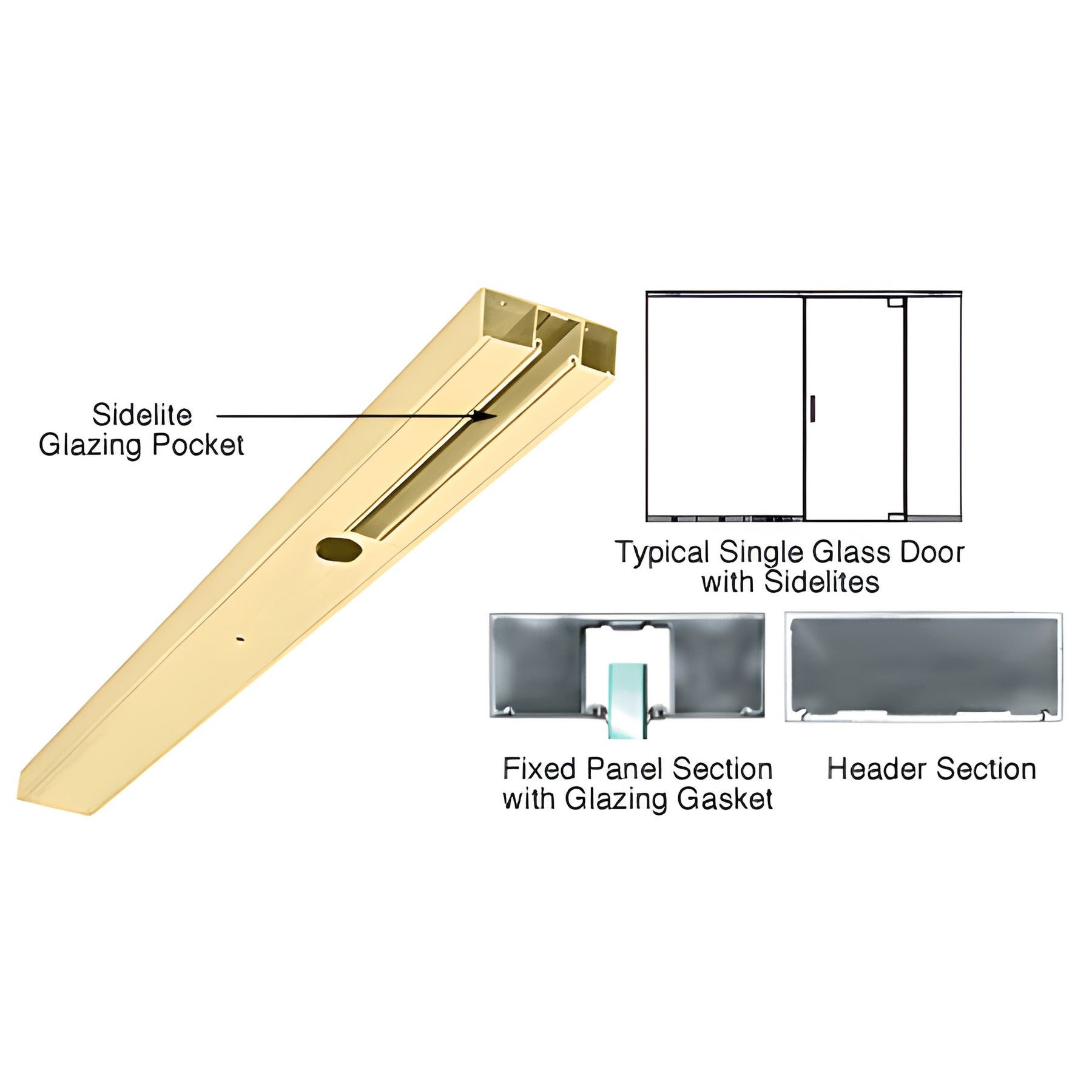

CRL's snap-in glazing insert provides a simple solution when a continuous header is required over doors with fixed sidelites. Instead of using a separate extrusion beside the header, the snap-in insert fits on either side of the door pocket and creates a continuous header with glazing pockets for sidelites. Glass is secured with the supplied top-load roll-in gasket for reliable retention. For anchoring the bottom of fixed sidelites, pair this header with the UC38 Series U-Channel—available in five finishes: Clear Anodized, Duranodic Bronze, Polished Stainless Steel, Brushed Stainless Steel, and Polished Brass. For technical guidance, contact CRL Technical Sales. SKU: DCH41SSBC
Most shipping weights are approximate and have not been verified. If you need exact shipping weight to calculate costs prior to ordering, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary with monitor settings.
Brass Finish Advisory:
Brass finishes are durable but can oxidize over time, developing a natural tarnish regardless of packaging or storage. See the Brass Finish Disclaimer in the Technical References section for care and maintenance recommendations.
Learn more or place an order—contact CRL Technical Sales or Customer Service today.
