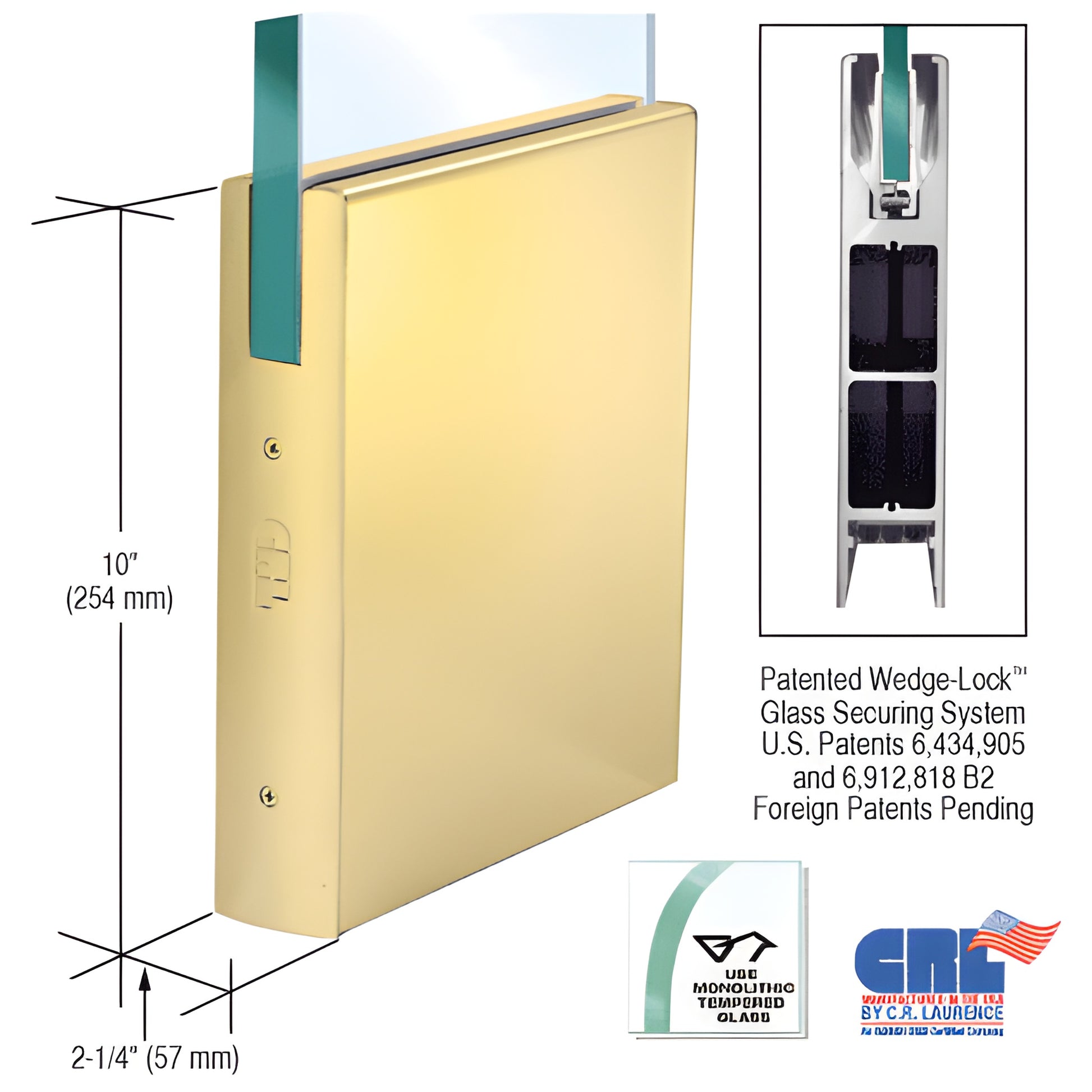

CRL Satin Brass 10" Sq Door Rail 5/8" Glass - Custom Length, No Lock

• Custom Length for 5/8" (16 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance product, the CRL Wedge-Lock® Door Rail System (SKU: DR10SSB58C), uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for commercial and architectural glass doors, this system secures monolithic tempered glass from the bottom using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, angled extrusions engage an angled groove in the rail to generate very high clamping force (over 900 lbs. in the 9" corner rail), providing exceptional hold for 5/8" (16 mm) glass and other supported glass thicknesses.

NOTE: Actual product height: 10" (254 mm).

Highlights and long-tail features:

• Fast installation for commercial installers — doors can be prepared in under ten minutes.
• Completely fabricated, ready-to-install rails with end caps preinstalled.
• Adjustable Door Alignment Slide (standard top and bottom) allows 1/8" (3 mm) in/out adjustment without removing the door.
• Low-profile adjustable slide accommodates pivots with slotted grooves and non-standard setback requirements.
• Available models accept 3/8" to 3/4" (10 to 19 mm) glass; internal components remain installed during fitting.
• Rigid single-component housing resists shifting and maintains long-term alignment.
• Glass securing pads engineered for longevity in extreme environments.
• Built-in jamb alignment block included; arms and pivots ordered separately to meet job specs.

After installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the outer bolts adjust the slide ±1/8" (3 mm). Closer arms and floor or overhead pivots must be ordered separately. Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturns are sold separately.

Available in multiple stock architectural finishes with custom finishes and custom widths available by quote. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e
