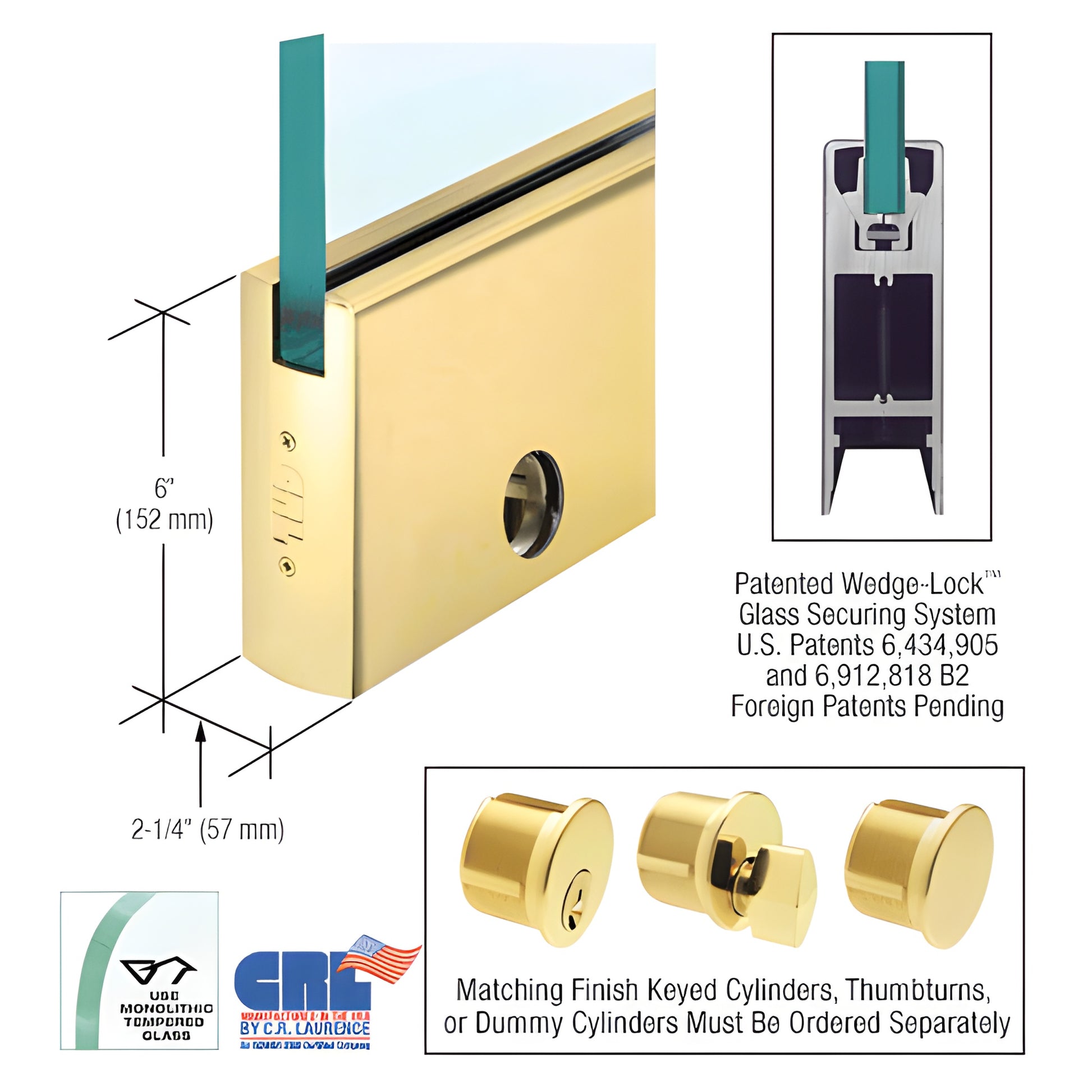

CRL Satin Brass 5/8" Glass Door Rail with Lock, 6" Square, Custom Length

• Custom Length for 5/8" (16 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit 3/8" to 3/4" (10 to 19 mm) Glass
• Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SSB58CL) uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to secure glass from the bottom using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage a wedge groove in the rail, creating extremely high clamping force (over 900 lbs. in the 9" Corner Rail) for durable, vibration-resistant retention.

Key benefits:

• Fast installation — experienced installers can prep a door in under ten minutes.
• Comes fully fabricated and ready-to-install with end caps installed.
• Adjustable Door Alignment System (standard top and bottom) allows 1/8" (3.2 mm) in/out adjustment without removing the door.
• Low-profile adjustable slide permits pivot placement off the American Standard setback for out-of-square openings.
• Rigid single-component housing resists shifting over time (not two-piece construction).
• Internal components remain in place during installation; glass pads designed for longevity in extreme environments.

Installation notes: After mounting the rail, attach pivots or door arms (not included) to the preassembled adjustable alignment slide. To adjust the door, remove the end cap to access three socket head cap bolts: center secures the slide; outer two adjust ±1/8" (3.2 mm). Built-in Jamb Alignment Block is standard; arms and pivots must be ordered separately.

Ordering information:

• All door rails include the Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots are sold separately.
• Models with locks include the lock mechanism; keyed cylinders or thumbturns must be ordered separately.
• End caps included. Specify overall door rail length (including end caps) when ordering custom-length rails.
• Replacement end caps: enter DREC6S into the search box.

Finishes & technical resources: Standard finishes available; custom finishes and widths quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales.

Product warning: Comes standard with jamb alignment block; arms
