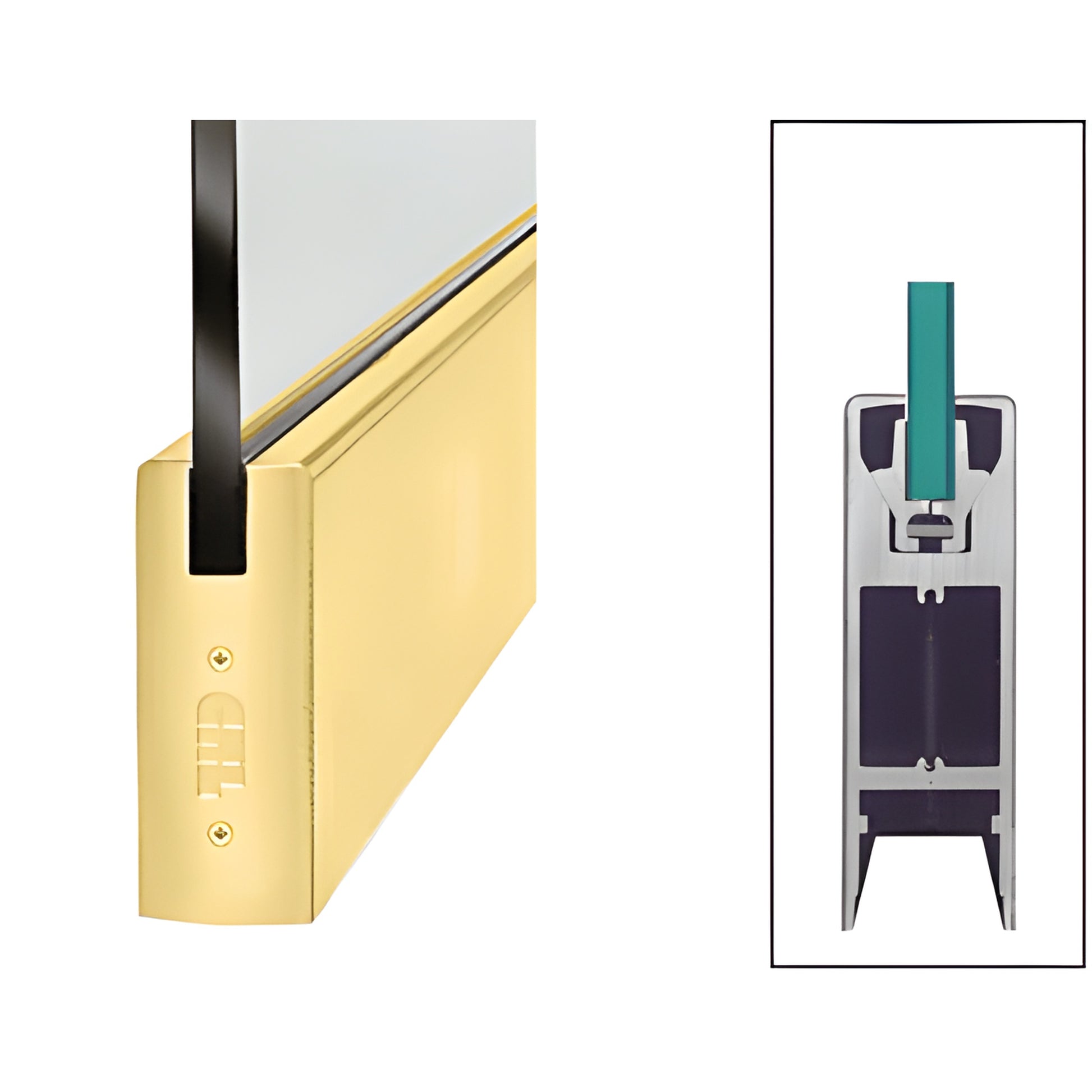

CRL Satin Brass 6" Square Glass Door Rail — 1/2" Glass, No Lock

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (high-pressure wedge action)
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SSB12C) uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to clamp and secure glass with wedge pressure from the bottom rail. Two glass-retaining aluminum extrusions and a flat stainless steel bar are drawn down with socket head cap bolts into an angled groove, producing high clamping force (more than 900 lbs. in the 9" corner rail). This design delivers exceptional retention for glass door applications and fast field installation for frameless and semi-framed glass doors.

NOTE: Actual Product Height: 6” (152 mm)

The Wedge-Lock® system provides fast installation—experienced installers can prepare a door in under ten minutes—and ships completely fabricated with End Caps installed. After rail installation, attach the door arm or pivot (not included) to the assembled adjustable door alignment slide. The Adjustable Door Alignment System allows +/- 1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door.

Access the three socket head cap bolts by removing the End Cap: the center bolt locks the adjustable slide; the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile slide lets pivots with slotted grooves be positioned off the American Standard Setback (2-3/4" / 69.8 mm), enabling installation in vertically out-of-square openings.

Key benefits and differentiators:

• Accepts 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass — ideal for commercial glass doors and storefront entries
• Rigid single-component housing resists shift and long-term misalignment
• Internal components remain in place for faster install—no disassembly required
• Durable glass-securing pads designed for longevity in extreme environments
• Built-in Jamb Alignment Block for consistent door positioning (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes; custom finishes and widths can
