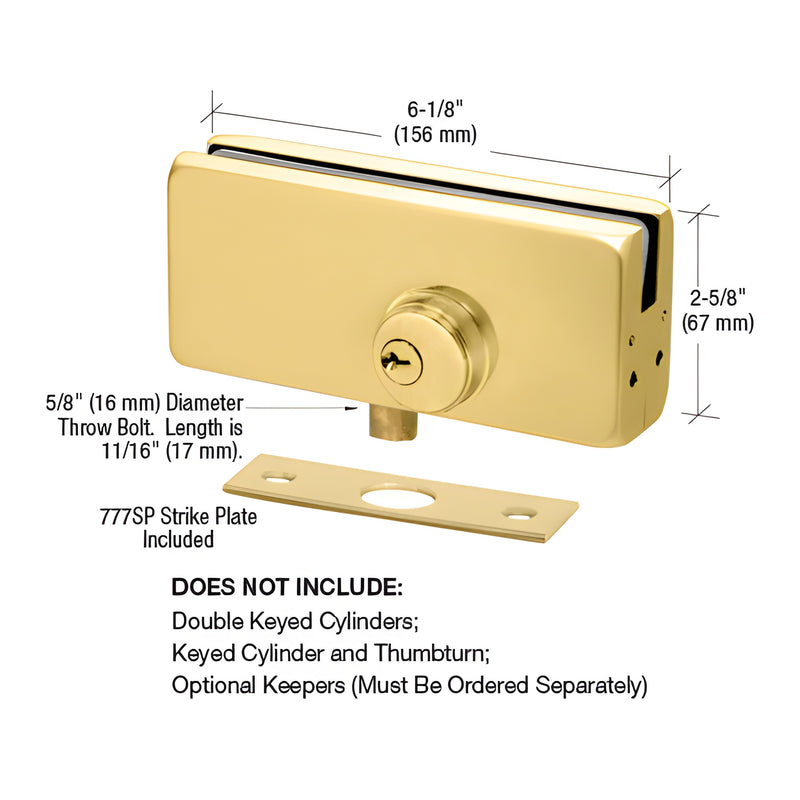

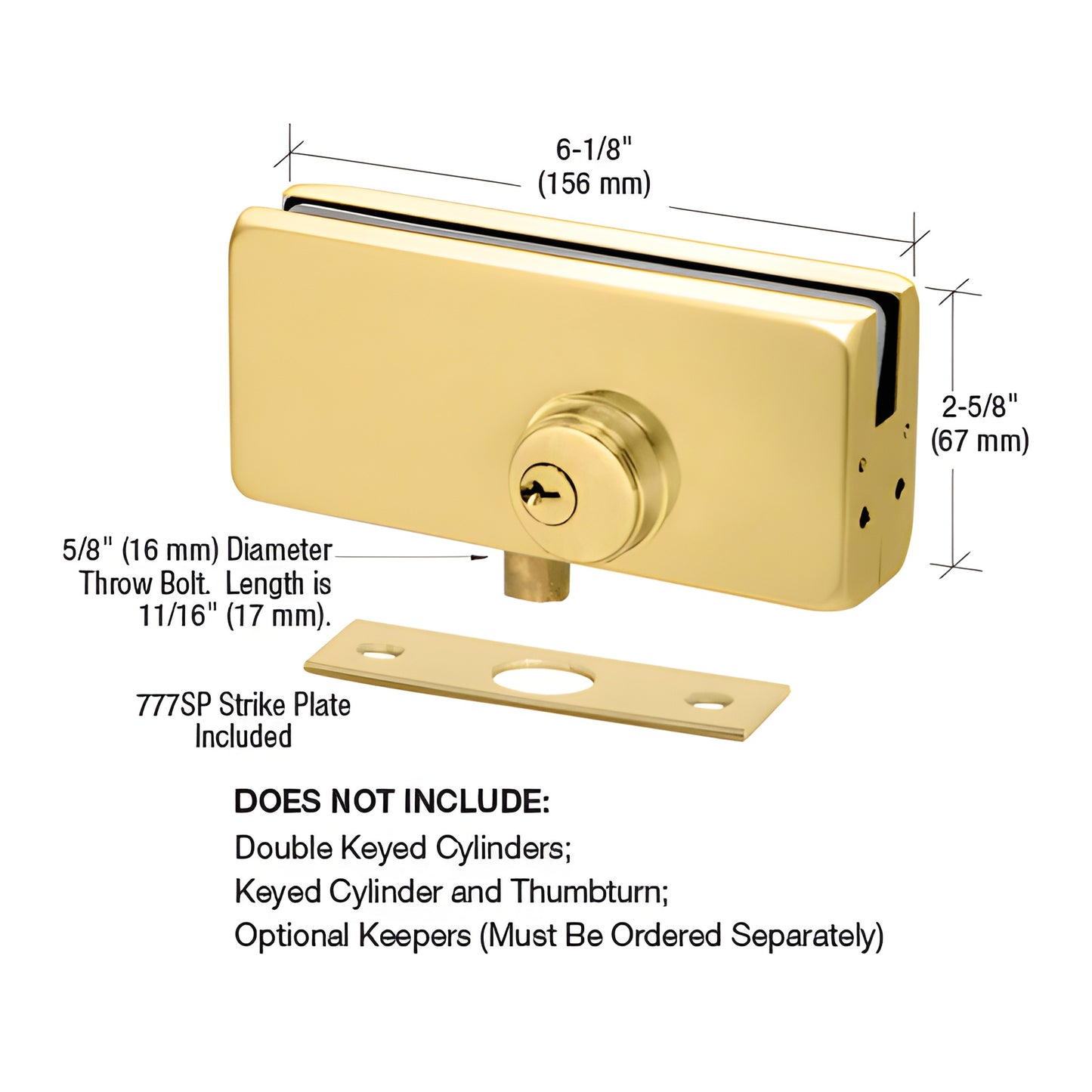

• AMR215SB satin brass American-style patch lock for glass doors, 6-1/8 in 2-9/16 in, includes strike plate
1 1

CRL

CRL AMR215 Satin Brass Patch Lock for Glass Doors

CRL AMR215 Satin Brass Patch Lock for Glass Doors

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# AMR215SB
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Brass
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Height
2-9/16 in. (65 mm)
Width
6-1/8 in. (156 mm)

Overview

  • High density cast body with secure lock mechanism
  • Gaskets for use with 3/8" or 1/2" (10 or 12 mm) glass
  • Available in five architectural finishes

The American Style Patch Lock (SKU: AMR215SB) is a heavy-duty patch lock for glass doors — a taller-profile version of the AMR205 that secures more glass inside the lock housing for increased tamper resistance. Designed for top or bottom corner applications only. Cylinders and keepers are ordered separately. A standard keeper is supplied; optional keepers are available to suit most installations.


GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) diameter hole and one corner notch

COMES WITH: Template and instructions

DOES NOT INCLUDE:
Double keyed cylinders; keyed cylinder/thumbturn; optional keepers (must be ordered separately)

DOUBLE DOOR APPLICATION:
For double-door installations, a bottom patch lock is required on the inactive leaf to properly secure the pair of doors.

Product Warning:

Cylinders are optional and not included with lock body.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor settings.

Brass Finish Advisory:
Although durable, brass can oxidize and develop a tarnished appearance over time regardless of initial packaging or storage. For more details, see the Brass Finish Disclaimer in the Technical References section.


Contact CRL Customer Service to order AMR215SB or to request exact shipping weight and installation guidance.
