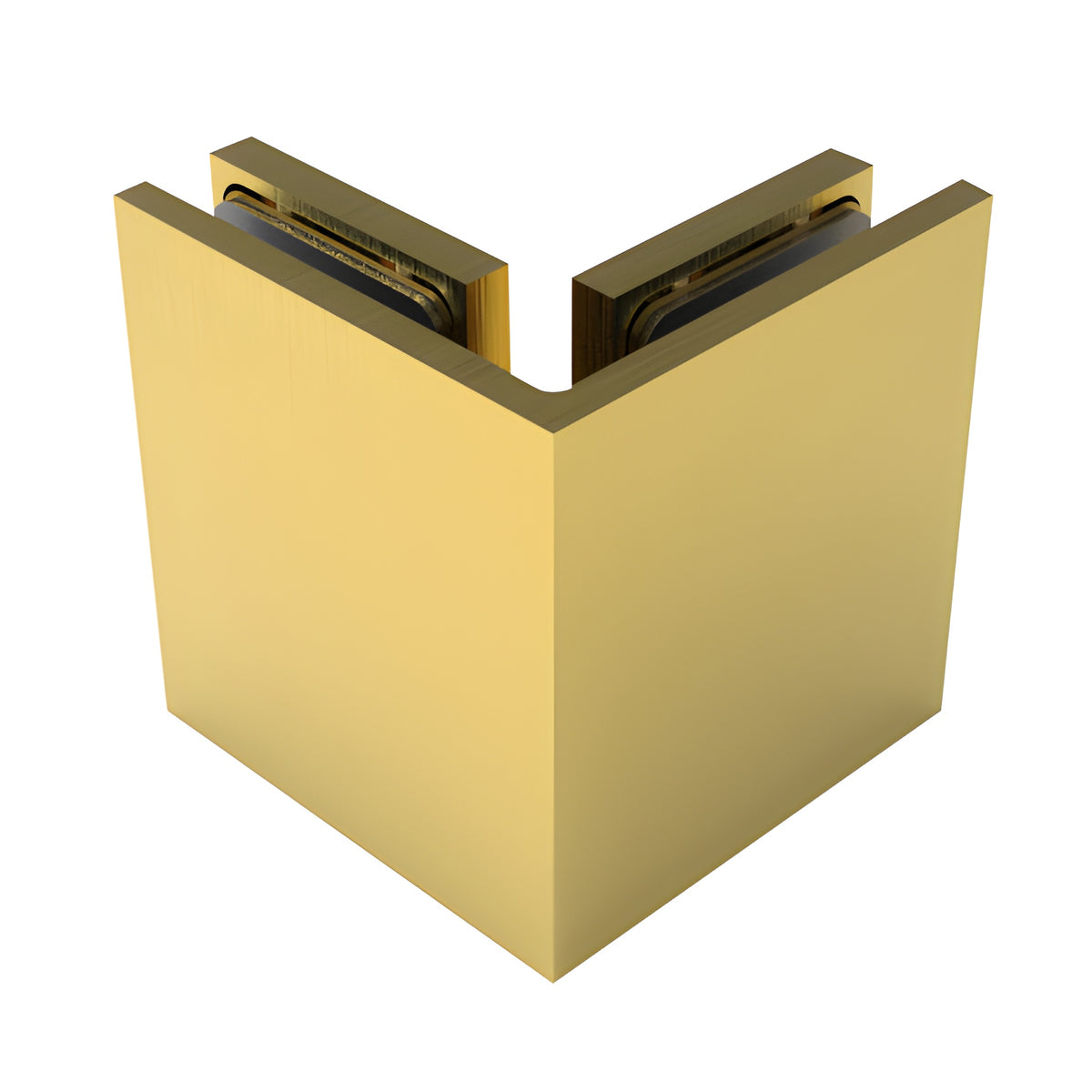

CRL Satin Brass Bellagio Series Glass-to-Glass Bracket
Item# BEL090SB
Shipping Weight: 1.57
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.57
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
- Design StyleConcealed/Premium
- Enclosure TypeCorner, Niche, Bathtub, Tailor Made Solutions
- Finish/Color:Satin Brass
- Glass To Glass Angle90
- Glazing Thickness5/16 in. To 3/8 in. (8 mm To 10 mm)
- Height2-15/16 in. (75 mm)
- Leg Length2-3/4 in. (69.9 mm)
- Length2-3/4 in. (70 mm)
- MaterialBrass
- Maximum Door Weight110
- Maximum Door Width39
- Mounting TypeGlass To Glass
- Opening StyleSwing(side)
- SeriesBellagio
- Matching Bellagio Series Hinges Available
- For 5/16 to 3/8 (8 to 10 mm) tempered glass
- Tight Gaps Prevent Water Infiltration
- Snap-on Covers Conceal Screws
CRL Bellagio Series 90 Degree Glass-to-Glass Bracket are designed to work with 5/16" to 3/8" (8 to 10 mm) thick glass. thick glass projects. The two mounting screws per panel matches the configuration of many of our most popular hinge series. Continuity of design is maintained by matching the look of the hinges used. They feature square corners and edges in several decorator finishes and are constructed of solid brass. Custom finishes are available on request by contacting CRL Technical Sales Shower Door Department.
SPECIFICATIONS
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screws Hole Diameter
Required: One 5/8" (16mm) Hole Per Panel
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
