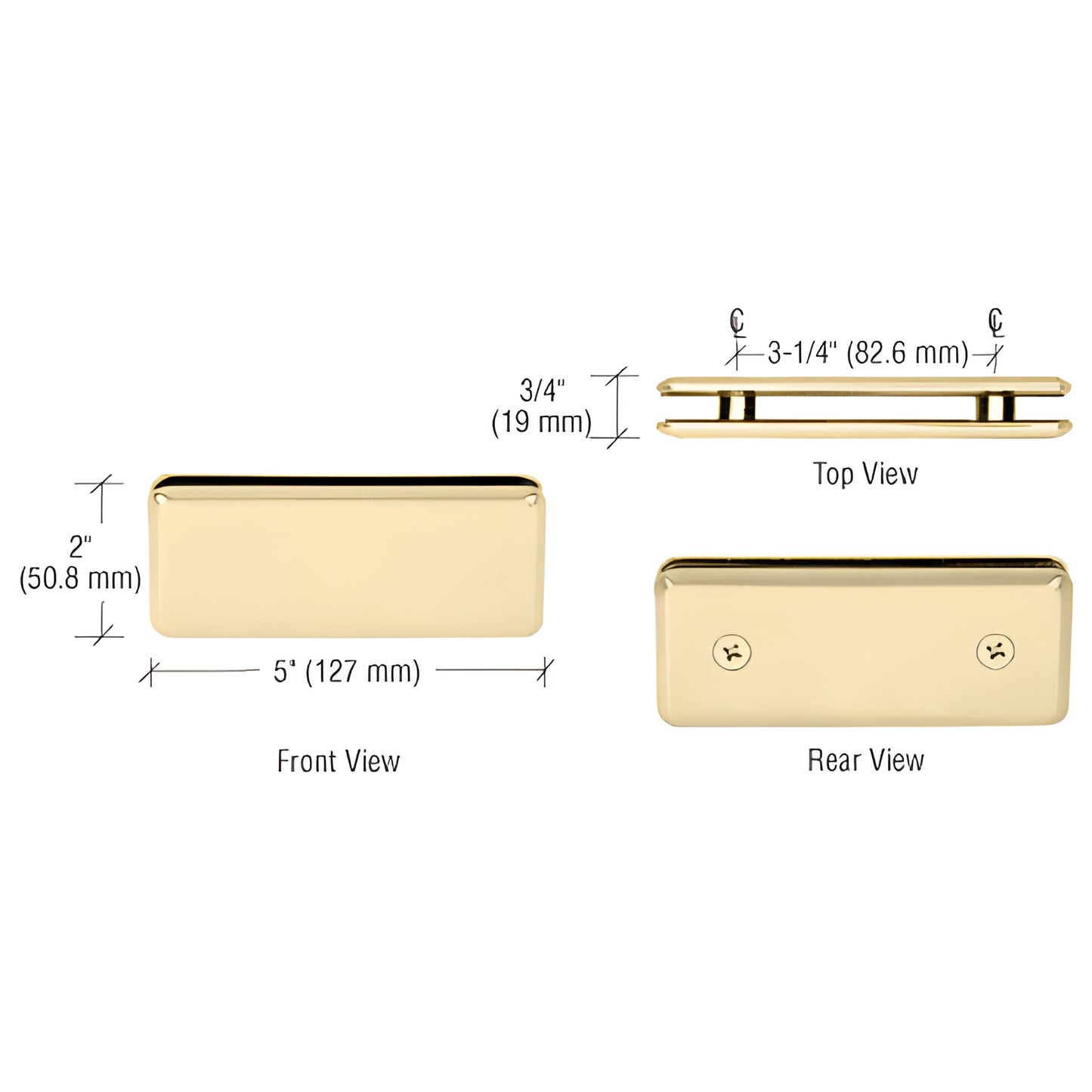

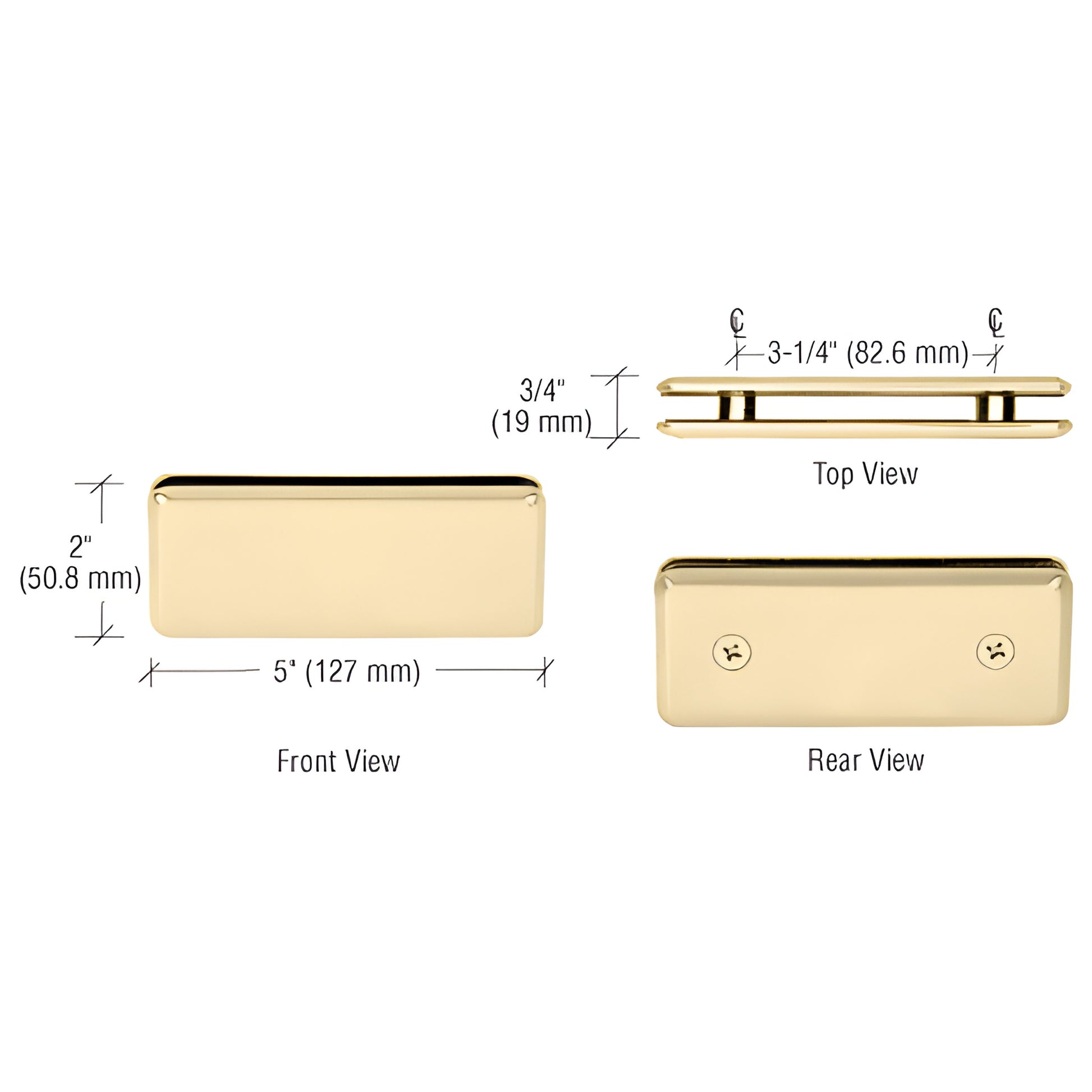

CRL Satin Brass 180° Beveled Glass-to-Glass Clamp for Shower Doors

• For 3/8" to 1/2" (10 to 12 mm) thick glass
• Used to secure fixed panels of glass for frameless shower enclosures
• Solid brass construction
• A sleek alternative to traditional U-channel—clamps preserve an 'all-glass' appearance
• Glass fabrication required to accommodate clamps
• Use monolithic tempered glass

CRL's Beveled 180º Glass-to-Glass Clamps (SKU: BGC180SB) have attractive beveled edges and connect two fixed transom or inline glass panels in frameless shower enclosures. Designed for 3/8" to 1/2" (10 to 12 mm) glass, these solid brass clamps come in a variety of finishes to match door hinges and other hardware. Ideal for custom wall partitions, transoms, showcases, trophy cases, and all-glass enclosures, the beveled clamps instantly elevate the appearance of your project while supporting a clean, minimal look. Drawings and templates for all clamps are available.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 require 3/4" (19 mm) holes; BGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Gaskets
