CRL

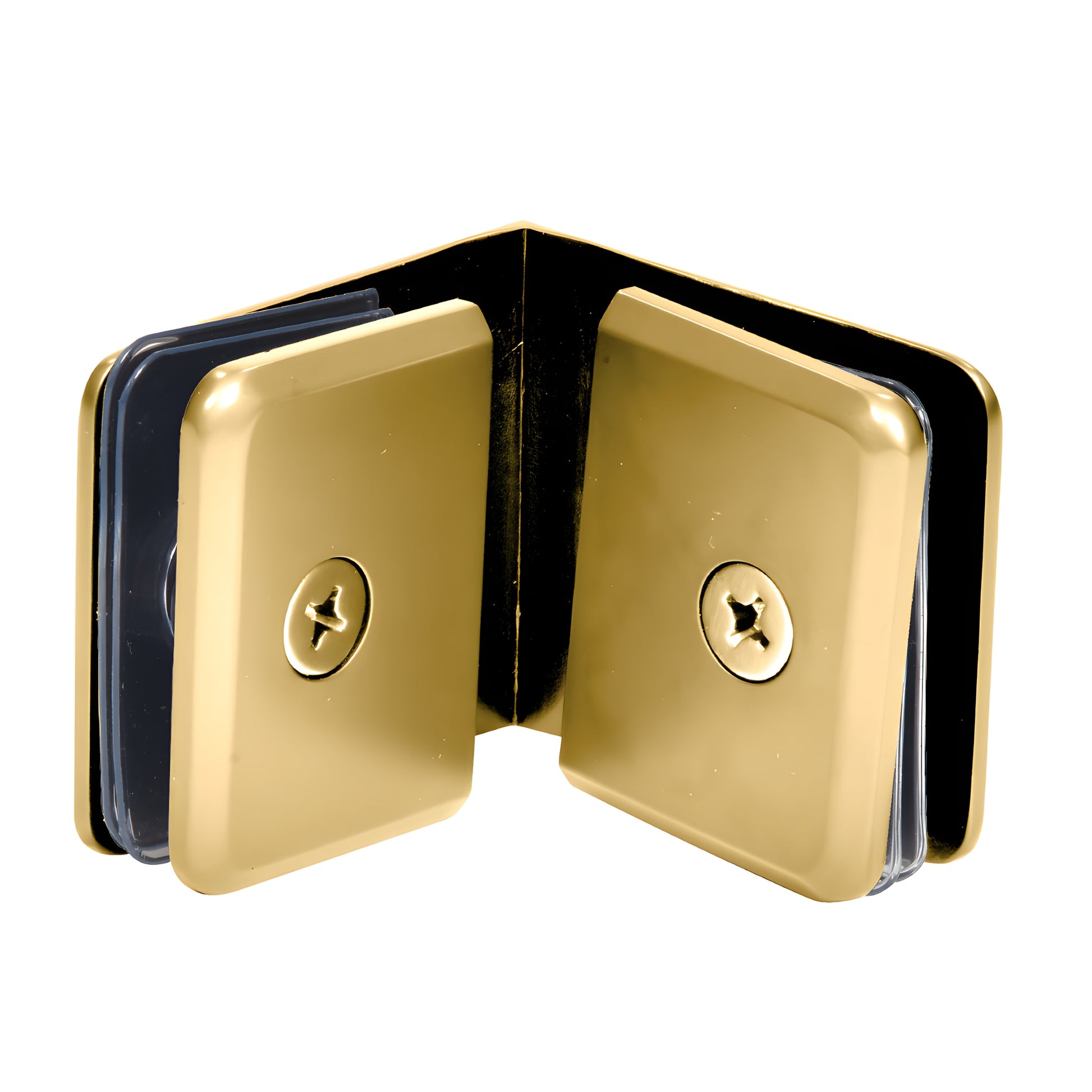

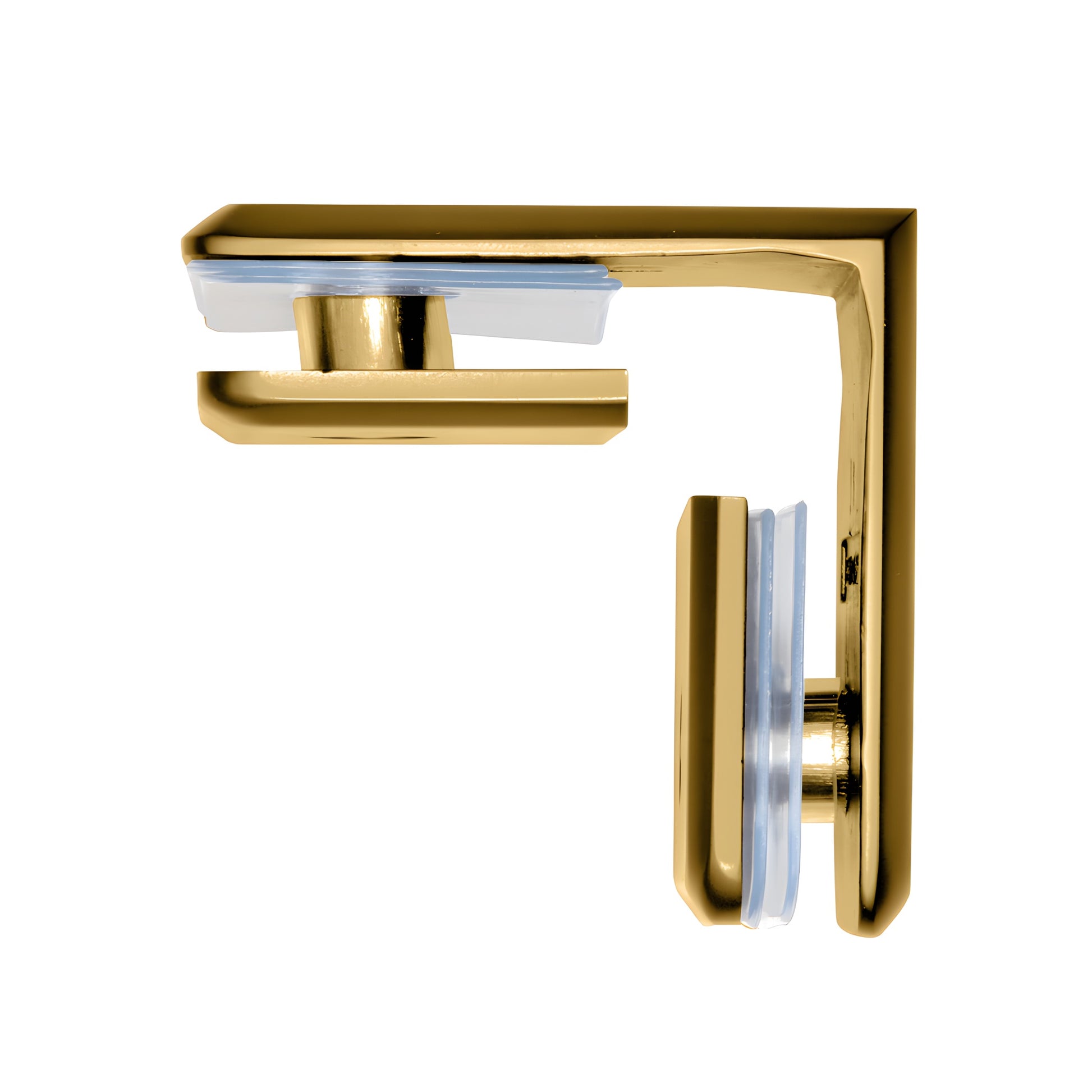

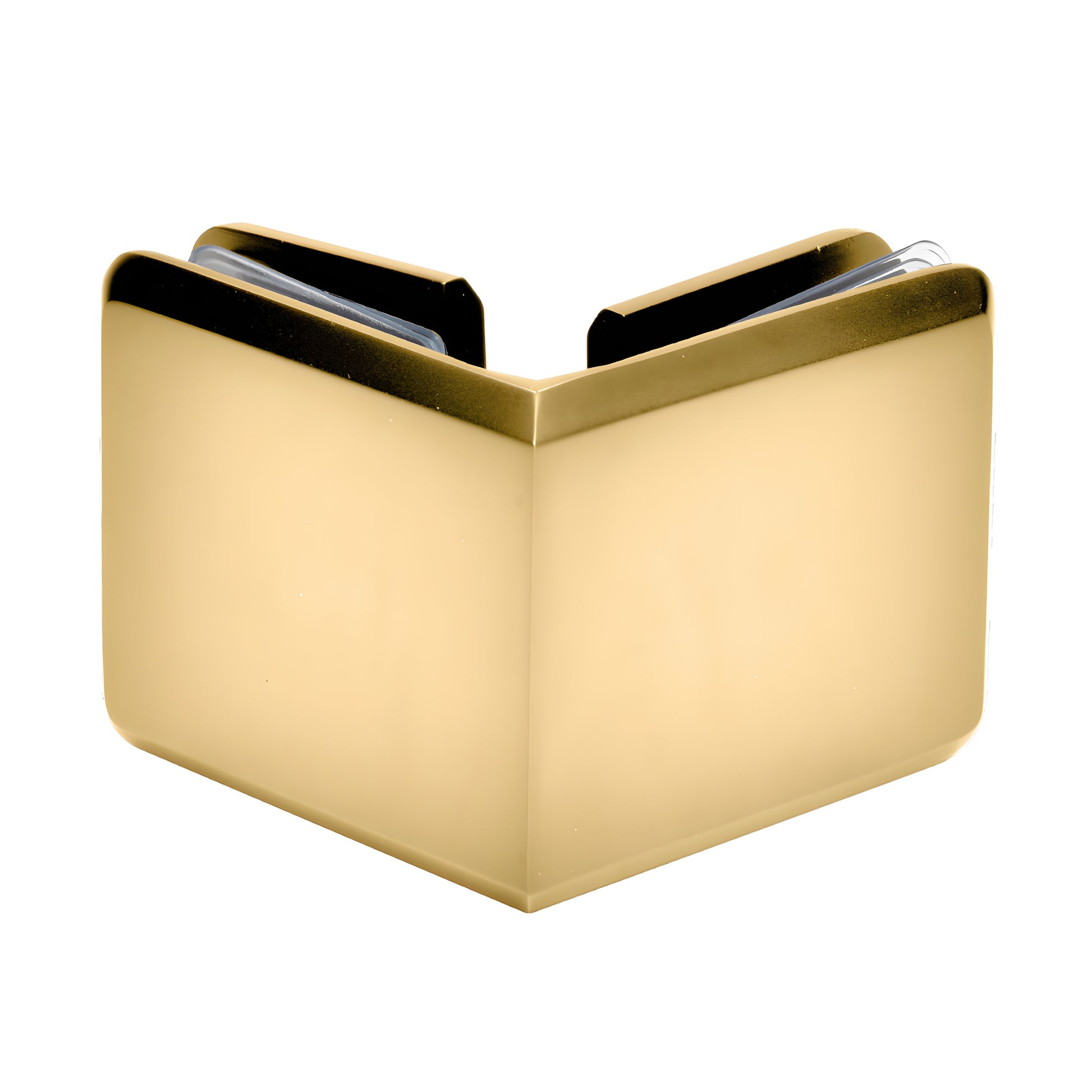

CRL Satin Brass 90Β° Glass-to-Glass Clamp for Shower Door

CRL Satin Brass 90Β° Glass-to-Glass Clamp for Shower Door

$54.17 CAD
$54.17 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# BGC90SB
Shipping Weight: 15.968 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Design Style
Beveled
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glass To Glass Angle
90
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • For 3/8" to 1/2" (10 to 12 mm) glass
  • Use monolithic tempered glass
  • Secures fixed panels of glass for frameless shower enclosures
  • Solid brass construction
  • Alternative to traditional U-channel β€” clamps preserve an "all-glass" appearance
  • Glass fabrication required to accommodate clamps

CRL Beveled Style 90ΒΊ Glass-to-Glass Clamp features attractive beveled edges that coordinate with similarly styled hinges. Designed to connect two fixed glass panels at a 90ΒΊ angle for frameless shower systems and other all-glass installations.


SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 require 3/4" (19 mm) holes; BGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary depending on your monitor settings.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. For care and maintenance details, see the Brass Finish Disclaimer in the Technical References section.


SKU:

Specifications

Templates
BGC90 SGC90 Template
