CRL Satin Brass Bottom Door Patch w/ 1NT302 Insert for Glass Doors
CRL Satin Brass Bottom Door Patch w/ 1NT302 Insert for Glass Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH10DSB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT302
Length
6-7/16 in. (164 mm)
Pivot Setback
2-3/4
Type
Bottom
With Insert
Yes
Overview
- 2-3/4" (70 mm) Pivot Setback
- High-density cast body
- For 3/8" or 1/2" (10 or 12 mm) glass

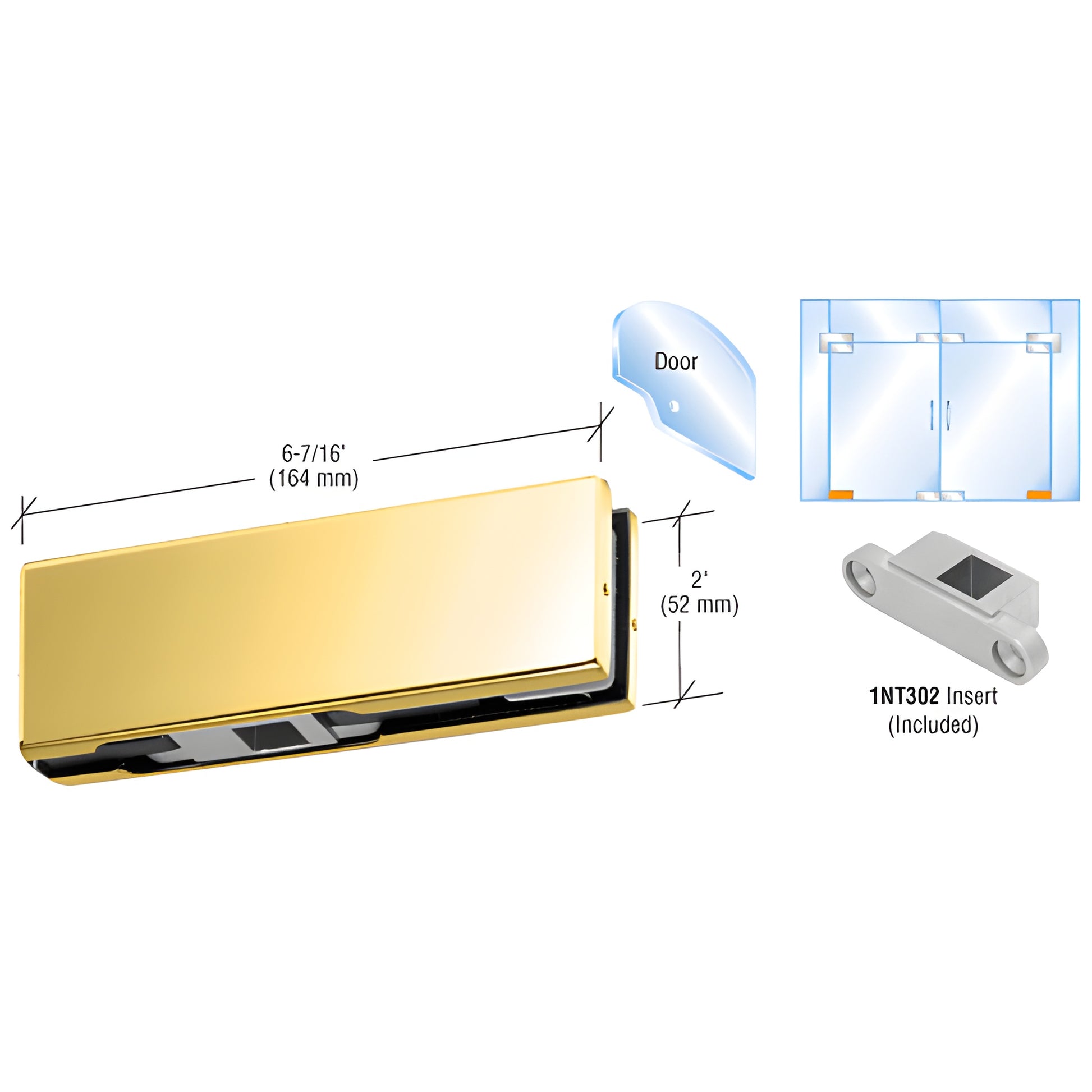

The CRL Bottom Door Patch Fitting (SKU: PH10DSB) is a heavy-duty bottom patch fitting for frameless glass doors. Includes the No. 1NT302 insert for use with tapered square spindle Casma floor closers or the 1NT404 free swing pivots. Finished covers are available in five standard finishes. Gaskets are supplied for use with either 3/8" or 1/2" (10 or 12 mm) glass.
Glass fabrication required:
One 3/4" (19 mm) diameter hole and corner notch.
Comes with:
Template and instructions.
Product warning:
These fittings are not for use with laminated glass.
Use the following guidelines when making a 1/2" glass door with this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Brass finish advisory:
Brass is durable but prone to oxidation, which can cause a tarnished appearance despite initial packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance.
Call or order online now to get the PH10DSB bottom door patch fitting for your frameless glass door project.
Specifications
CAD Drawings - dwg
