CRL EUR Satin Brass Complete Patch Lock for Glass Doors with Cylinder

• High density cast body with integrated lock mechanism
• Gaskets for use with 3/8" or 1/2" (10 or 12 mm) glass
• Designed for monolithic tempered glass

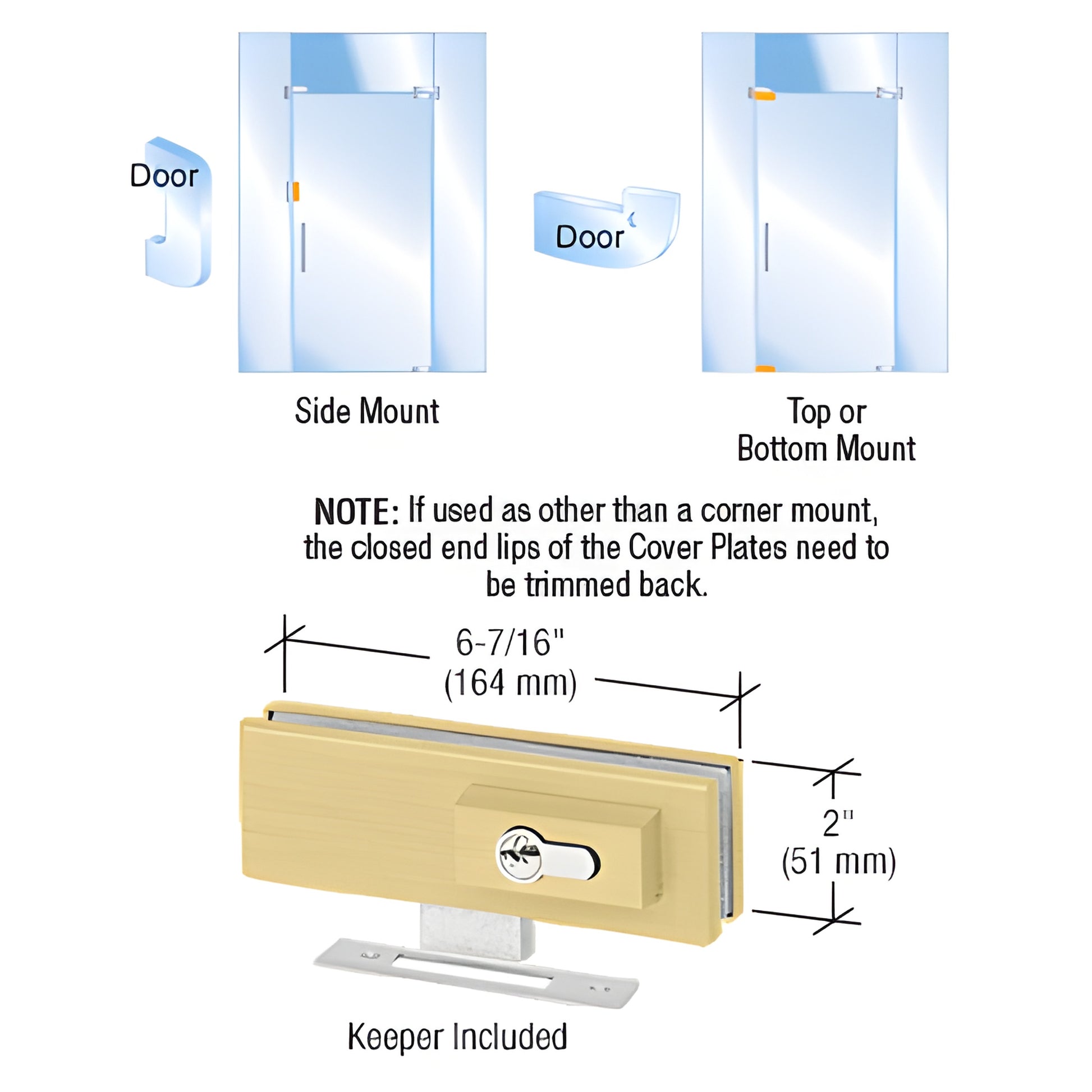

The CRL European Style Patch Lock (SKU: EUR205SB) mounts top or bottom on glass doors, and can be installed on the vertical edge and secured to a jamb using the supplied Keeper. It also secures to a glass sidelite with the EUR206 Sidelite Mount Keeper. An optional "Easy Clean" Bottom Keeper EUR208 is available to accommodate most installations. This European-style patch lock is ideal for frameless glass door hardware and tempered glass door applications.

Glass Fabrication Required:
Top and Bottom Mount:
One corner notch; Side Mount: one U-cutout.

Includes: Template and instructions.

Double Door Application: For double-door installations, a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.

Note: If installed other than a corner mount, the closed-end lips of the cover plates must be trimmed back.

Product Warning:
If used other than a corner mount, the closed-end lips of the cover plates need to be trimmed back.

Brass Finish Advisory:

Contact CRL Customer Service to confirm glass fabrication details or to order SKU EUR205SB today.
