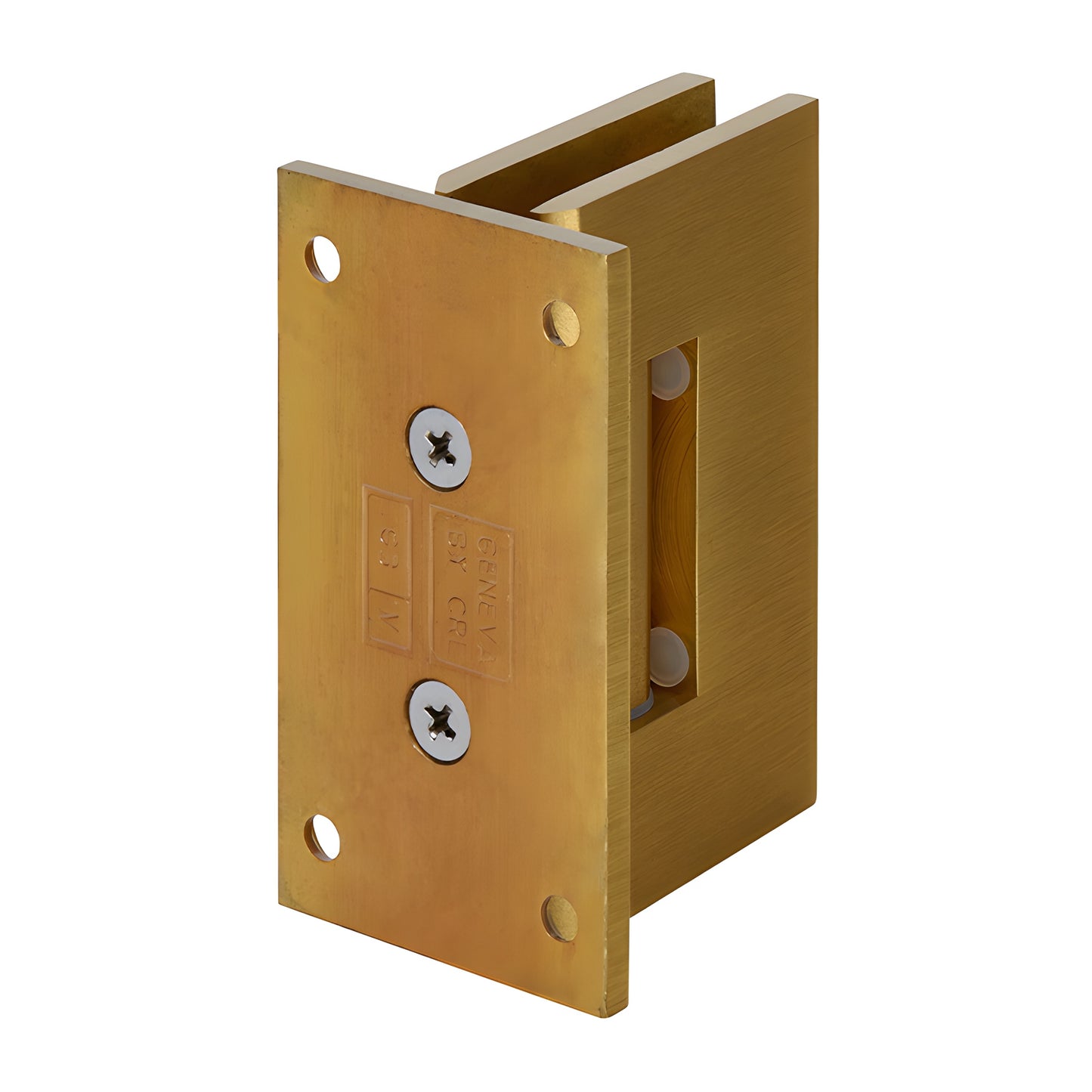

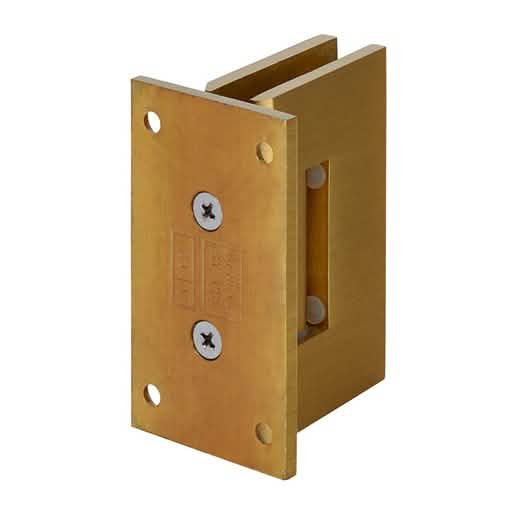

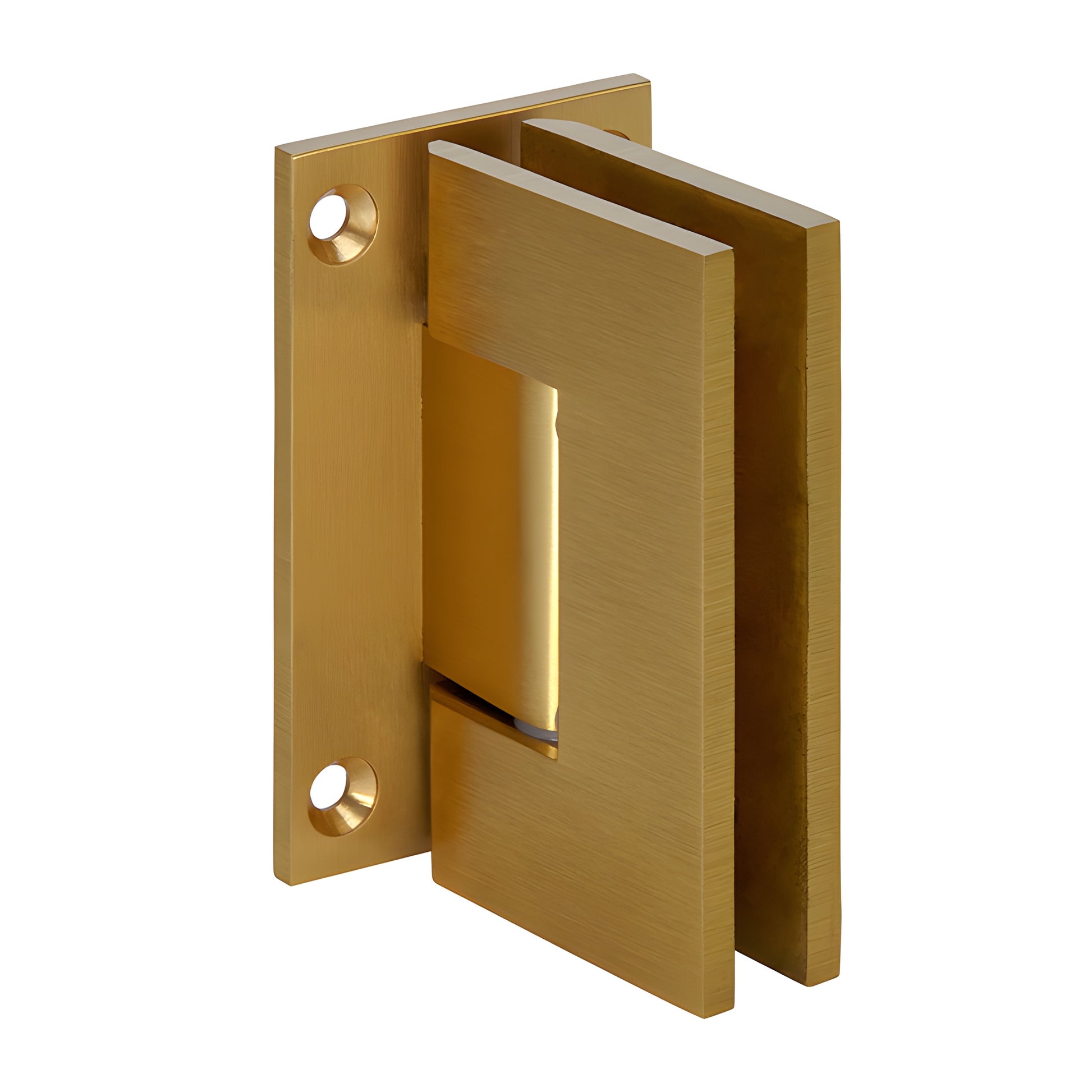

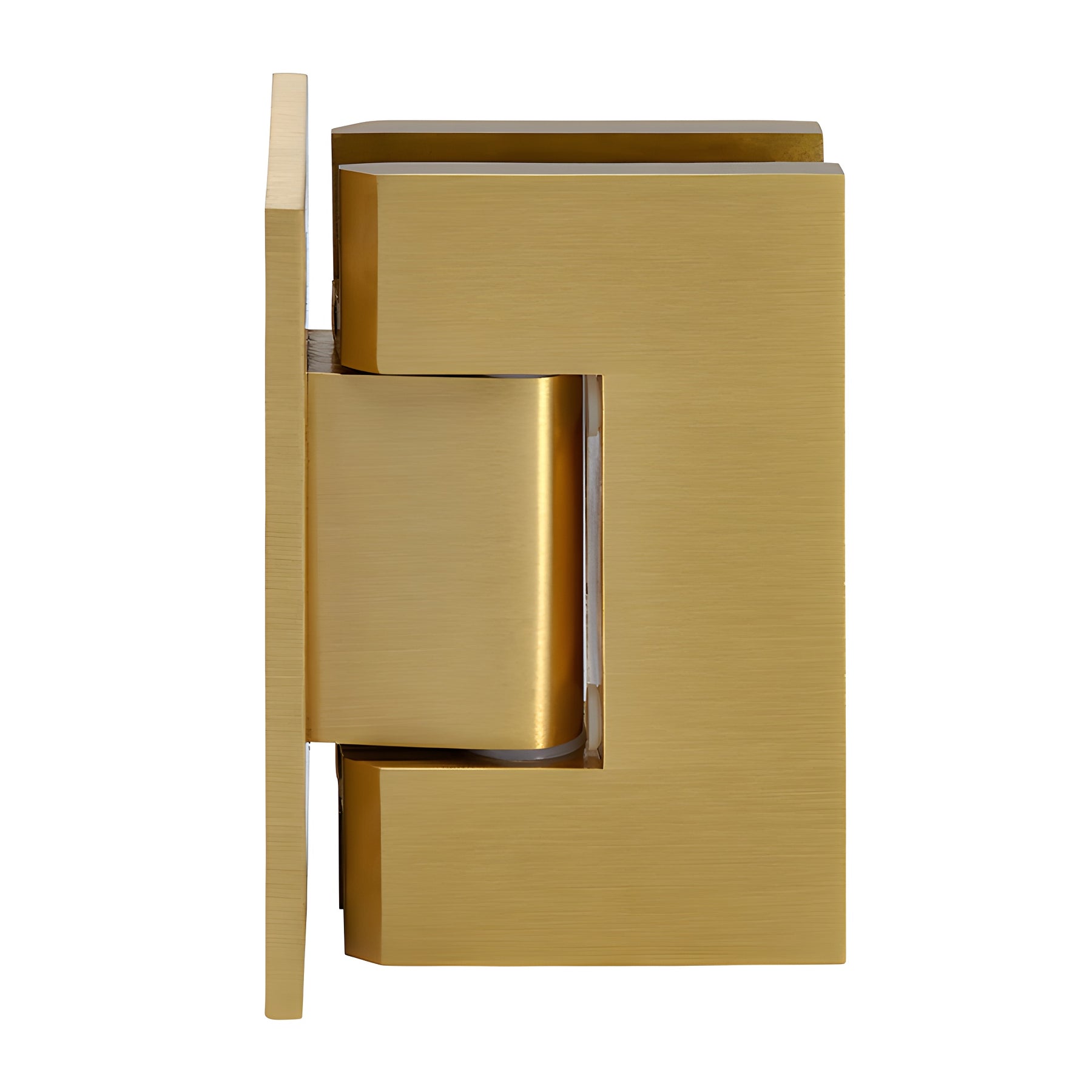

CRL Geneva 537 Satin Brass 5° Offset Wall Hinge, Full Back Plate

• Self-centering hinge with reversible 5° pivot pin
• Available in multiple brass and custom finishes
• Three-year warranty
• Factory 5° pre-set model for tighter closure into shower interior
• For monolithic tempered glass — 5/16" (8 mm) to 1/2" (12 mm)

The CRL Geneva Series professional hinge (SKU: GEN537SB) fits 5/16" (8 mm) to 1/2" (12 mm) tempered glass and offers six styles—three Wall Mount and three Glass-to-Glass—for greater shower design flexibility. Geneva hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Solid brass construction with stainless steel pins and springs provides durable, corrosion-resistant performance for shower doors.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°; Offset/Pre-Set models ship set to 85° (5° tighter closure). The pin rotates to switch settings—no flipping required.

Using two hinges on 5/16"–1/2" (8–12 mm) glass supports up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

Custom Pivot Pin (Cat. No. GENP1N): Available for off-angle installations up to 45°. Specifying a custom angle may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of standard 0° closing or factory 5° pre-set model for tighter interior closure
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available—contact Technical Sales Shower Door Division.

Product Warning:

Designed for residential and hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
