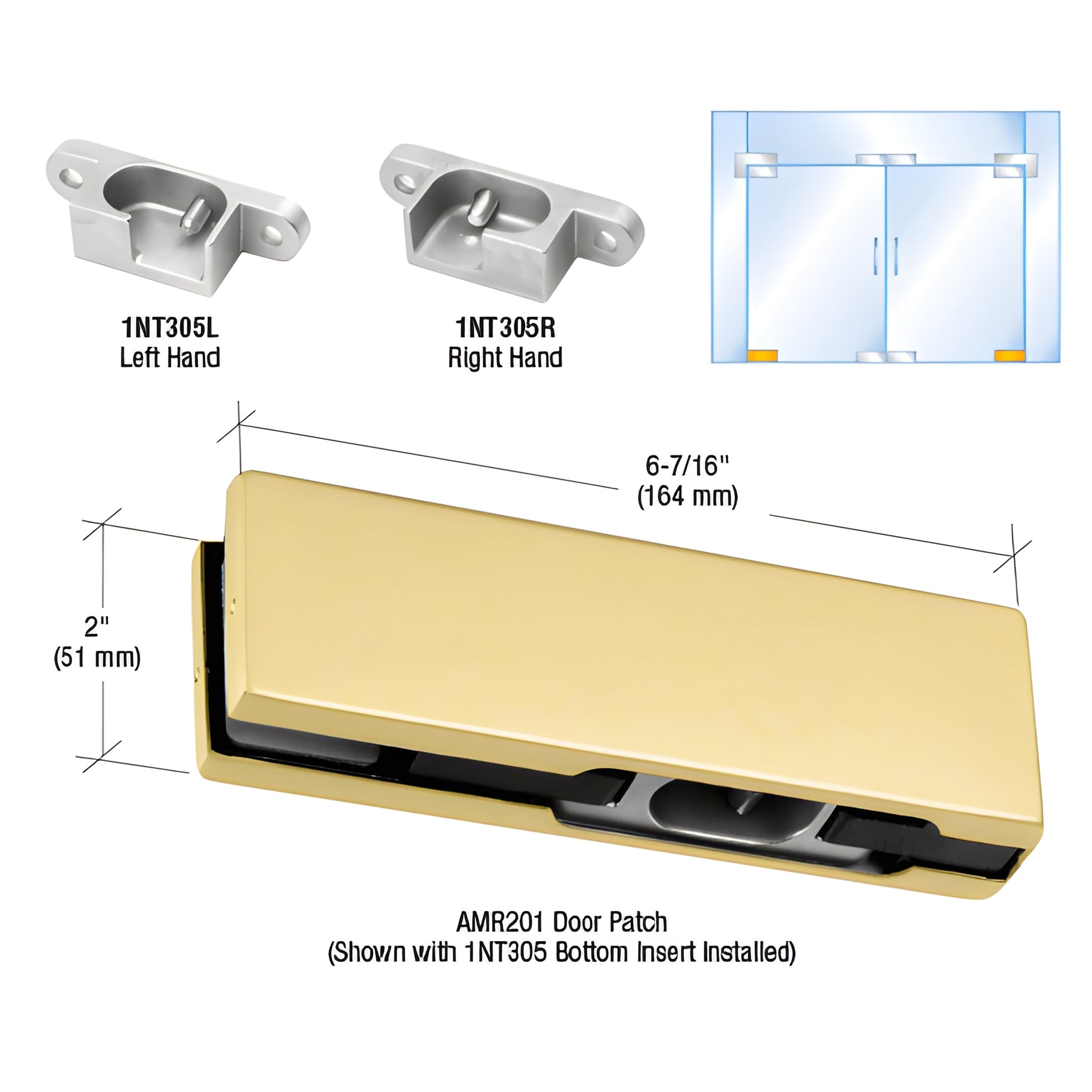

• Satin brass bottom door patch assembly PH10ELSB (fits 3/8"-1/2" tempered Herculite glass)
1 1

CRL

CRL Satin Brass Left-Hand Bottom Glass Door Patch Fitting

CRL Satin Brass Left-Hand Bottom Glass Door Patch Fitting

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH10ELSB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Left Hand
Insert Type
1NT305L
Pivot Setback
2-3/4
Series
North American
Type
Bottom
With Insert
Yes

Overview

  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • 2-3/4" (70 mm) pivot setback for smooth door operation
  • Designed for Herculite™+ style glass doors
For Use With:
  • 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Glass fabrication required: one 3/4" (19 mm) diameter hole and corner notch
  • Template available at crlaurence.com
Includes:
  • 1 × AMR201 door patch
  • 1 × 1NT305L and 1 × 1NT305R bottom door patch
  • Insert gaskets for 3/8" or 1/2" (10 or 12 mm) glass
Product Warning:

For maximum door size when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary by monitor.

Brass Finish Advisory:
Brass is durable but can oxidize and develop a tarnished appearance over time, regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for details.

SKU: PH10ELSB

Durable pivot patch assembly for Herculite-style tempered glass doors—ideal for commercial storefronts or interior glass doors. Order now to ensure proper glass fabrication and hardware compatibility.
