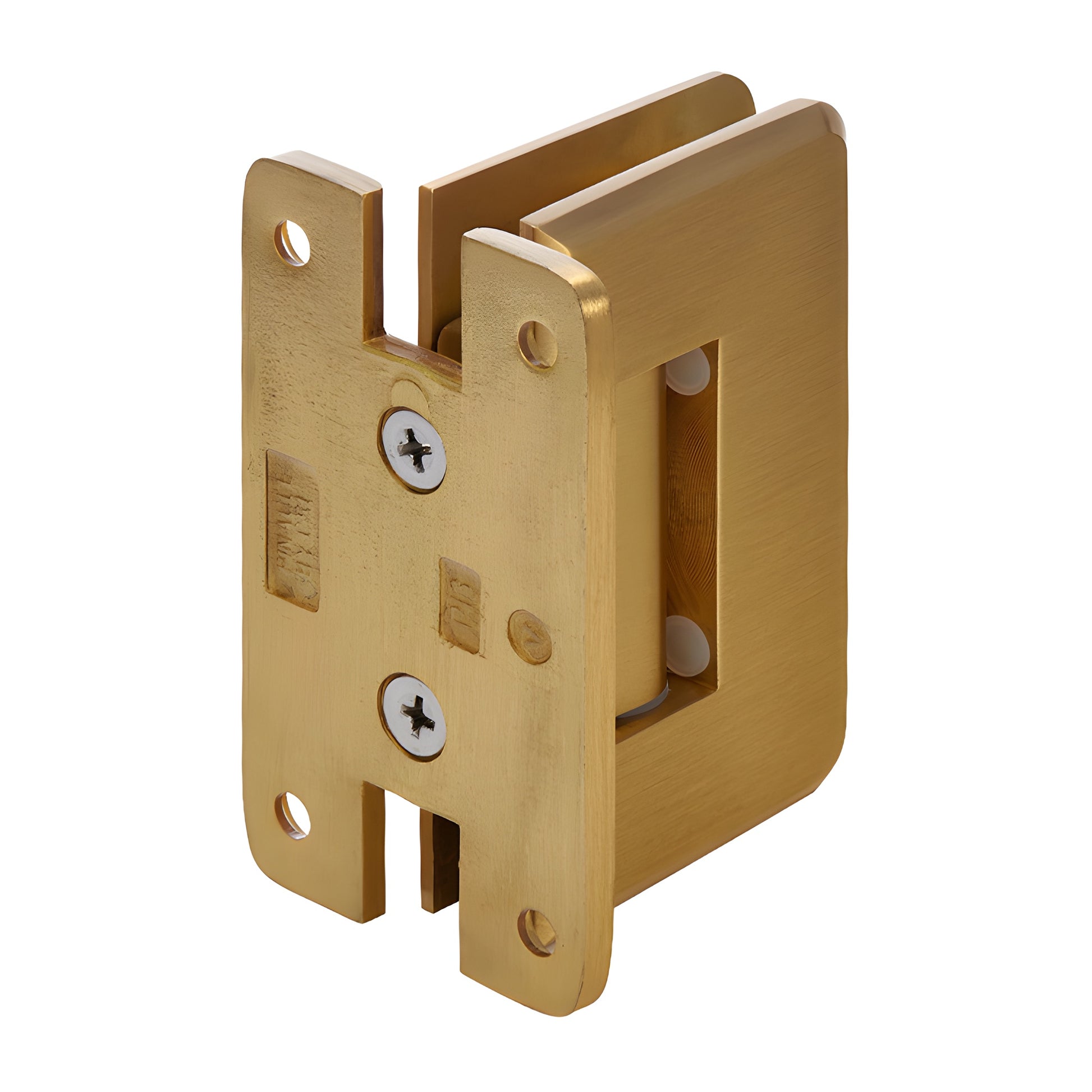

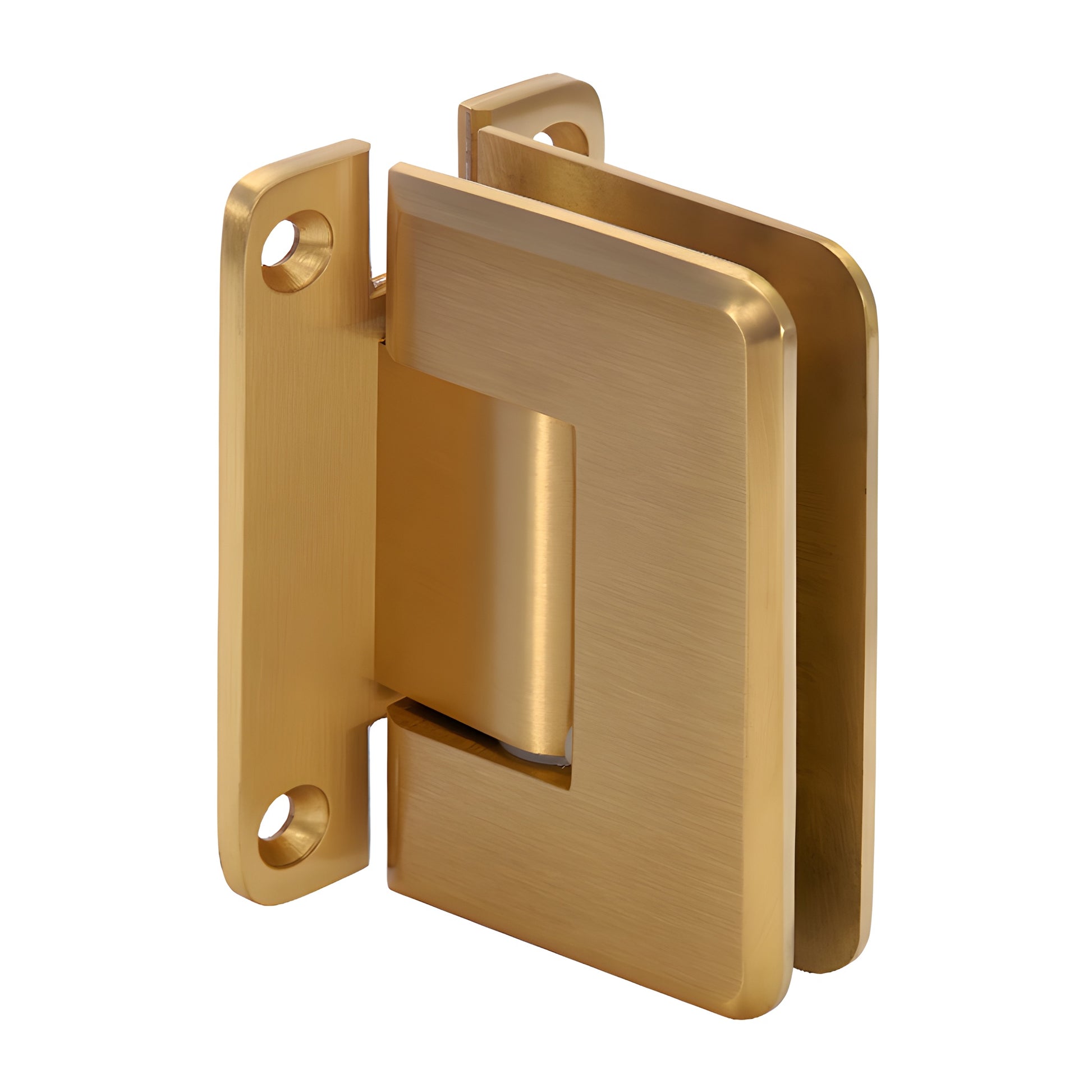

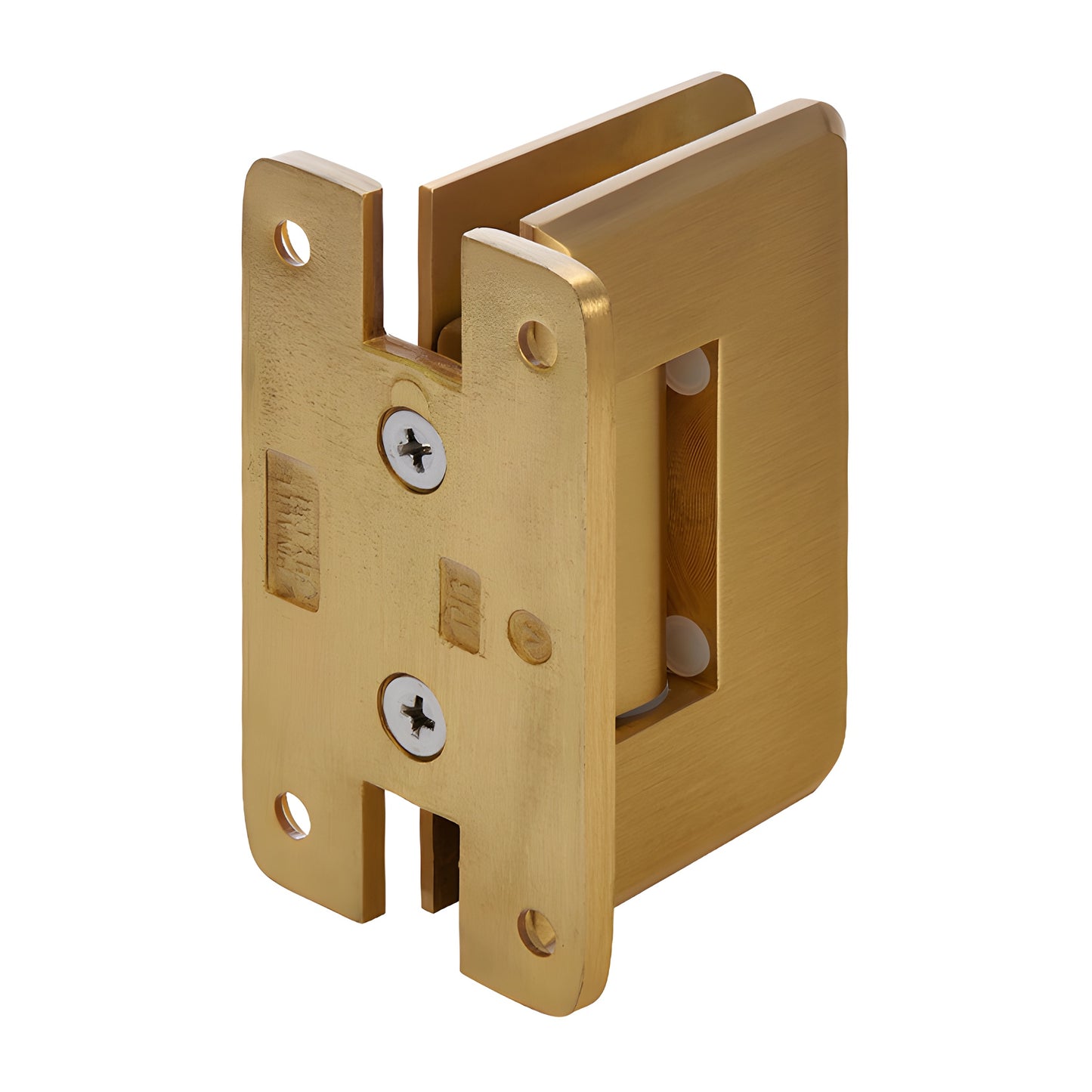

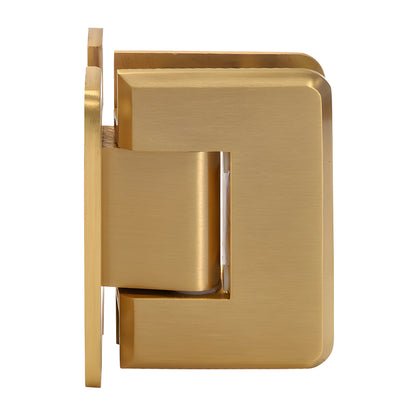

CRL Pinnacle 537 5° Satin Brass Glass Door Hinge H-Back Plate

• Self-centering shower hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• 5° pre-set model (factory set for tighter closure into shower interior)
• Use with monolithic tempered glass

The CRL Pinnacle Hinge (SKU: P1N537SB) is a radius‑corner, beveled‑edge alternative to our Geneva Series designed for a sleek shower door appearance. It fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is self‑centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, the Pinnacle Hinge delivers long service life and reliable door closure. It includes the reversible 5° pivot pin found in our Geneva, Cathedral, Roman, Ultimate, and Elite Series; a custom pivot pin is available for off‑angle installations.

STANDARD REVERSIBLE PIVOT PIN:

Each Pinnacle Hinge contains a reversible pivot pin with two settings: 90° (standard) and 85° (5° tighter closure). Pre‑set models ship with the 85° side activated. Rotate the pin (do not flip) to change settings.

CUSTOM PIVOT PIN:

Custom pivot pins are available up to 45° to accommodate off‑angle walls or non‑standard installations when the standard 5° adjustment is insufficient.

Load Capacity:

Using two hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 80 lbs (36 kg), max door width 28" (711 mm).

Using three hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall‑mount and 180° glass‑to‑glass hinge options; choose Standard (0°) or 5° Pre‑Set Model for tighter closure into shower interior.
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self‑centering when within 15° of closed position
