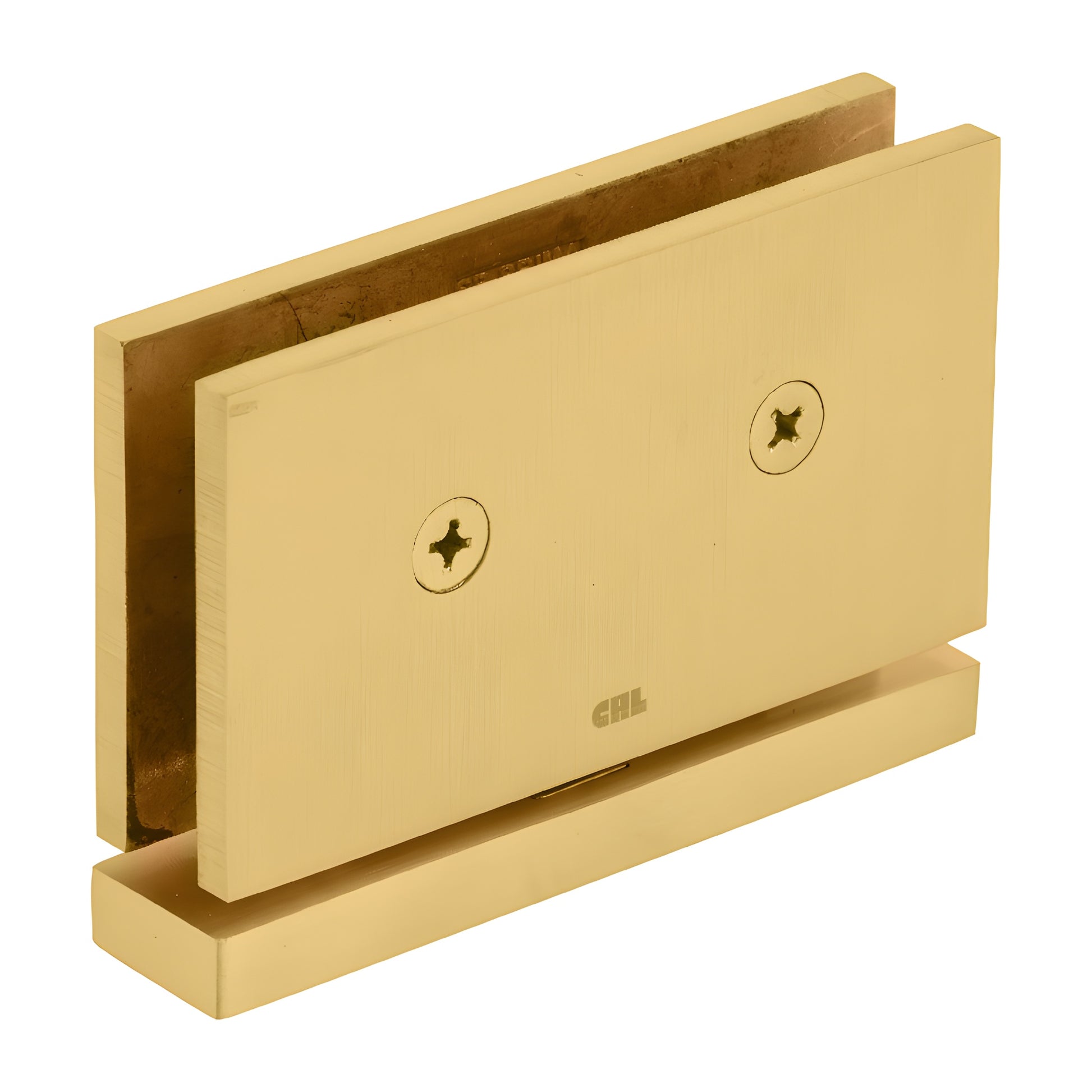

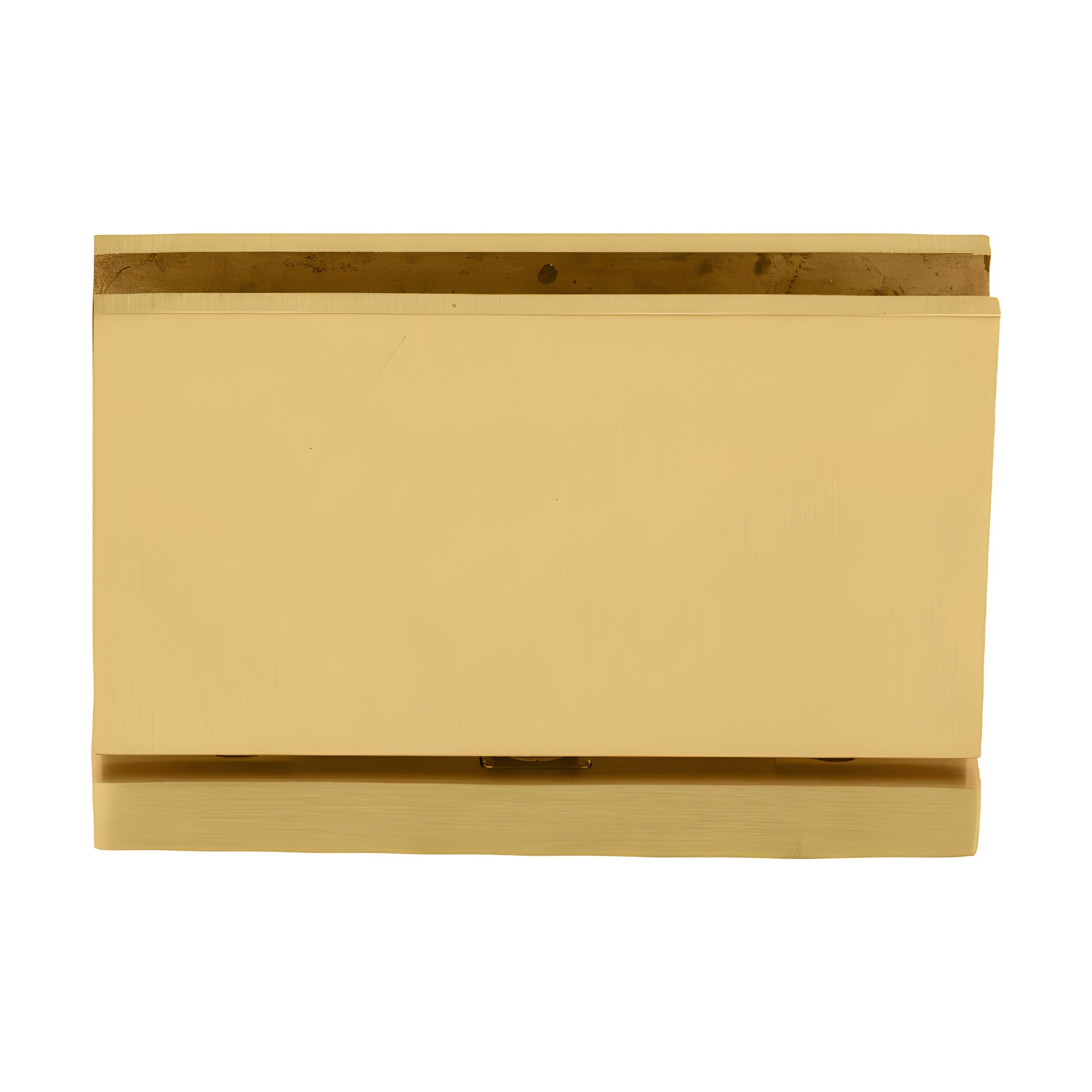

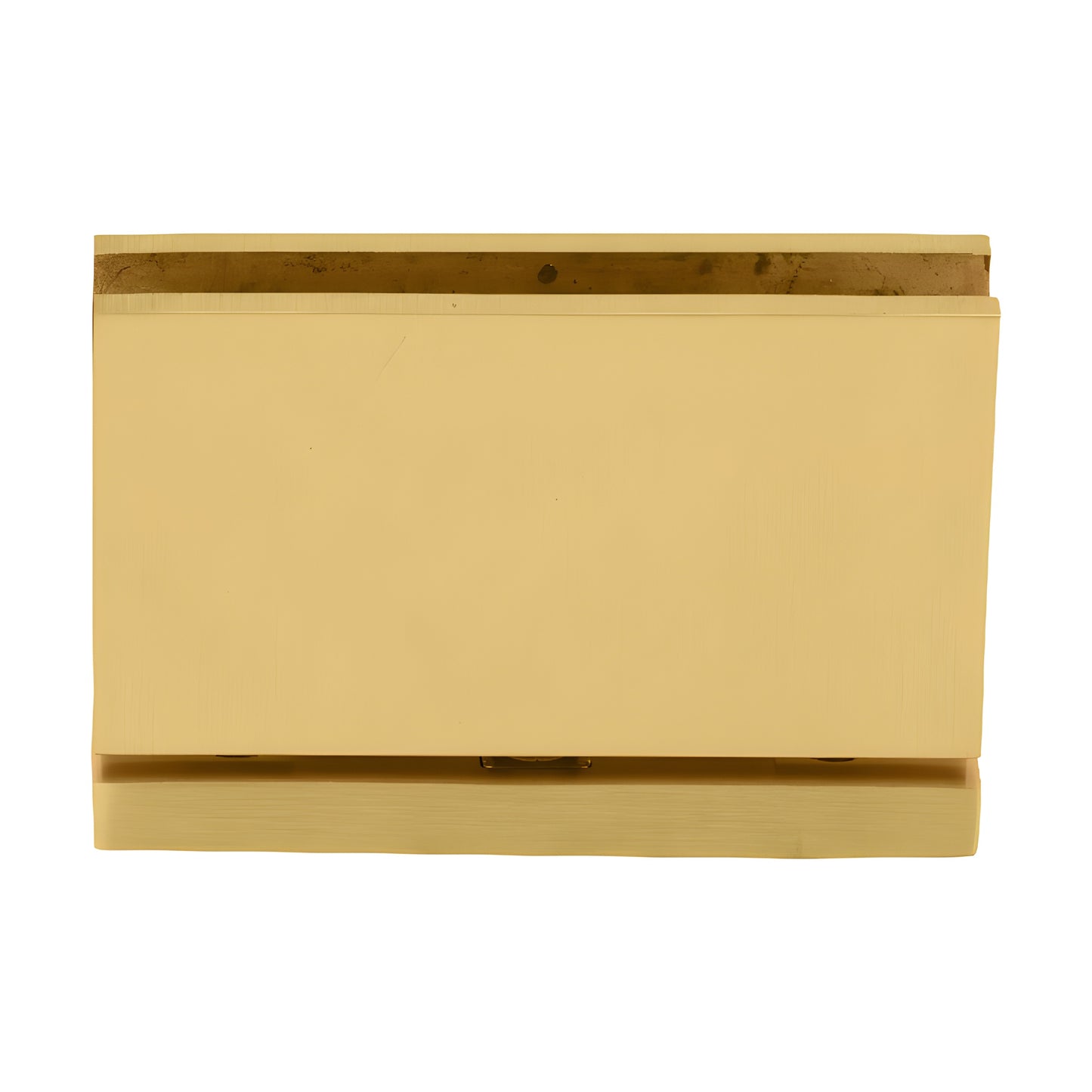

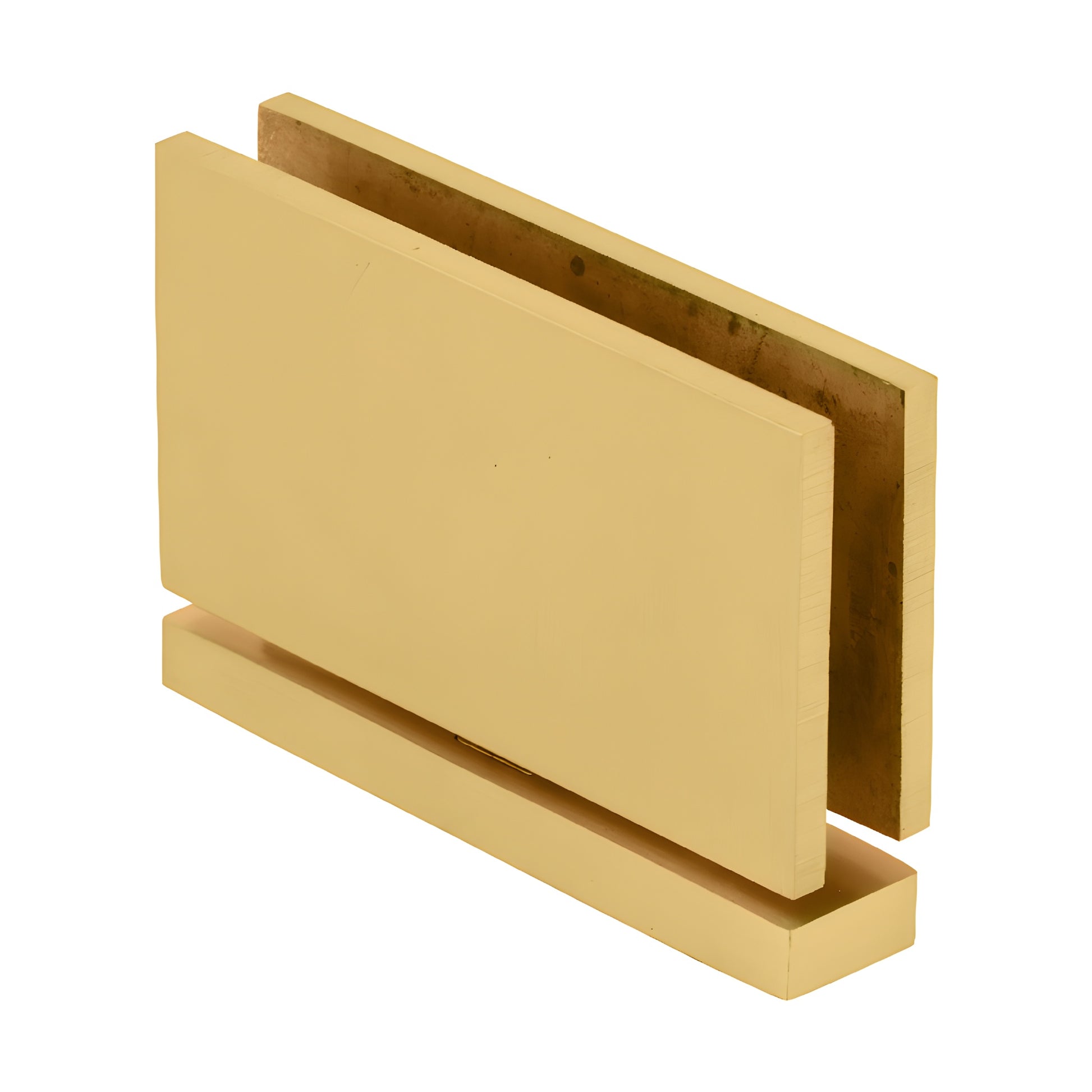

CRL Cardiff Senior Satin Brass Door Hinge - Heavy Duty

• Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
• Larger version of the Cardiff Series to accommodate 1/2" (12 mm) thick glass
• Square corners for a sharp, traditional look
• Use with monolithic tempered safety glass
• Adaptable to CRL Deluxe Header System
• Stocked in many popular hardware finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges are engineered for 1/2" (12 mm) tempered safety glass and are commonly used as tempered shower door pivot hinges and commercial/residential glass door pivots. These top-and-bottom pivot hinges carry most of the door weight on the bottom hinge and can be inset from the door edge to provide clearance for towel bars or other projections.

Senior Cardiff hinges are self-centering with four strong springs for maximum retention strength and consistent closing performance. The hinge adapts to CRL's Deluxe Header System using the Senior Adapter Block (SRHAB01 — sold separately) for enclosures that do not reach the ceiling; alternatively, the hinges can be floor-and-ceiling mounted for full-height doors.

Performance: Using two hinges with 1/2" (12 mm) glass, the pair will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm). Ideal for heavy glass shower doors and other tempered glass swing doors.

SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) Tempered Safety Glass
Special Features: Top and bottom mount maximizes exposed glass area and can reduce glass fabrication costs versus side-mounted glass-to-glass hinges that require additional cut-outs.
Construction: Solid Brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Optional: Use SRP1VP1N pivot pins (sold separately) for a 5° tighter door closer; sold as a set (one top, one bottom).

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For applications outside intended shower/door use, contact CRL Shower Door Technical Sales for approval. Use only the template provided with this hinge—cut-out dimensions may differ from other brands.
