CRL

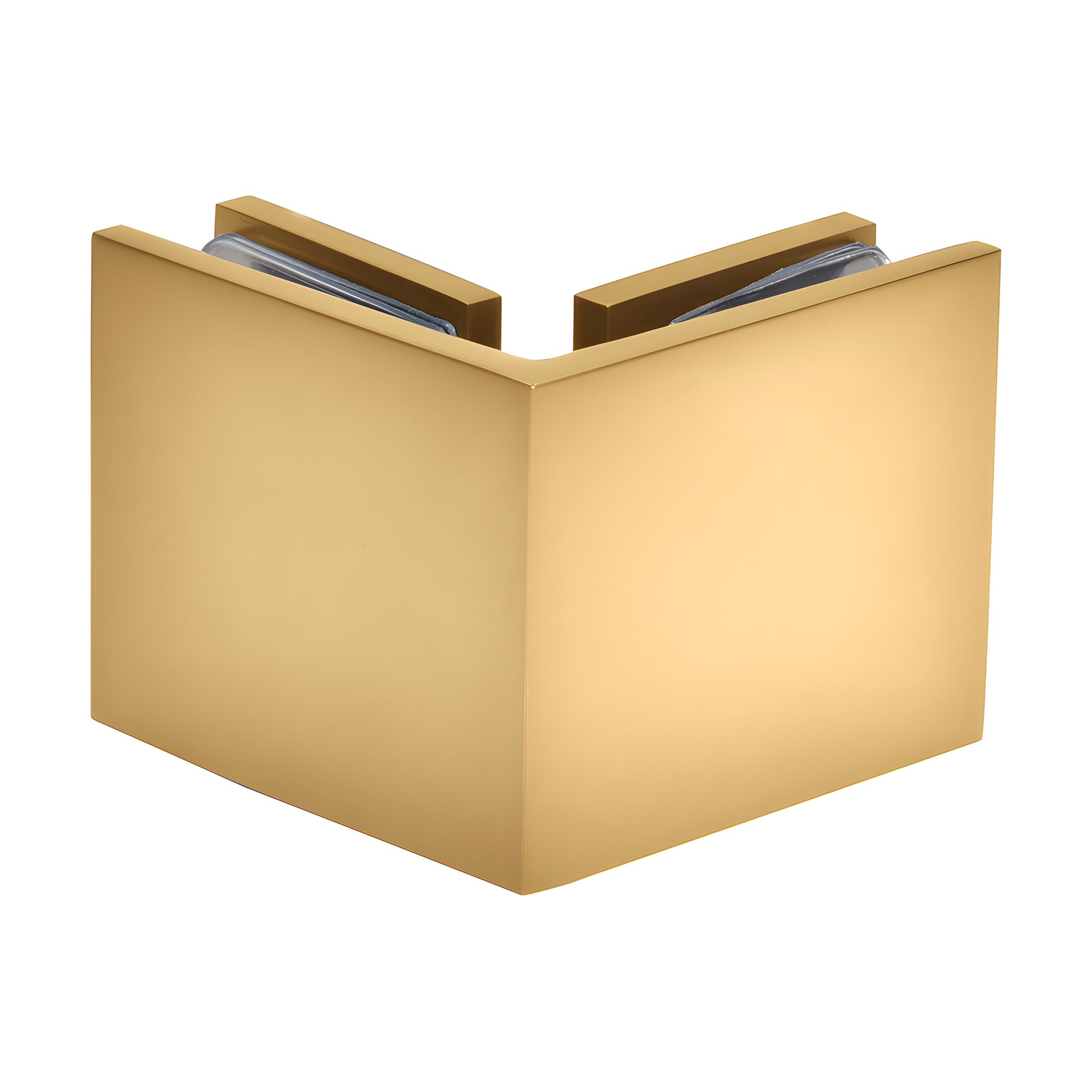

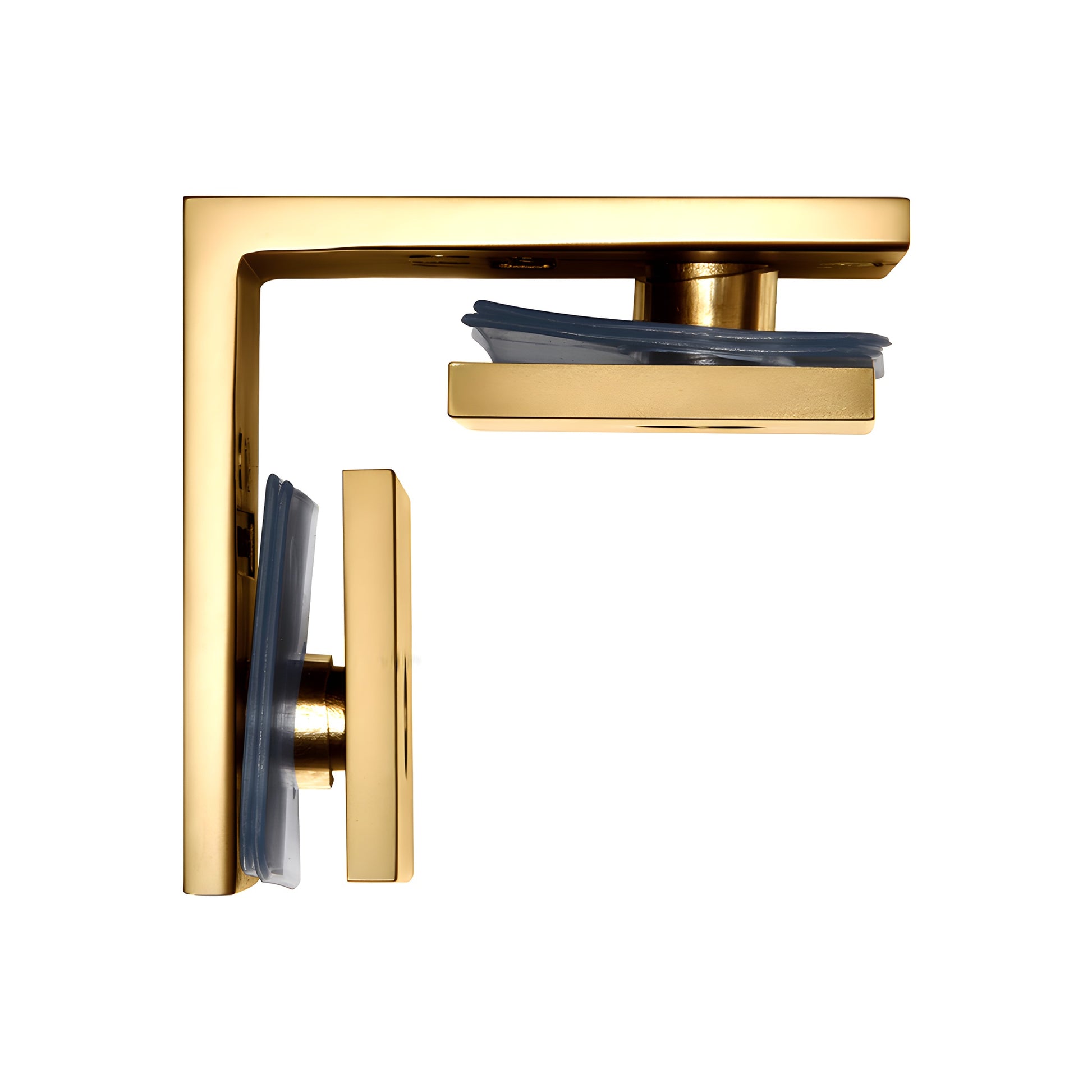

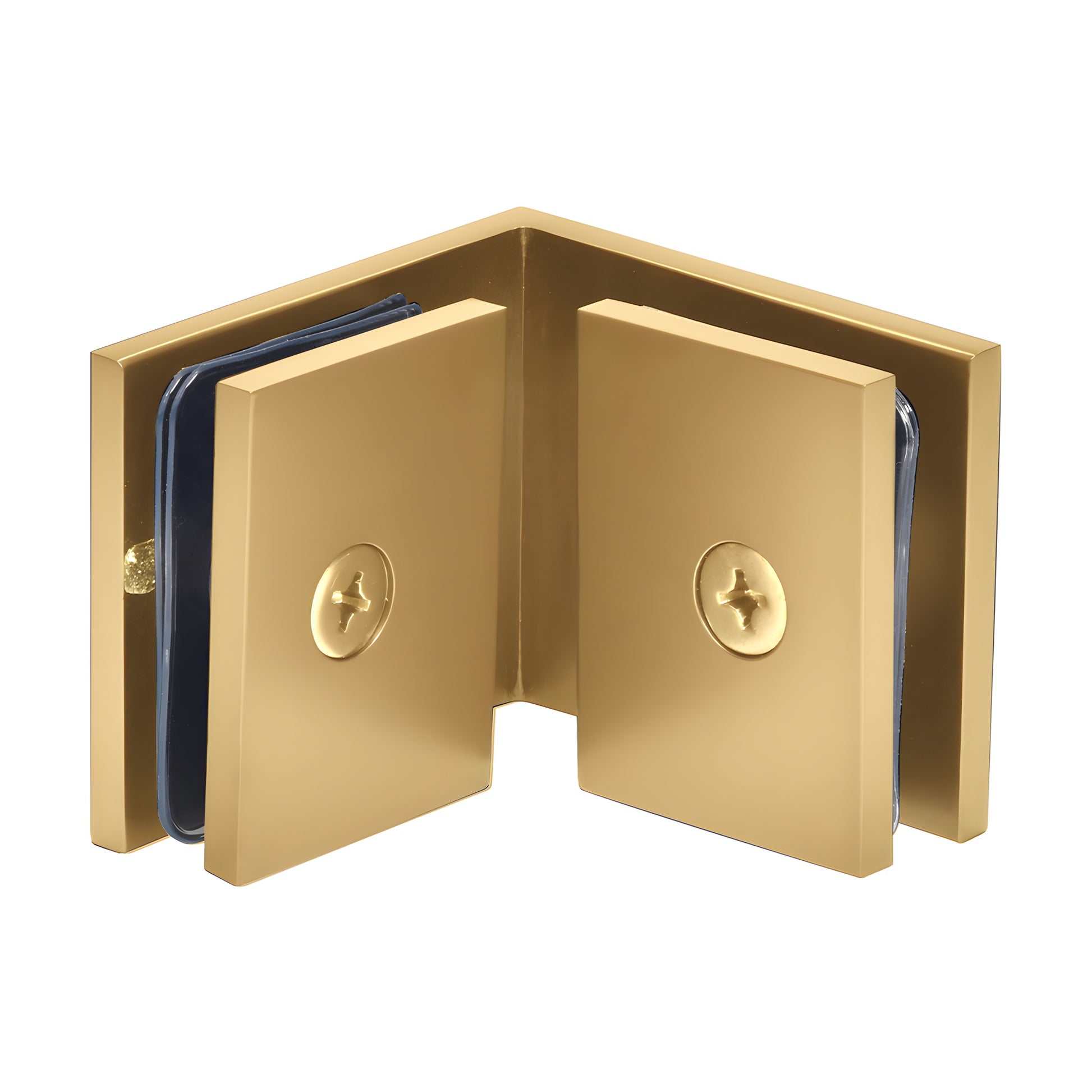

CRL Satin Brass Square 90° Glass-to-Glass Clamp for Shower Doors

CRL Satin Brass Square 90° Glass-to-Glass Clamp for Shower Doors

$50.91 CAD
$50.91 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SGC90SB
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glass To Glass Angle
90
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

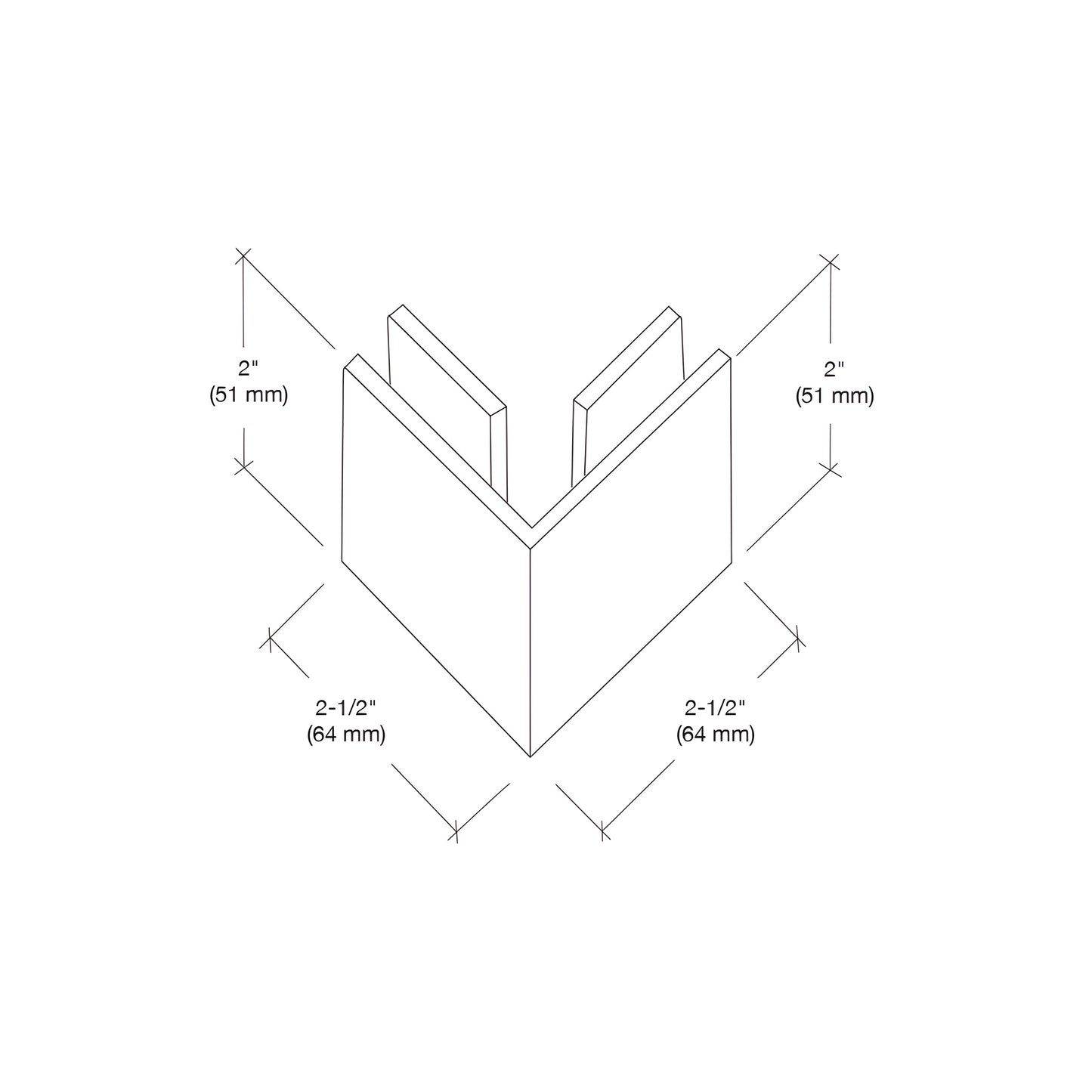

Height
2 in. (51 mm)
Leg Width
2-1/2 in. (64 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • For 3/8" to 1/2" (10 to 12 mm) glass
  • Secures fixed panels for frameless shower enclosures and 90° glass-to-glass corners
  • Solid Brass construction
  • Alternative to traditional U-channel—helps achieve an "all-glass" appearance
  • Glass fabrication required; use monolithic tempered glass

CRL Square 90 Degree Glass-to-Glass Clamps feature sharp squared corners and a closed back to connect two fixed glass panels at a 90° corner. Panels may be overlapped or mitered. Drawings and templates for all clamps are available for accurate installation.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Most shipping weights are approximate. If an exact weight is required to determine shipping costs before placing your order, please contact CRL Customer Service. Product images are the actual product or a close representation; colors may vary by monitor.

Brass Finish Advisory:
Brass is durable but can oxidize over time, causing a tarnished appearance regardless of initial packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance.

SKU: SGC90SB — For CAD drawings, templates, and ordering information, contact CRL

Specifications

Templates
BGC90 SGC90 Template
