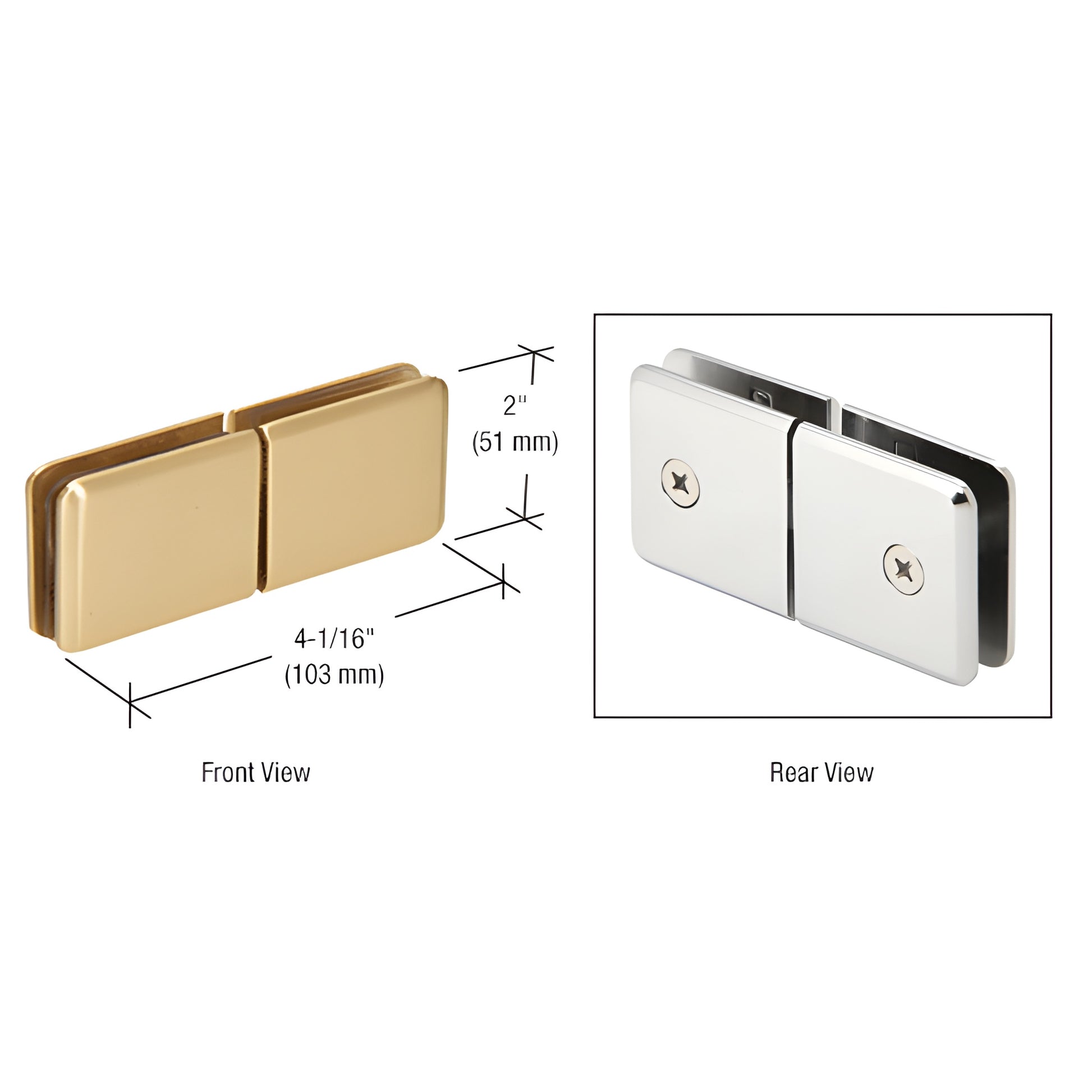

• Beveled 180 glass-to-glass movable transom clamp, satin brass finish, solid brass, fits 3/8-1/2" glass (SKU BGC188SB).
1 1

CRL

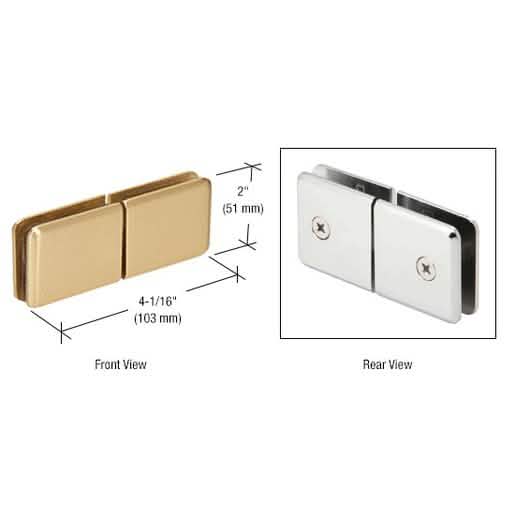

CRL Satin Brass 180Β° Glass-to-Glass Transom Clamp, Square Beveled

CRL Satin Brass 180Β° Glass-to-Glass Transom Clamp, Square Beveled

$41.16 CAD
$41.16 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# BGC188SB
Shipping Weight: 15.328 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Design Style
Beveled
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Satin Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • For 3/8" to 1/2" Thick Glass (10 to 12 mm)
  • Glass transom swivels to allow release of steam
  • Wall mount and 180ΒΊ glass-to-glass models available
  • Solid brass material
  • Use with monolithic tempered glass

CRL Beveled 180ΒΊ Glass-to-Glass Movable Transom Clamps (SKU: BGC188SB) allow a movable transom to rotate off an inline fixed glass panel. Ideal for tempered glass shower transoms and commercial frameless glass enclosures, this beveled 180-degree movable transom clamp provides smooth, balanced movement when the clamp is centered on the transom. It can also be used with Cat. No. BGC186 Wall Mount Movable Transom Clamp for alternate installations.

Replacement parts: Cat. Nos. 90295A120 (nylon washer), 211039 (10-32 x 3/4" flat head Phillips screw), 193004 (10-32 nylon lock nut), and BGCU1G (gasket).

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clampsβ€”call for details.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2"
Glass Fabrication Required: BGC180

Specifications

Templates
BGC188 Template
