Product Details
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Doors Can Swing Either In or Out
- Use Monolithic Tempered Glass

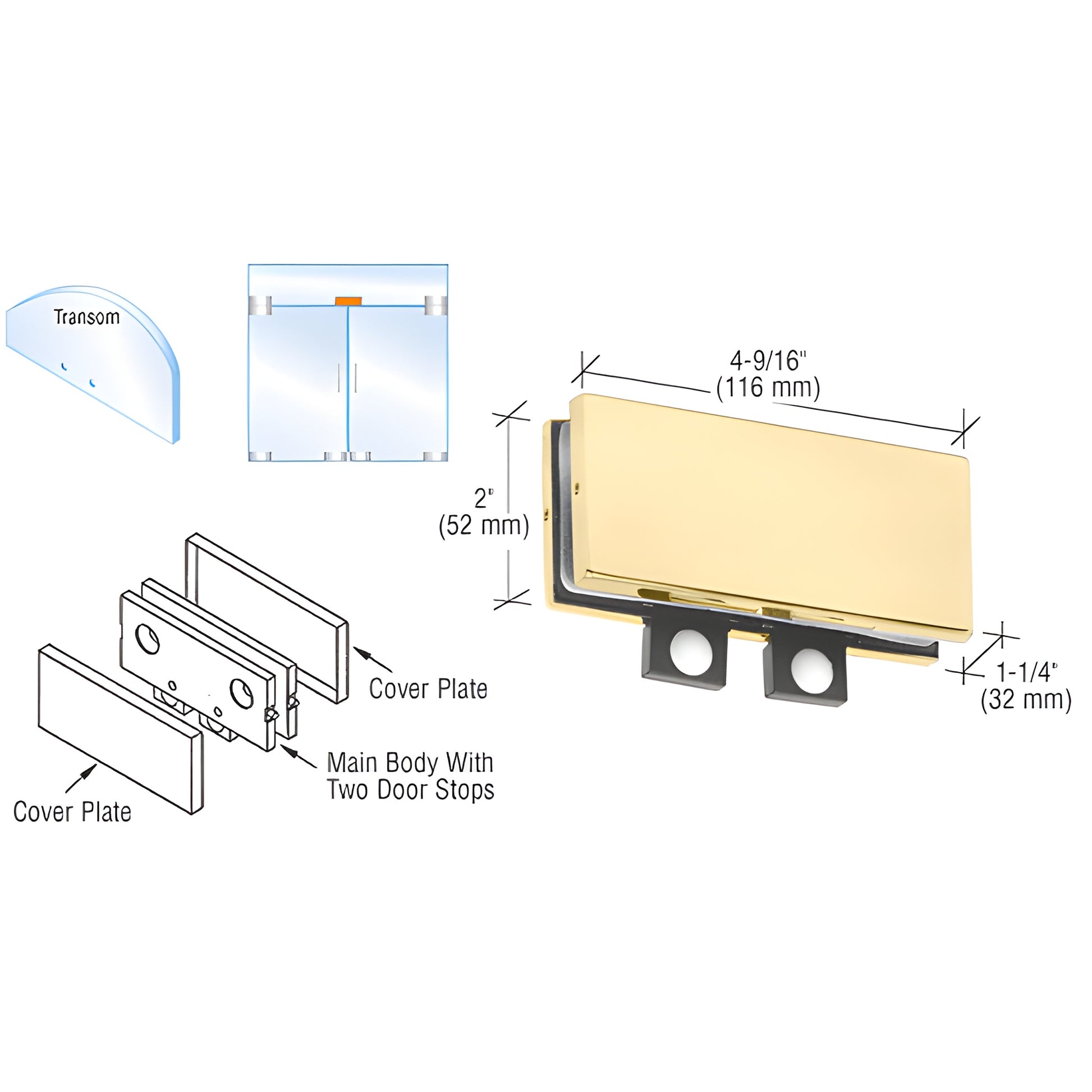

CRL Door Stops can be set for the doors to only open in or out. You can also make it so one door opens in and the other door opens out. The Connector can be used on one lite or two lite transoms, and with the stops removed can be used as a Connector only. When used as Connector only, it is suggested that you turn the fitting around so the notches in the Cover Plates face up, and are not visible.
The connector can be used on one lite or two lite transoms, and with the stops removed, can be used as a Connector only. When used as Connector only, it is suggested that you turn the fitting around so the notches in the Cover Plates face up, and are not visible.
GLASS FABRICATION REQUIRED:
Two 3/4" (19 mm) Diameter Holes
COMES WITH:
Template and Instructions
Product Warning:
These Fittings are not for use with laminated glass.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
