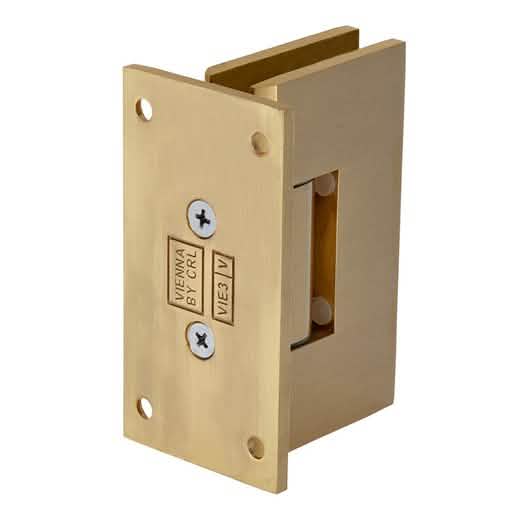

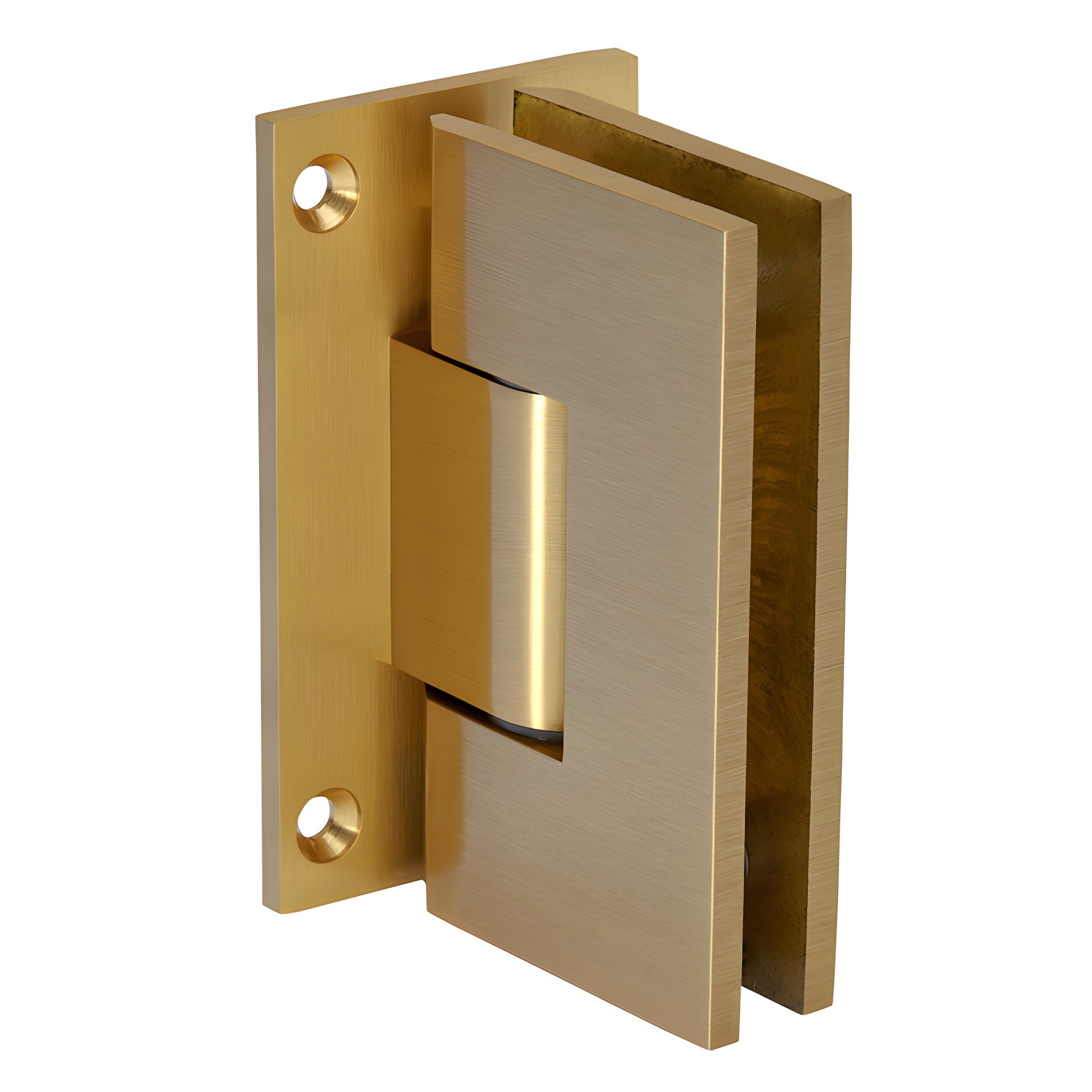

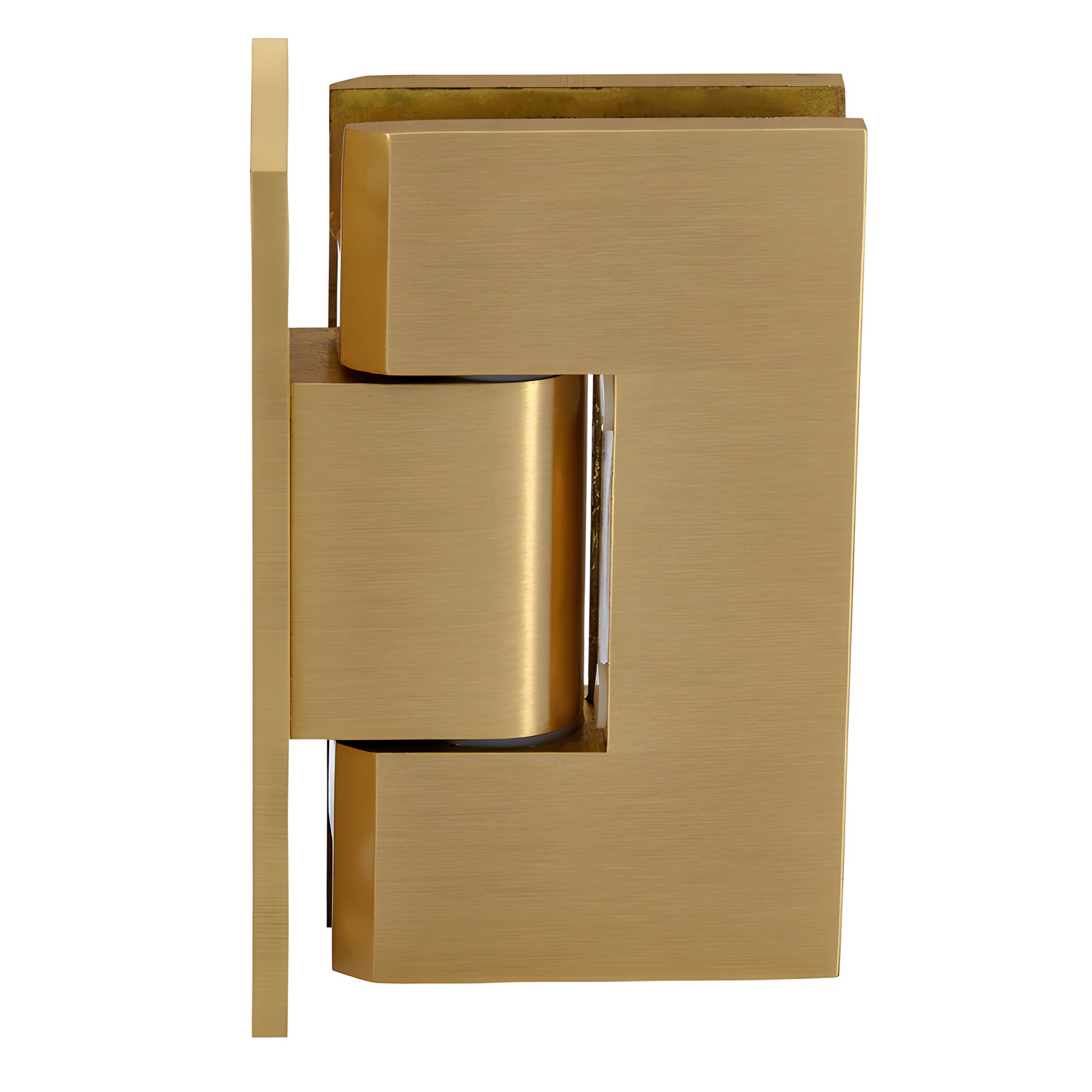

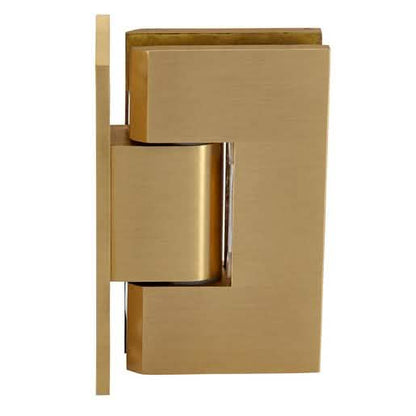

CRL Vienna 337 Satin Brass Adjustable Wall-Mount Door Hinge

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

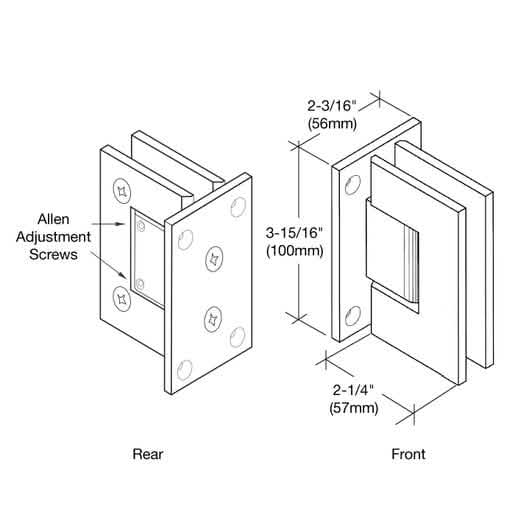

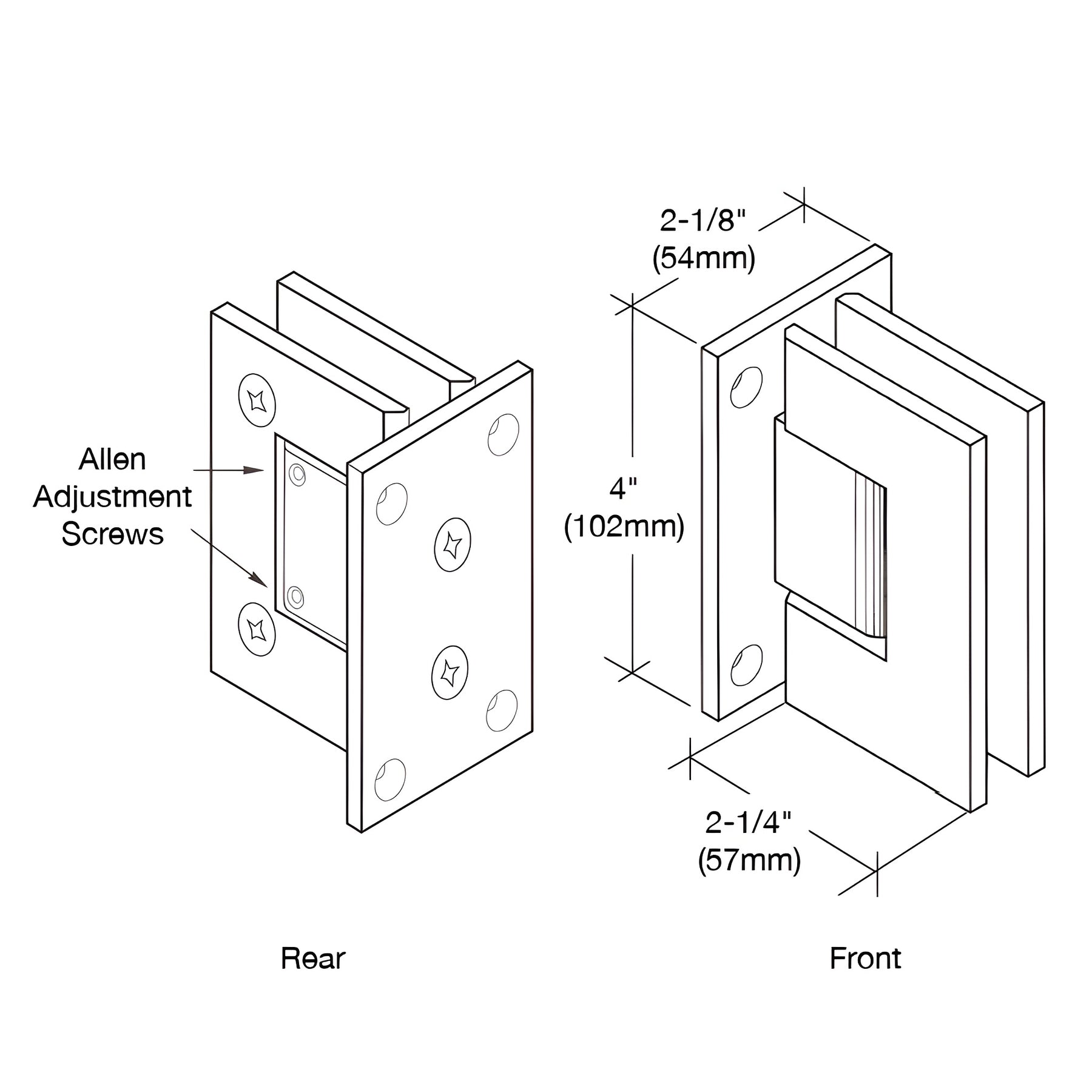

The CRL Adjustable Vienna Series (SKU V1E337SB) upgrades the popular Vienna Hinge into a versatile, field-adjustable glass shower door hinge. Adjust the closing angle up to 90° after the door is hung—no door removal required. Loosen the Allen set screws, rotate the door to the desired position, then re-tighten to self-center the door at the new closed position. The door can swing 90° inward and 90° outward (changing the factory angle will reduce swing in that direction). For outward-swing installations with a clear jamb, set the hinge to close 5° into the shower for a snug jamb seal.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models use the 85° side for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle walls—specify the needed angle up to 45° if the standard 5° does not achieve the desired closure.

LOAD CAPACITY:
Using two hinges with 3/8"–1/2" (10–12 mm) tempered glass: holds up to 110 lbs (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) tempered glass: holds up to 140 lbs (63 kg), maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90° without Removing Door
Construction: Solid Brass
Hinge Swings: 90° In and 90° Out (at factory set position)
Closing Type: Self-Centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes are available on request—contact CRL Technical Sales Shower Door Department.
