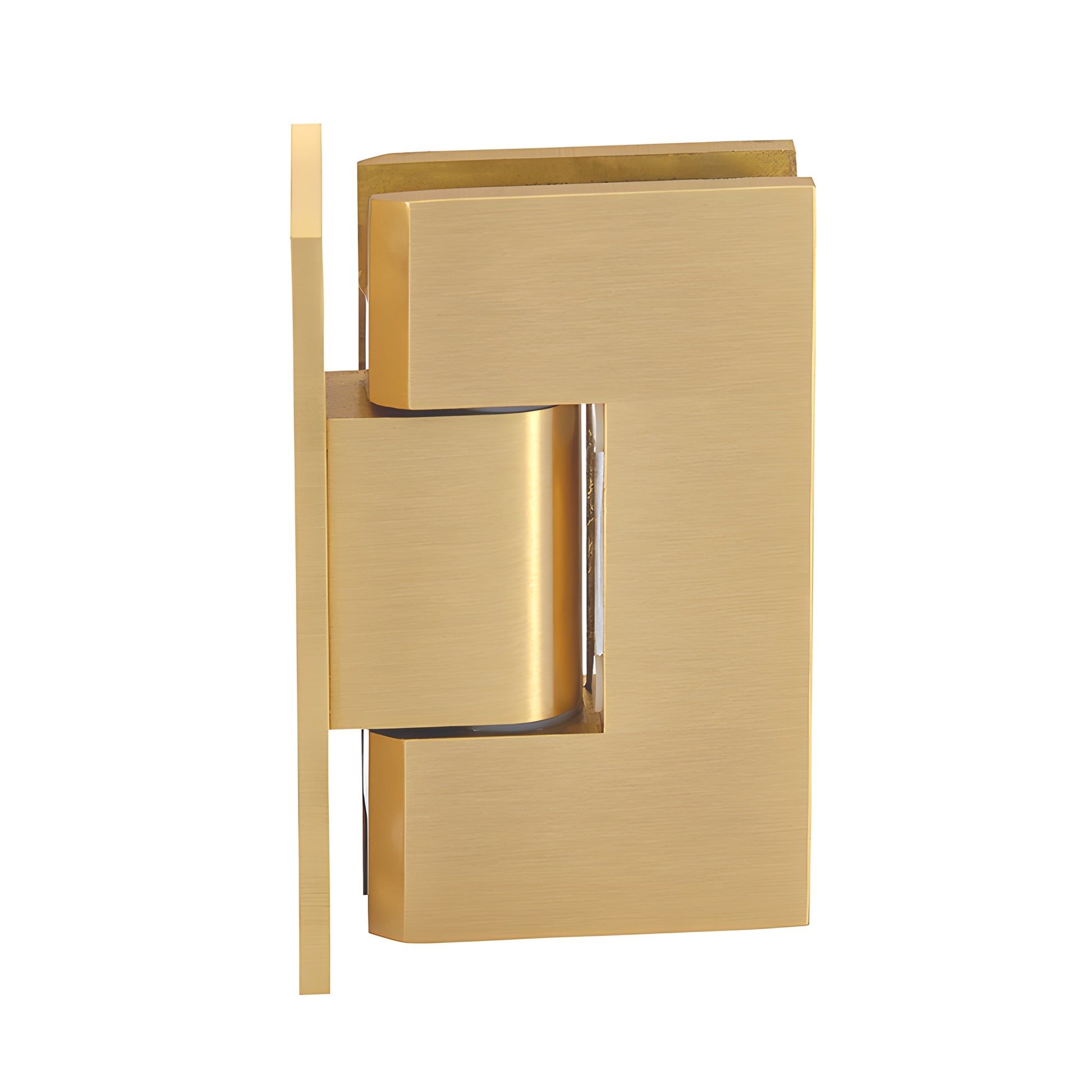

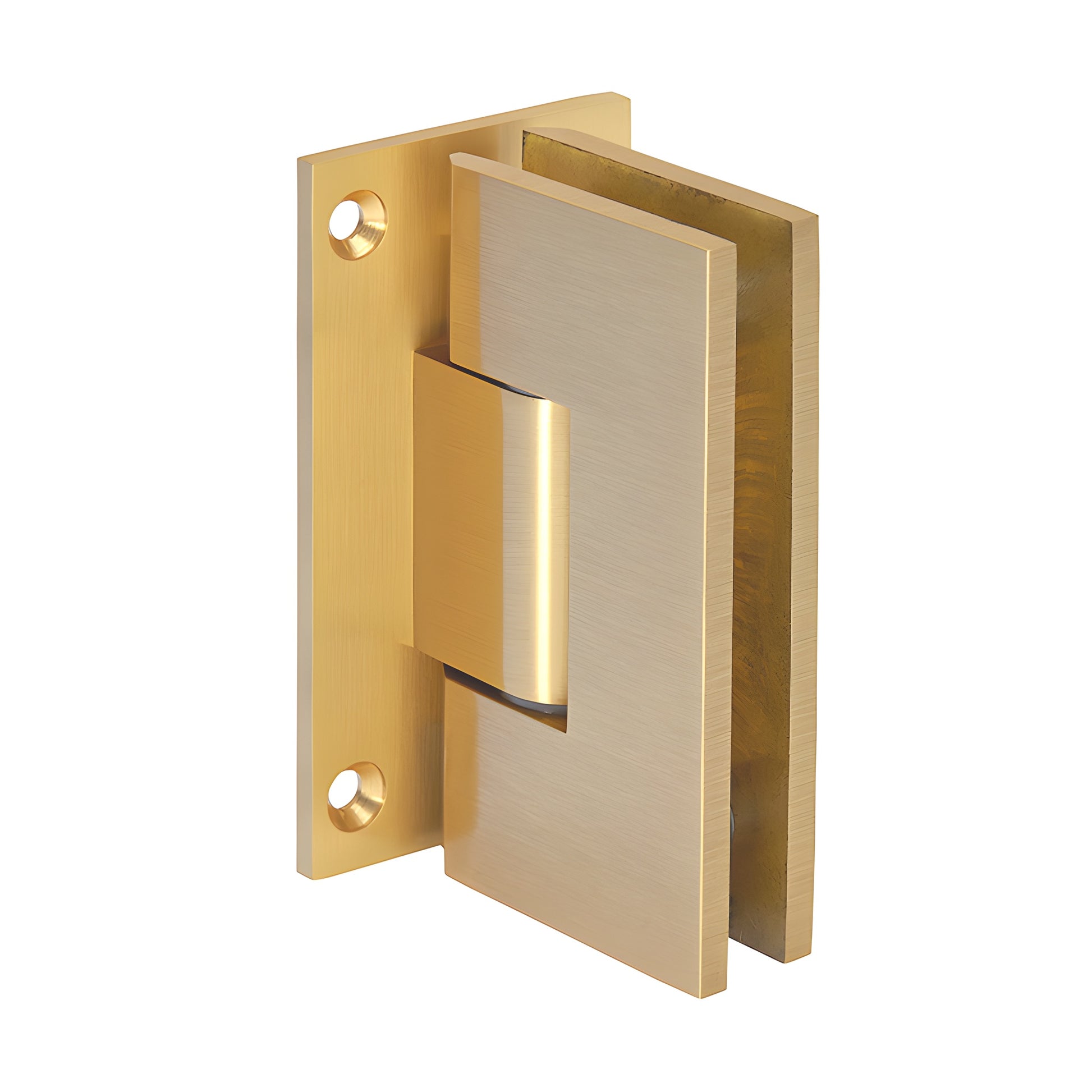

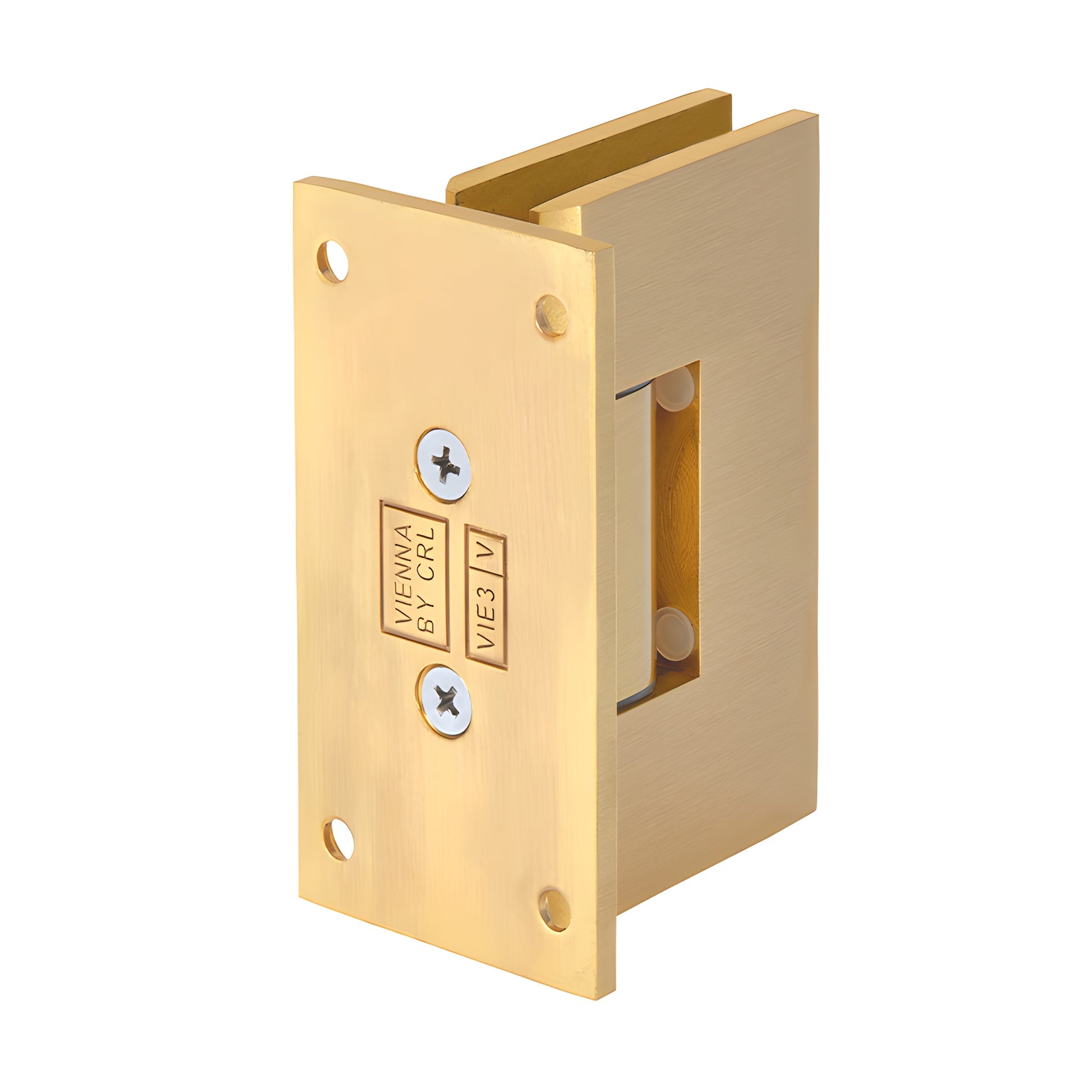

CRL Vienna 537 Satin Brass 5° Preset Shower Door Full Backplate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Self-centering hinge with reversible 5° pivot pin for tighter closure
• Available in several durable finishes; custom finishes on request
• 3‑year limited warranty
• Factory pre-set 5° model for a tighter closure into the shower interior
• Designed for monolithic tempered glass installation

CRL Vienna Hinges (SKU: V1E537SB) are engineered for wider, heavier shower doors where standard hinges fall short. Two internal steel pins offer mounting flexibility: keep both pins for compatibility with CRL "mouse-ears" cut-outs, or remove them for greater adjustability and fit rectangular, square-cornered CRL or competitive cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard units ship with the 90° side active; Pre-Set models ship with the 85° side engaged for a 5° tighter closure into the shower. Rotate (don’t flip) the pin to change the angle.

CUSTOM PIVOT PIN: Custom pivot pins are available up to 45° to accommodate off-angle installations when walls or jambs are not plumb.

Load Capacity:

• Using two hinges with 3/8"–1/2" glass: supports up to 110 lbs (50 kg), max door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" glass: supports up to 140 lbs (63 kg), max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Requires CRL cut-out (except V1E092 which requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request — contact CRL Technical Sales, Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower door use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL cut-out dimensions may differ from other brands.
