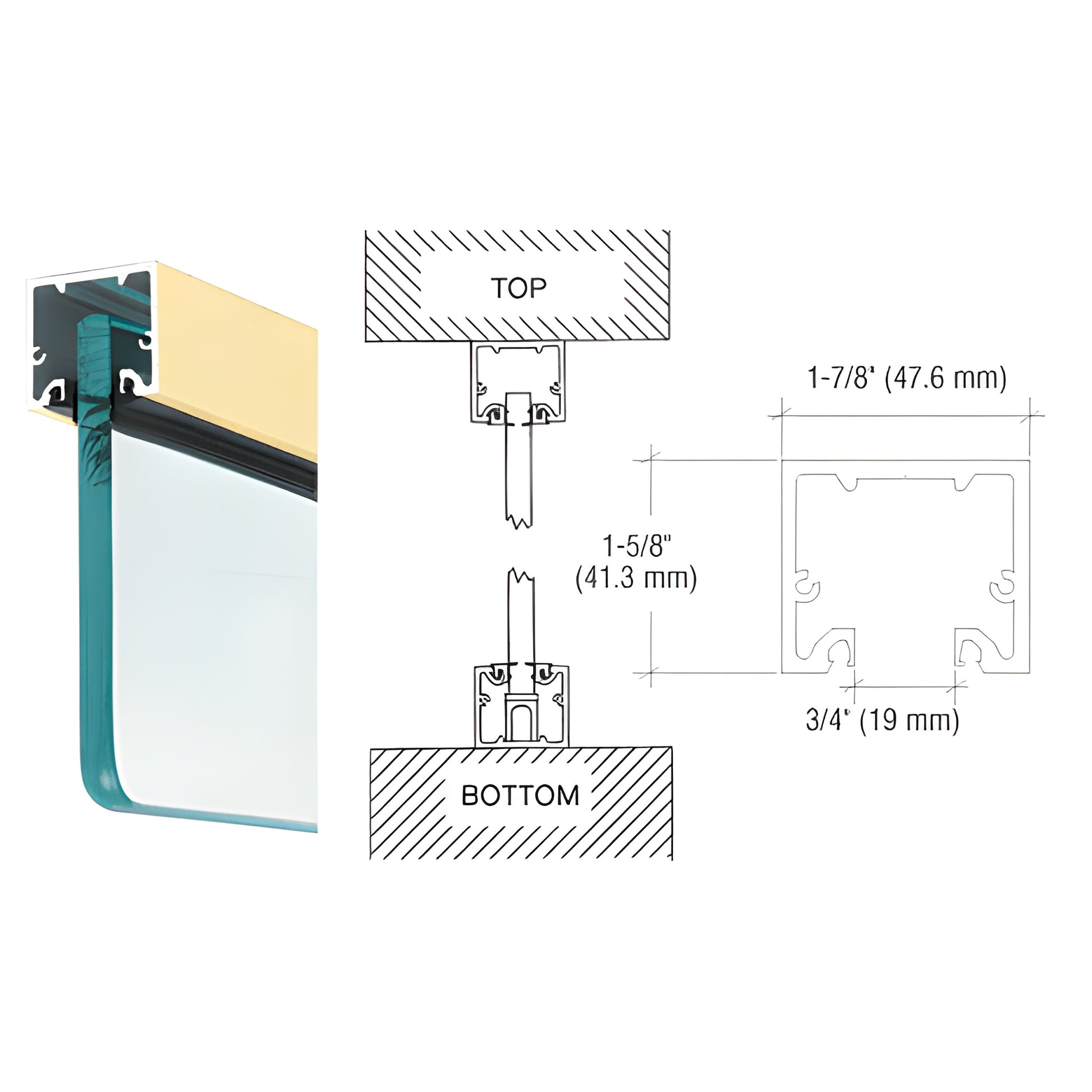

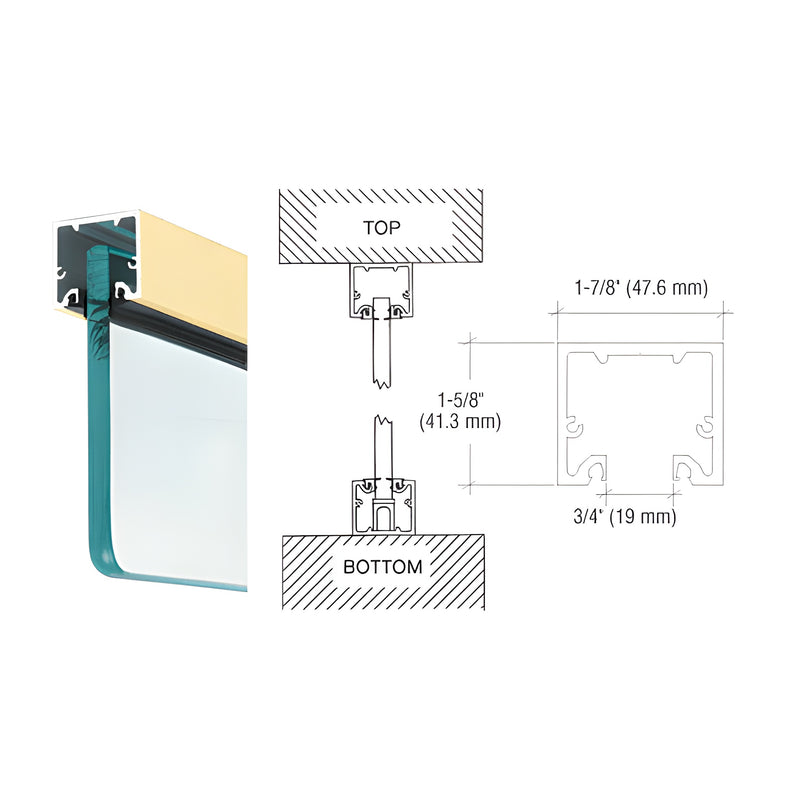

CRL Satin Brass U-Channel w/ Roll-In Gasket 3/8-1/2" Glass, Custom
CRL Satin Brass U-Channel w/ Roll-In Gasket 3/8-1/2" Glass, Custom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# NH2SBCL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Brass
Glazing Thickness
3/8 in. (10 mm)
Height
1-5/8 in. (41 mm)
Length
Specify
Width
1-7/8 in. (48 mm)
Overview
- Matches width of door and sidelite rails and accepts roll-in gasket, top pivot block, and flush snap-in insert
- Offered in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
- Optional sidelite rail adapter creates a continuous sight line when used with the narrow header
CRL Wide U-Channel and Narrow Header (SKU: NH2SBCL) is designed for commercial glass doors and sidelites where a consistent sight line and simplified installation are required. Use as:
- a wide U-channel matched to our Sidelite and Door Rails for glass retention,
- a narrow header that accepts a top free‑swinging pivot to secure door tops, or
- an even sight line system by fastening the fabricated narrow header to the opening and attaching the sidelite rail with a 1/4" (6.4 mm) header saddle.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of initial packaging or storage. For care and warranty information, see the Brass Finish Disclaimer in the Technical References section.
Need this narrow header or wide U-channel for glass doors or sidelites? Contact CRL or add SKU NH2SBCL to your quote request now.
