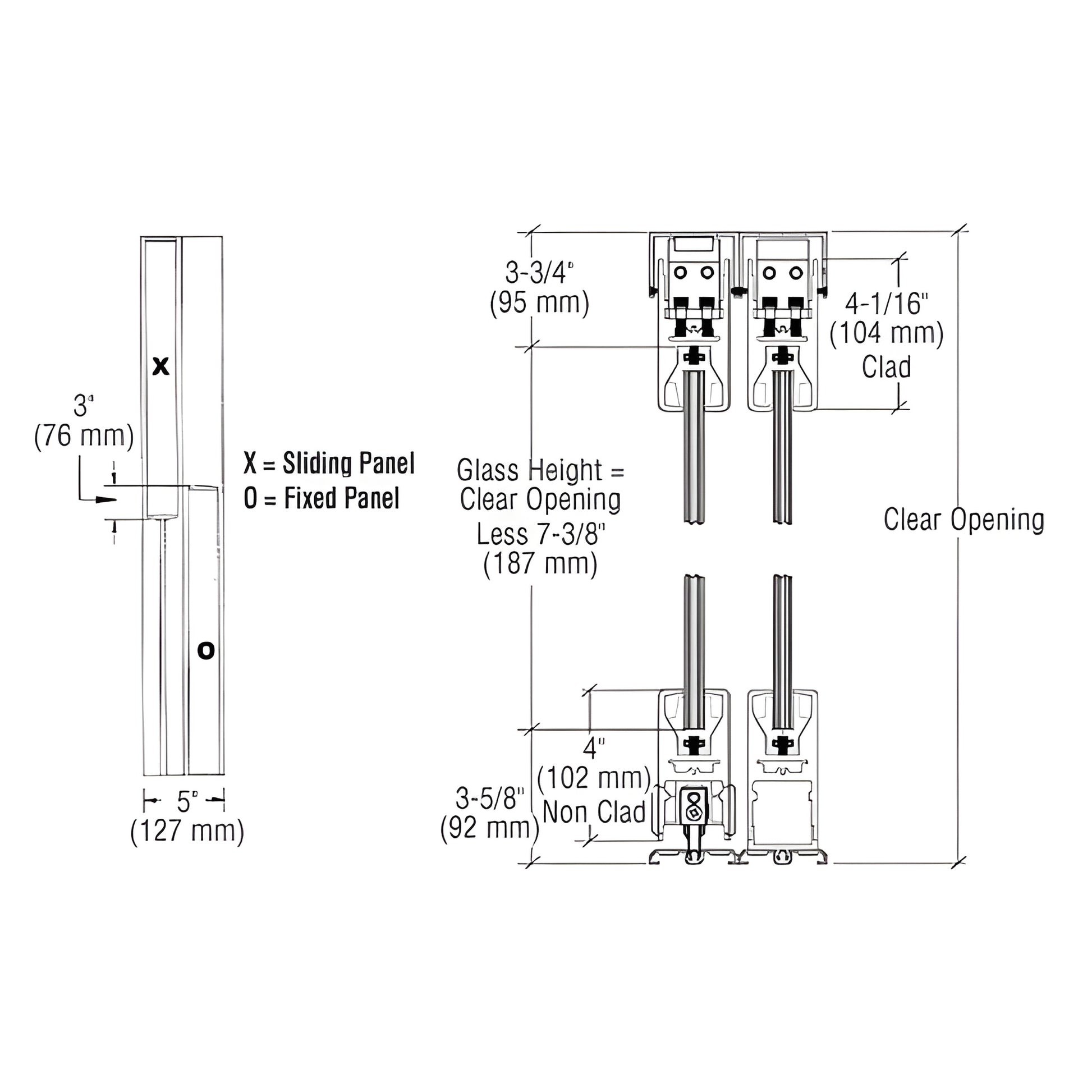

• Line drawing of CRL SDR bottom-rolling sliding door system, 4 in satin brass rails, dimensions shown. SKU 4SDR2CSB
1 1

CRL

CRL Satin Brass XO/OX Sliding Door Entrance 4 in Square Rail

CRL Satin Brass XO/OX Sliding Door Entrance 4 in Square Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR2CSB
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Brass
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) square rails top and bottom uses the proven Wedge-Lock® Glass Securing System for secure, low-profile glass retention. DR4S Series rails are used for all door and fixed panels and are custom fabricated to your specifications. Doors may be ordered with or without locks in the bottom rail.

  • Maximum door width: 48" (1.22 m)
  • Maximum door height: 108" (2.74 m)
  • Maximum door weight: 234 lbs. (106 kg)

Key differentiators: 4" square top and bottom rails for consistent aesthetics, Wedge-Lock® retention for simplified glass installation, and custom fabrication to match project dimensions — ideal for storefronts, interior sliding glass partitions, and residential applications requiring heavy-duty bottom rolling hardware.

SKU: 4SDR2CSB

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time regardless of initial packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section below.

Ready to specify? Contact CRL Customer Service for a quote or custom fabrication details.
