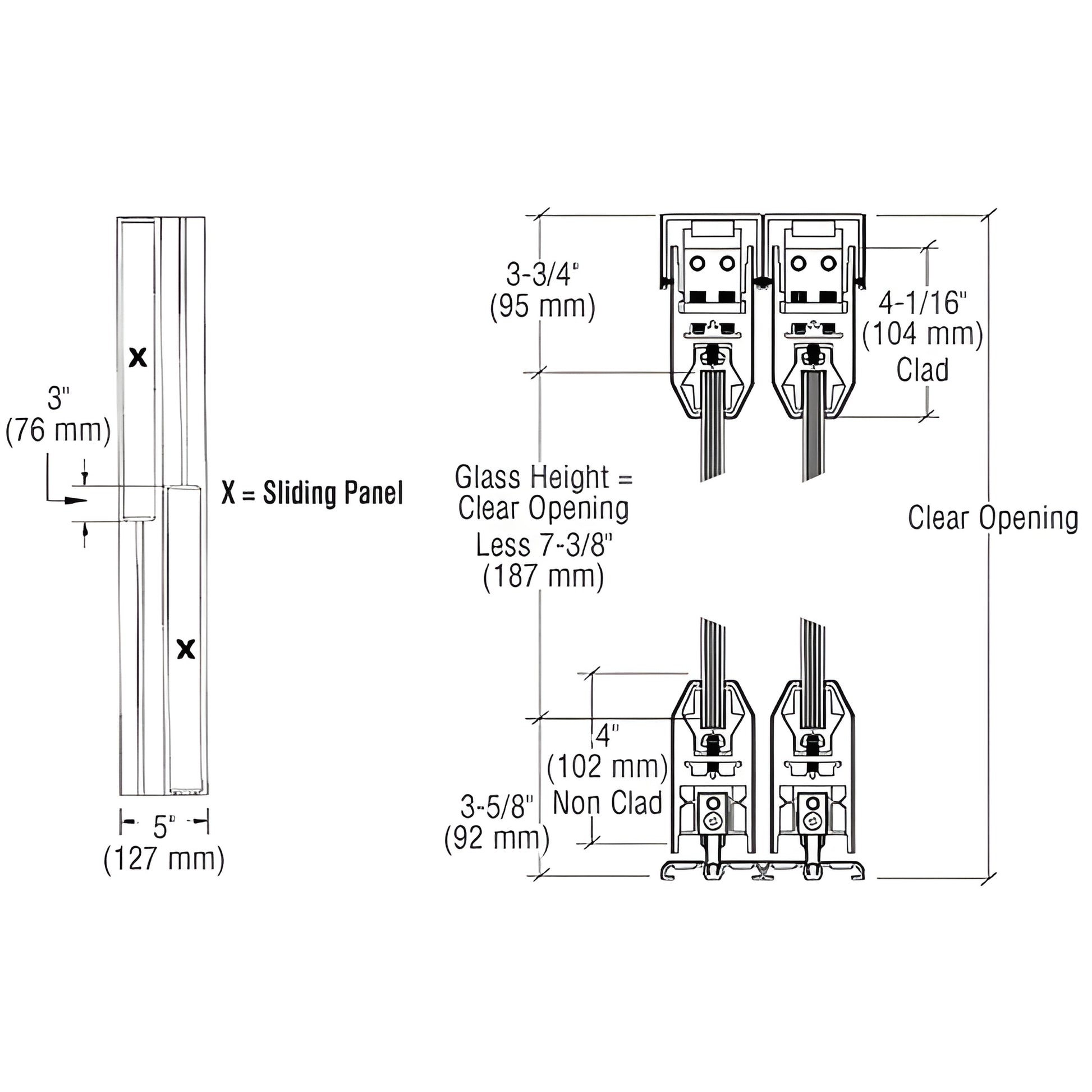

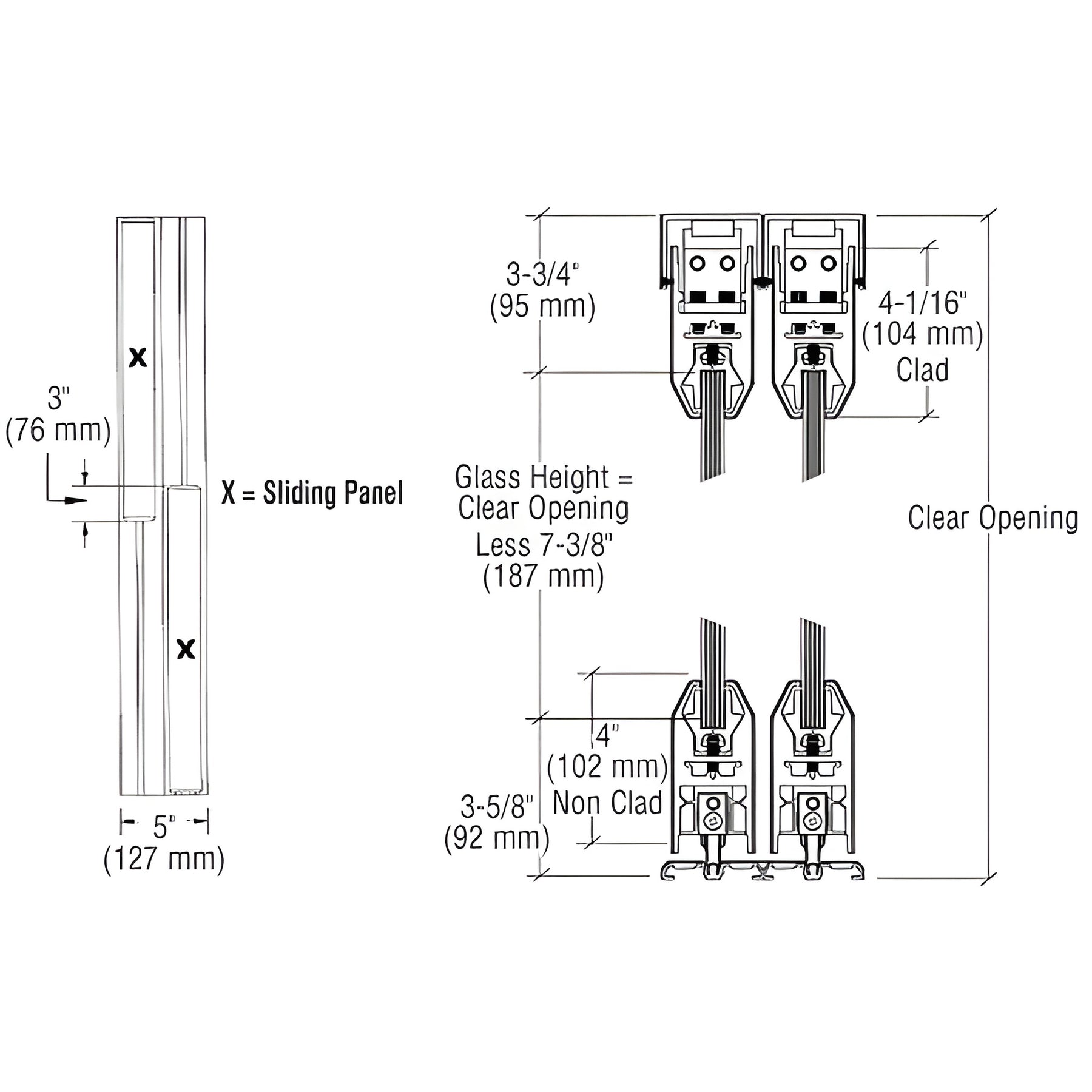

• SDR2BSB bottom-rolling sliding door system CAD schematic showing DR4T rails, dimensions, glass height; satin brass finish
1 1

CRL

CRL XX Format Satin Brass 4" Top/Bottom Tapered Rail Sliding Door Kit

CRL XX Format Satin Brass 4" Top/Bottom Tapered Rail Sliding Door Kit

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR2BSB
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
X X
Door Type
Sliding
Finish/Color
Satin Brass
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR2BSB) features 4" (102 mm) tapered DR4T series rails top and bottom and uses the proven Wedge-Lock® Glass Securing System for reliable glass retention. DR4T rails are used for all door and fixed panels and are custom fabricated to your specifications. Doors are available with or without locks installed in the bottom rail. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lbs. (106 kg). This bottom-rolling sliding door system is ideal for commercial and architectural applications requiring durable, low-profile hardware.

Most shipping weights are approximate and have not been verified. If you require exact shipping weight or shipping cost estimates to complete your order, please request this information prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary based on your monitor and video card settings.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of initial packaging or storage. For care and maintenance details, view the Brass Finish Disclaimer in the Technical References section below.

Select finishes and request a custom-fabricated DR4T bottom rolling sliding door system to match your project—contact CRL or your local distributor to order.
