CRL Satin Chrome 1-1/4 in Glass Standoff Base 1/2 in Signage Hardware

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use with Monolithic Tempered Glass

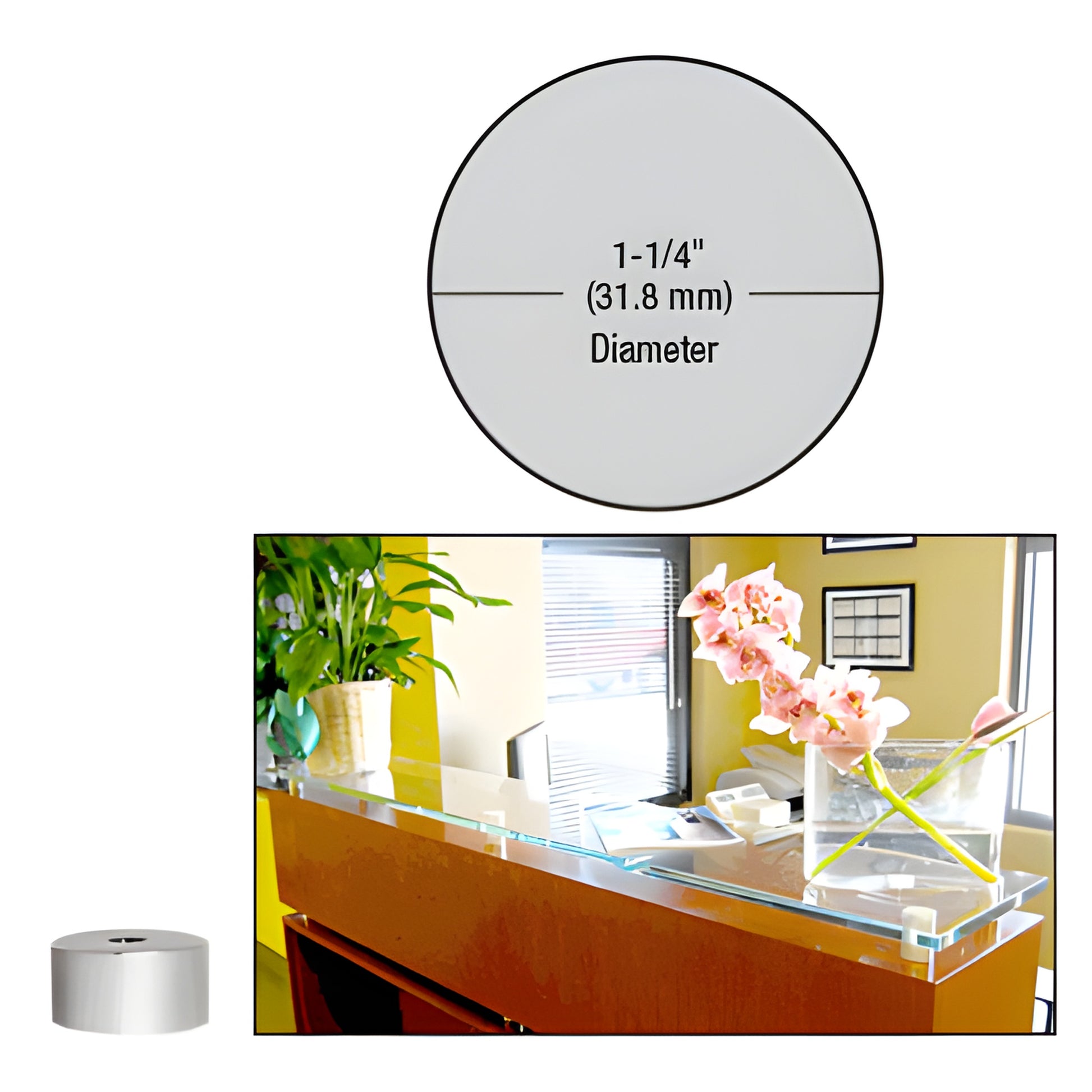

With CRL's 1-1/4" Diameter Standoff System (SKU S0B11412SC), create modern glass panel standoffs for retail, commercial, and residential projects. The 1-1/4" (32 mm) standoff system includes a variety of bases and caps—round or square—allowing multiple contemporary looks. Install quickly by drilling 5/8" (16 mm) holes in glass, plastic, or wood panels and polishing or finishing the edges. Each stock 1-1/4" (32 mm) standoff base is drilled and tapped 5/16"-18 through the full length. Custom lengths and finishes are available by request from our Technical Sales Department.

Available in many distinctive decorator finishes, CRL standoffs combine high-tech design and appearance. The flexible system can incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) standoff bases come in eight lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies are ordered separately.

The CRL Standoff System includes a full range of mounting accessories available in any quantity so you get exactly what the job requires. For installation guidance, weight capacity details, or design assistance using CRL standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter standoff bases is 1/4" (6 mm) with Standard and Low Profile Caps, and 3/8" (10 mm) with the Flush Mount Cap.

Product Warning:

Due to diverse applications, standoff system weight limits depend on wall or substrate anchoring and material strengths—verify anchoring and substrate before installation.
