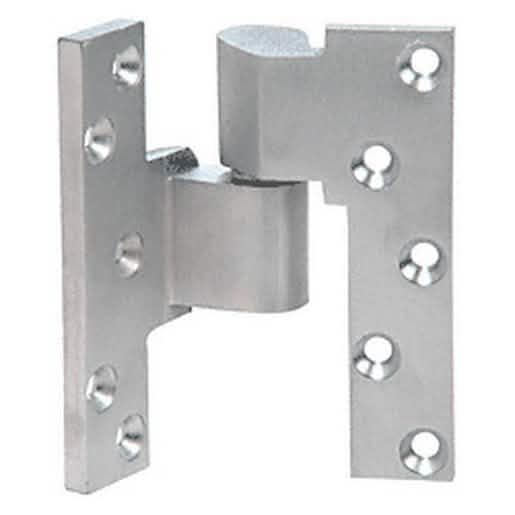

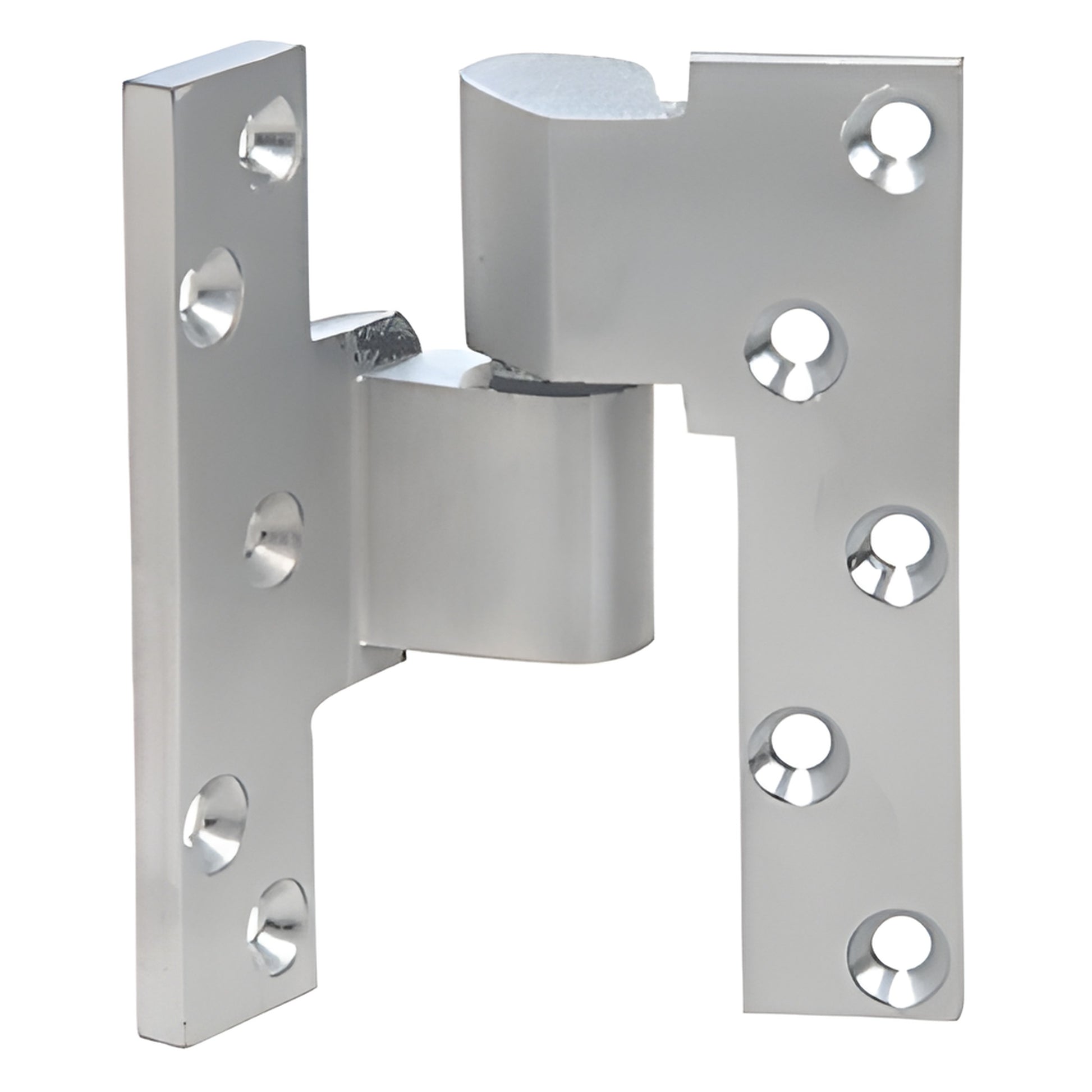

CRL Satin Chrome 3/4 in Offset Intermediate Door Pivot Left-Hand

• For new or retrofit use
• Intended for use with aluminum storefront doors to maintain door alignment
• Fully retractable pin with 5/8" vertical adjustment
• Full race ball-bearing and oilite bronze bushing for long maintenance-free life
• Available in four finishes
• Handed — left or right

These CRL 3/4" (19 mm) Intermediate Offset Pivots (SKU: CRL19LHSC) are designed for new or retrofit use with standard 1-3/4" (44.5 mm) storefront aluminum doors to maintain door alignment. These handed, full-mortise pivots feature a full race ball bearing and oilite bronze bushing and are not intended to be load-bearing pivots. Pivots provide a 5/8" (16 mm) vertical adjustment and include a fully retractable pin for easier installation — ideal when specifying a 3/4 inch intermediate offset pivot or storefront aluminum door pivot for commercial entrances.

Product Warning:

These pivots maintain door alignment when used with doors 90" (2.29 m) or taller. Each additional 30" (762 mm), or fraction thereof, requires an additional intermediate pivot.

Order the CRL19LHSC 3/4" intermediate offset pivot today to ensure precise storefront door alignment.
