CRL Satin Chrome Slot Mount Standoff for 1/2" Glass Panels

• Fits 1/2" (12.7 mm) thick material
• No drilling required for installation — ideal for glass shelves and delicate panels
• Available in multiple architectural finishes
• Compatible with monolithic tempered glass

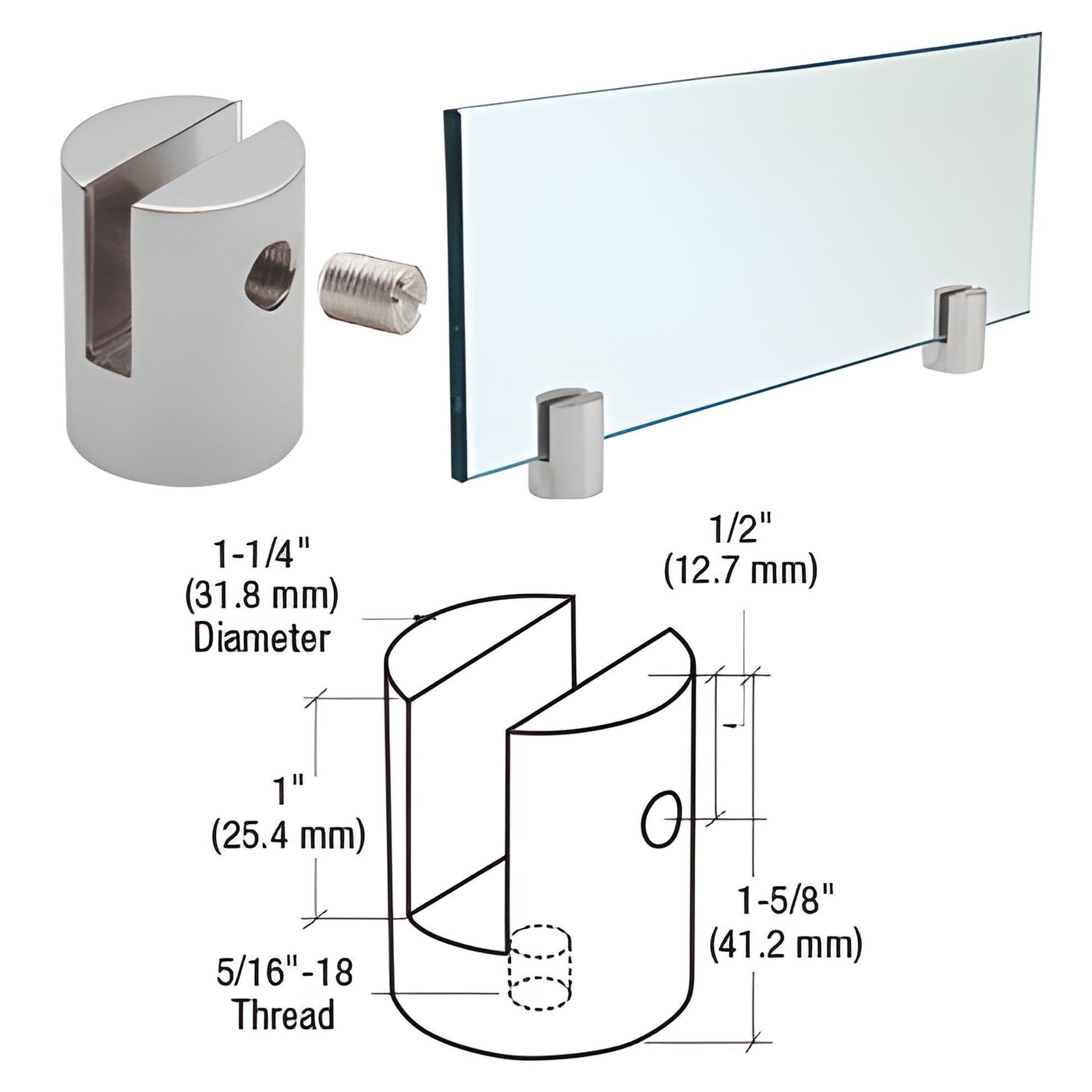

CRL Slot Mount Standoffs (SKU: SM12SC) are engineered for vertical or horizontal mounting and provide a no-drill solution for installing shelves, glass panels, and display materials. The nylon-tip set screws secure panels without scratching or damaging material, making these slot mount standoffs a preferred choice for glass shelf supports and frameless glass installations. This 1-1/4" (32 mm) diameter standoff is designed to hold 1/2" (12.7 mm) thick material. For wall-stud anchoring, the maximum recommended shelf projection is 5" (127 mm).

Slot mount standoffs can be used independently or paired with Standard Standoff Bases. Available slot widths: 1/4" (6 mm), 3/8" (10 mm), and 1/2" (12.7 mm). These options make them versatile for glass shelf applications, retail displays, and architectural glazing accents.

Slot Mount Standoff Assemblies Consist of:
1 Each Standoff
1 Each Nylon Tip Set Screw
1 Each Clear Gasket

Product Warning:

Due to the diversity of applications, weight limitations for standoff systems depend on wall or substrate anchoring and material strengths. Confirm anchoring and substrate capacity for load-bearing applications.

Contact CRL for ordering
