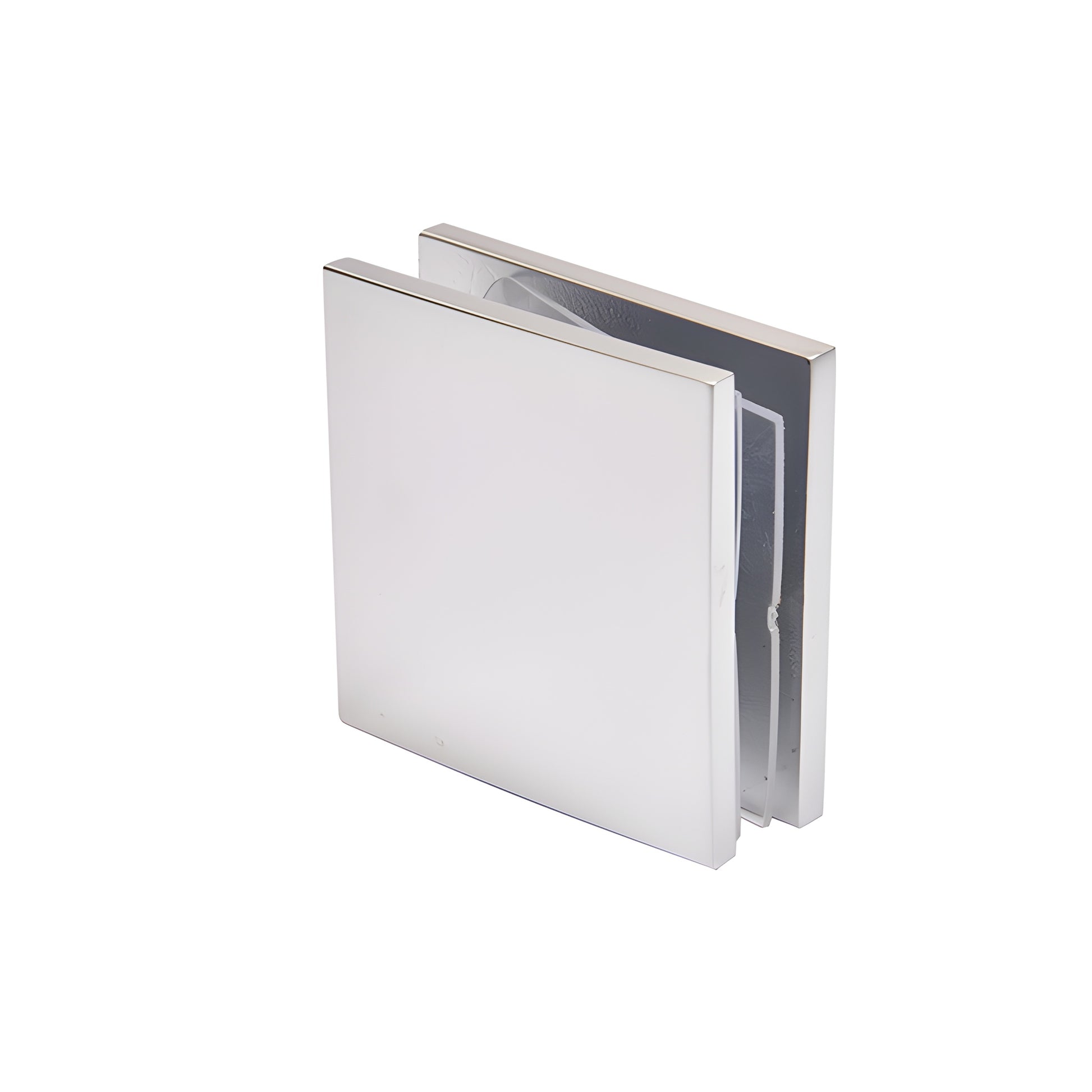

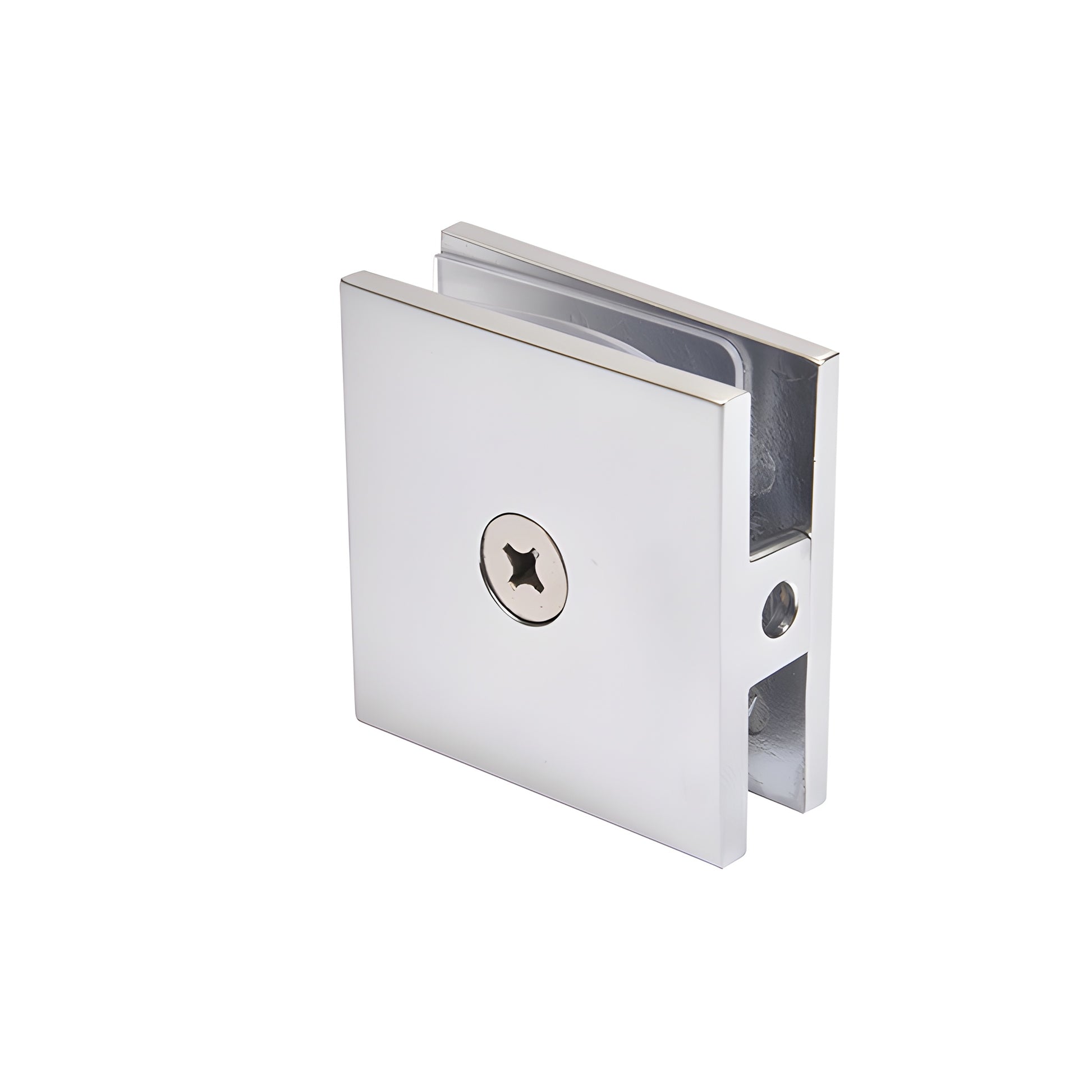

CRL Satin Chrome Square Hole-in-Glass U-Clamp for Fixed Glass Panels
CRL Satin Chrome Square Hole-in-Glass U-Clamp for Fixed Glass Panels
Regular price
$23.83 CAD
Regular price
Sale price
$23.83 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCU4SC
Shipping Weight: 8.352 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.352 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Chrome
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Replacement Clamping Screw
P615SC
Overview
- For 3/8" to 1/2" (10 to 12 mm) glass
- Glass fabrication: 5/8" or 3/4" (16 or 19 mm) hole in panel
- Used to secure fixed panels of glass for frameless shower enclosures
- Solid brass construction for corrosion resistance and durability
- Helps achieve an "all-glass" look as an alternative to traditional U-channel
- Glass fabrication required to accommodate clamps; use monolithic tempered glass
CRL Square Wall Mount Clamp (Hole-in-Glass Style) — SKU: SCU4SC mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-tight seal for frameless shower enclosures and other fixed glass installations.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Ideal for frameless shower enclosures and fixed glass partitions—order the SCU4SC solid brass hole-in-glass square clamp now to complete your all-glass installation.
Specifications
Templates
